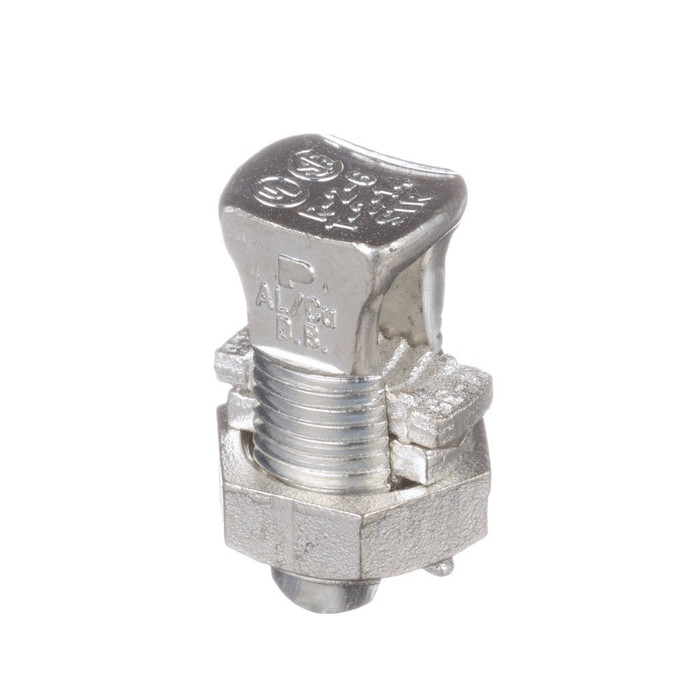

Panduit Pan-Lug SBCT Series Copper Split Bolt Mechanical Connector

Panduit Pan-Lug SBCT Series Copper Split Bolt Mechanical Connector

(No reviews yet) Write a Review

Model: SBCT2-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Panduit Pan-Lug SBCT2-C Split Bolt Mechanical Connector, Copper

The Panduit Pan-Lug™ SBCT2-C is a copper, tin-plated split bolt mechanical connector (type SBCT) built for dual-rated copper-to-aluminum splices. It accepts conductors from #6 STR to #2 STR AWG (2 AWG copper conductor size) and carries a Maximum Voltage rating of 600V with a UL Temperature Rating of 90°C, making it a dependable choice for splicing and tapping conductors in commercial and industrial electrical systems.

Key Features

  • Conductor Range: Accepts #6 STR – #2 STR AWG conductors (2 AWG copper conductor size) for flexible field splicing.
  • Durable Construction: Copper base material delivers strong conductivity and long service life.
  • Connection Type: Copper to Aluminum dual-rated connection for versatile splice and tap applications.
  • Finish: Tin-plated finish helps resist corrosion and oxidation at the connection point.
  • Voltage Rating: Maximum Voltage of 600V supports standard power distribution circuits.
  • Temperature Rating: UL Temperature Rating of 90°C suits demanding electrical environments.
  • Split Bolt Design: Type SBCT mechanical split bolt design allows secure, reusable conductor splicing without soldering.

Certifications & Compliance

  • UL Temperature Rated (90°C)
  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • REACH Status: N
  • Maximum Voltage (V): 600
  • UL Temperature Rating (°C): 90
  • Mercury Content Indicator: N
  • Std Ctn Qty: 0
  • Product Segment: IEI
  • Pallet Quantity: 0
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 100
  • UOM EA PK: PK
  • Hazardous Material Flag: N
  • Any Reason Not to Sell: N

Typical Applications

  • Commercial and Industrial Electrical Splicing
  • Copper-to-Aluminum Conductor Transitions
  • Panelboard and Switchgear Connections
  • Grounding and Bonding Conductor Splices
  • Power Distribution Tap Connections

Why Panduit?

Panduit's Pan-Lug SBCT2-C split bolt connector combines a copper base material with a tin-plated finish and a 600V, 90°C UL Temperature Rating to deliver a reliable, code-compliant mechanical splice for professional electrical installations. The dual-rated copper-to-aluminum connection type and RoHS-compliant construction make it a practical, durable choice for demanding commercial and industrial wiring work.

"

Manufacturer Resources

Product Specs

Product Type:
Split Bolt Connector
Min. Order UOM:
Piece
Base Material:
Copper
Std. Pkg. UOM:
Piece
Std Ctn Qty:
0
Department:
Electrical
UOM EA PK:
PK
Sub Brand:
Pan-Lug™
Standard Carton Weight Pounds:
0.0000
Mercury Content Indicator:
N
Any Reason Not to Sell:
N
Pallet Volume:
0.000000
Product Group:
Wire Connectors & Terminals
Pallet Quantity:
0
Product Segment:
IEI
RoHS Compliant:
Compliant
ARRA Compliant:
Y
Hazardous Material Flag:
N
Min Order Qty:
1.0000
Pallet Weight:
0.0000
Maximum Voltage (V):
600
UL Temperature Rating (°C):
90
Country of Origin:
Brazil
REACH Status:
N
Connection Type:
Copper to Aluminum
Finish/Coating:
Tin-Plated
Standard Carton Volume Ft3:
0.0000
Product Subgroup:
Wire Connectors

Panduit SBCT2-C – Frequently Asked Questions

1) Can a Panduit Pan-Lug SBCT split bolt connector be used to splice copper to aluminum?
Yes. The Pan-Lug SBCT split bolt is dual rated for copper to aluminum connections, so it can be used on a transition splice between an aluminum feeder and a copper conductor. The body is copper with a tin plated finish, which is what makes the aluminum contact acceptable and helps resist oxidation at the joint.
2) What conductor sizes do the Panduit SBCT split bolt connectors cover?
Two sizes are offered: the SBCT2-C sized for 2 AWG copper, which accepts #6 STR through #2 STR conductors, and the SBCT1/0-L sized for 1/0 AWG. Pick the connector by the largest conductor going into the splice, not the smallest.
3) Is a 600V split bolt connector rated for a 480V three phase feeder tap?
Yes. The Pan-Lug SBCT carries a maximum voltage rating of 600V, which covers 480Y/277V and 208Y/120V power distribution circuits. It also carries a UL temperature rating of 90 degrees C, so it works with 90 C rated conductor insulation such as THHN.
4) Does the Panduit SBCT split bolt need taping or insulating after it is installed?
It is a bare mechanical connector, not an insulated device. The tin plated copper body is left exposed after torquing, so the splice has to be re-insulated to the level of the conductor insulation, typically with rubber splicing tape and a vinyl overwrap or a suitable insulating cover. That applies on both the 2 AWG and 1/0 AWG sizes.
5) Can I use these split bolts on grounding and bonding conductor splices?
Yes, grounding and bonding splices are one of the listed applications for the Pan-Lug SBCT, along with panelboard and switchgear connections and power distribution taps. Size it by the ground conductor: SBCT2-C for 2 AWG, SBCT1/0-L for 1/0 AWG.
6) Is the Panduit SBCT connector ARRA and RoHS compliant for a government or institutional job?
Yes on both. The Pan-Lug SBCT is ARRA compliant and RoHS compliant, with no mercury content and no hazardous material flag. Country of origin is Brazil, which is what a Buy American review will want on file.
7) Split bolt or compression connector for an underground or wet location splice?
A split bolt like the Pan-Lug SBCT is a mechanical, reusable connection that can be taken apart and re-landed, which is why it suits field splicing and taps in commercial and industrial work without soldering. A compression or irreversible connector is the better call where the splice will be direct buried or submerged and cannot be re-torqued. If you do use the SBCT in a damp area, remember the copper body is only tin plated, not sealed, and the joint depends on your insulation and sealing method.
8) Do I have to buy Panduit SBCT split bolts by the box, or can I order a few pieces?
They can be bought individually. Minimum order is 1 piece, with the order unit of measure set as piece, so an MRO stockroom topping up a couple of sizes is not forced into a full standard package of 100.
