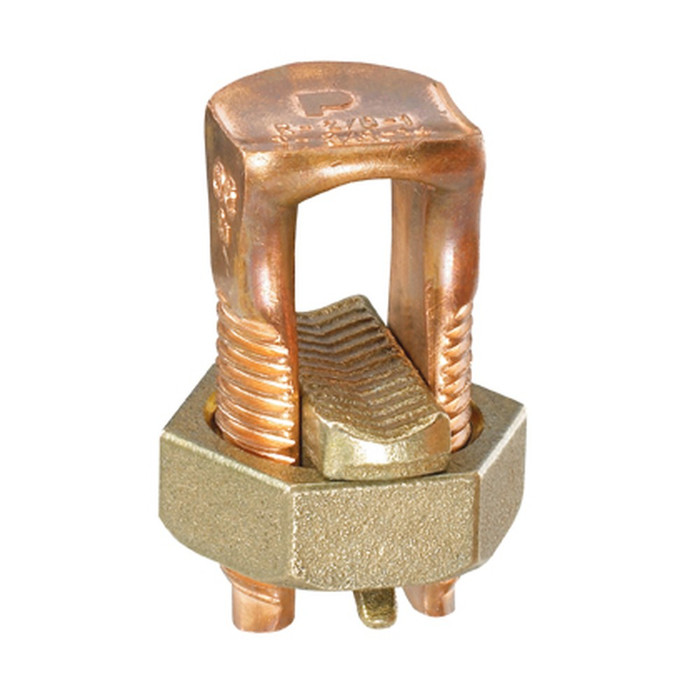

Panduit Pan-Lug SBC1/0-L Mechanical Split Bolt Connector, Copper

Panduit Pan-Lug SBC1/0-L Mechanical Split Bolt Connector, Copper

(No reviews yet) Write a Review

Model: SBC1/0-L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$24.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug SBC1/0-L Mechanical Split Bolt Connector, Copper

The Panduit Pan-Lug SBC1/0-L is a mechanical split bolt connector made from high-strength copper alloy, engineered for premium electrical and mechanical performance across a wide conductor range. Rated for use with 4 AWG through 1/0 AWG copper conductors and listed for up to 600V at a 90°C temperature rating, this connector delivers a secure copper-to-copper connection while helping minimize inventory requirements. An internal pressure bar assures a solid connection across the full range of supported conductor combinations, giving each lug premium wire pull-out strength for demanding electrical installations.

Key Features

  • Conductor Range: Accommodates 4-1/0 AWG copper conductors for wide wire-range-taking capability that reduces the need for multiple connector sizes.
  • Durable Construction: Built from high-strength copper alloy for premium electrical conductivity and mechanical durability.
  • Connection Type: Copper-to-copper mechanical split bolt design for a secure, dependable termination.
  • Internal Pressure Bar: Provides a secure connection across the full range of supported conductor combinations, assuring premium wire pull-out strength.
  • Voltage Rating: Rated for use up to 600V for demanding electrical distribution applications.
  • Temperature Rating: UL temperature rated to 90°C for reliable performance under load.

Certifications & Compliance

  • UL Listed to UL 467 and UL 486
  • CSA Certified for use up to 600V
  • RoHS Compliant

Technical Specifications

  • REACH Status: N
  • Maximum Voltage (V): 600
  • UL Temperature Rating (°C): 90
  • Mercury Content Indicator: N
  • Std Ctn Qty: 0
  • Product Segment: IEI
  • Pallet Quantity: 0
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 50
  • UOM EA PK: PK
  • Std Package Width In: 4.4
  • Hazardous Material Flag: N
  • Any Reason Not to Sell: N
  • Product Group: Wiring Devices

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Copper Conductor Splicing and Tapping
  • Panelboard and Switchgear Wiring
  • Grounding and Bonding Connections
  • Renovation and New Construction Electrical Work

Why Panduit?

Panduit's Pan-Lug SBC1/0-L split bolt connector combines high-strength copper alloy construction with an internal pressure bar design to deliver a secure, code-compliant connection across a wide conductor range. Backed by UL listing to UL 467 and UL 486 and CSA certification for use up to 600V, it's built for electrical professionals who need dependable, RoHS-compliant performance on demanding copper conductor terminations.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0486
Standard Package Weight Pounds:
7.7000
REACH Status:
N
Maximum Voltage (V):
600
Base Material:
Copper
Std. Pkg. UOM:
Piece
Std Package Length In:
8.15
UL Temperature Rating (°C):
90
Country of Origin:
Brazil
Standard Carton Volume Ft3:
0.0000
Std Package Length MM:
207.01
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Std Ctn Qty:
0
Product Segment:
IEI
Product Type:
Split Bolt Connector
Std Package Width MM:
111.76
Pallet Quantity:
0
Std Package Height In:
3.45
Connection Type:
Copper to Copper
Standard Carton Weight Pounds:
0.0000
Overall Height (In.):
1.55
Std Package Height MM:
87.63
Min Order Qty:
1.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983627257
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
50
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Width In:
4.4
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
0.0000
Overall Height (mm):
39.4
Copper Conductor Size:
4-1/0 AWG
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Subgroup:
Wire Connectors

Panduit SBC1/0-L – Frequently Asked Questions

1) What wire sizes does the Panduit SBC1/0-L split bolt connector take?
The SBC1/0-L handles copper conductors from 4 AWG up to 1/0 AWG, and it will take mixed combinations within that range thanks to the internal pressure bar that clamps across the run and tap. That one part covers four wire sizes, so you can stock a single connector instead of several for typical branch and feeder tap work.
2) Is the Panduit SBC1/0-L split bolt rated for grounding and bonding connections?
Yes. It is UL Listed to UL 467, the grounding and bonding equipment standard, as well as UL 486, and CSA Certified for use up to 600V. That covers ground conductor splices and bonding taps in copper as well as general power terminations.
3) Will a split bolt connector work in a 90 degree C rated circuit?
The Pan-Lug SBC1/0-L carries a UL temperature rating of 90 degrees C and a 600V maximum, so it matches THHN/THWN-2 conductor terminations at their 90 C insulation rating. Ampacity on the circuit itself is still governed by whatever the terminations at the equipment are rated for.
4) How much room do I need in the box or gutter for a Panduit SBC1/0-L?
Overall height on the SBC1/0-L is 1.55 inches (39.4 mm). Remember the connector still has to be taped or covered with an insulating boot after it is made up, so allow clearance around that height for the wrap and for bending radius on 1/0 conductors in a pull box or wireway.
5) Does the Panduit split bolt come insulated or do I have to tape it?
It ships bare. The SBC1/0-L is a mechanical copper alloy split bolt with an internal pressure bar, and nothing insulating is part of the connector, so the splice has to be insulated in the field with tape or a split bolt cover rated for the circuit voltage of up to 600V.
6) Does the Panduit SBC1/0-L meet Buy American and RoHS requirements for a government job?
It is flagged ARRA compliant and RoHS compliant, with no mercury content and no hazardous material flag. Country of origin is Brazil, which matters if your contract carries a domestic-manufacture clause rather than an ARRA-style requirement.
7) Is a split bolt the right choice for tapping a feeder, or should I use a compression connector?
A split bolt like the Pan-Lug SBC1/0-L is the mechanical option: you thread the run and tap conductors in, tighten the nut, and the internal pressure bar holds both without a crimp tool or die set. That makes it the practical pick for renovation work, panelboard and switchgear wiring, and anywhere you may need to open the splice later. Compression connectors are the alternative when you want a permanent, tool-verified termination and have the press on site. Either way, this one is limited to copper at 600V and 4 through 1/0 AWG.
8) Can I buy one Panduit SBC1/0-L or do I have to take a full box?
Minimum order is 1 piece, so you can pick up a single connector for a service call. The manufacturer's standard package is 50 pieces if you are buying for a job in quantity.
