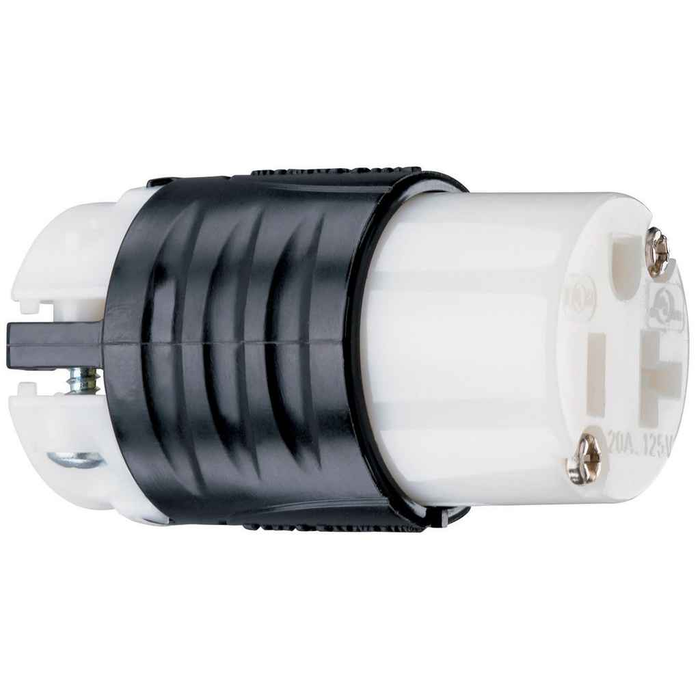

Pass & Seymour PS5369X 20A, 125V Extra-Hard Use Spec-Grade Connector, Nylon Housing

Pass & Seymour PS5369X 20A, 125V Extra-Hard Use Spec-Grade Connector, Nylon Housing

(No reviews yet) Write a Review

Model: PS5369-X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$95.94
$53.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour PS5369X 20A, 125V Extra-Hard Use Spec-Grade Connector, Nylon Housing

The Pass & Seymour PS5369X is a 20A, 125V Extra-Hard Use Spec-Grade Connector finished in black and white, built for demanding cord-connection applications where reliability and durability matter. It features a nylon housing for impact and chemical resistance, heavy-duty brass alloy blades and contacts for excellent conductivity, and is cULus Listed and Federal Spec Listed for use in professional electrical environments.

Key Features

  • Rated Performance: 20A, 125V rating suited for extra-hard use cord-connector applications.
  • Durable Construction: Nylon housing provides impact and chemical resistance for long service life.
  • Cord Retention: Rugged two-piece cord grip provides more uniform cord retention.
  • Contaminant Protection: Internal dust shield keeps terminals free of contaminants.
  • Tri-Drive Assembly Screws: Standard on all Specification Grade plugs and connectors for secure assembly.
  • Ready-to-Wire: Unit arrives completely ready-to-wire, cutting installation time significantly.
  • Recessed Cord-Grip Screws: Protects installers against screwdriver head slippage during assembly.
  • High-Conductivity Contacts: Heavy-duty brass alloy blades and contacts resist heat rise and provide excellent conductivity.
  • Terminal Layout: All 3-wire terminals located on the same plane, allowing quick wire termination from any angle.

Certifications & Compliance

  • Federal Spec Listed
  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Length: 2.638 in
  • Product Line: Pass & Seymour
  • Product Width: 1.516 in

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Extra-Hard Use Cord Connections for Portable Equipment
  • Manufacturing and Industrial Facility Wiring
  • Renovation and New Construction Electrical Work
  • Cord Sets Requiring Spec-Grade Reliability

Why Pass & Seymour?

Pass & Seymour builds the PS5369X with a nylon housing, brass alloy contacts, and a rugged two-piece cord grip designed to hold up under extra-hard use conditions. Backed by Federal Spec and cULus listings, this Spec-Grade connector delivers the code-compliant, dependable performance that professional electricians rely on for demanding cord-connection work.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Straight Blade Connector
Product Material:
Nylon
Voltage Rating:
125V
Amperage Rating:
20A
Listing:
cULus
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors
Product Length:
2.638 in
Product Color:
Black
Product Width:
1.516 in

Pass & Seymour PS5369-X – Frequently Asked Questions

1) Will a 20A 125V connector like the PS5369X accept a 15A plug?
Yes. The PS5369X is a 2-pole, 3-wire 125V device rated 20A, and a NEMA 5-20R style connector takes both 5-15P and 5-20P plugs because the 20A face has the T-slot. What it won't do is go on a 250V circuit or on anything drawing more than 20 amps.
2) Is the PS5369X UL listed for commercial and federal jobs?
It's cULus Listed, so it carries both US and Canadian listing, and it's also Federal Spec Listed, which is what a government or institutional spec sheet usually calls for on cord-connection devices.
3) Can the Pass & Seymour PS5369X be used in a patient care area?
No. The PS5369X is a spec-grade 20A, 125V connector; it is not a hospital grade device. For patient care spaces where hospital grade is required, use a hospital grade connector such as the Leviton 8319-C, a hospital grade NEMA 5-20R connector in black, or the Bryant 8269T hospital grade NEMA 5-15R connector for 15A cord sets. Match the NEMA configuration to the cord and the receptacle it mates with.
4) How does the PS5369X hold the cord, and does it come apart for wiring?
A rugged two-piece cord grip clamps the jacket for uniform retention, and the cord-grip screws are recessed so a screwdriver can't slip off the head while you're tightening. The device ships completely ready-to-wire, and all three wire terminals sit on the same plane so you can land the hot, neutral and ground from any angle. Tri-Drive assembly screws are used throughout.
5) Is the PS5369X rated for extra-hard use in a plant environment?
Yes, it's built as an Extra-Hard Use Spec-Grade connector. The housing is nylon, which resists impact and chemical attack, and an internal dust shield keeps the terminals clear of contaminants, which is what matters on a manufacturing floor. Blades and contacts are heavy-duty brass alloy to resist heat rise under load.
6) What else could I use instead of the PS5369X for a 20A 125V cord connector?
The closest alternative ZenSupply stocks is the Leviton Industrial Grade straight blade connector, 3-wire 2-pole, 125V 20A, the same electrical rating in an industrial grade body. If your cord set is only 15A, the Eaton Arrow Hart Severe Duty connector is 15A 125V NEMA 5-15R, but a 15A connector is the wrong choice on a 20A branch circuit feeding 20A equipment.
7) How does the Pass & Seymour PS5369X compare to the Eaton Arrow Hart severe duty connector for rough industrial use?
Both are built for abusive environments but they are not rating equivalents. The PS5369X is an extra-hard use spec-grade connector rated 20A, 125V with a nylon housing for impact and chemical resistance, heavy-duty brass alloy blades, a rugged two-piece cord grip and an internal dust shield, and it carries cULus and Federal Spec listings. The Eaton Arrow Hart device is a severe duty straight blade connector rated 15A 125V in a NEMA 5-15R configuration. If the equipment draws over 15A or the cord is already fitted with a 20A cap, the PS5369X is the one that fits the circuit.
8) Is a hospital grade NEMA 5-20R connector a drop-in substitute for the Pass & Seymour PS5369X?
Electrically it can be, with a caution. The Leviton 8319-C is a hospital grade NEMA 5-20R connector, so it shares the 20A, 125V class the PS5369X is rated for and will mate with the same 5-20 cord cap. The difference is the grade designation: the PS5369X is a spec-grade, extra-hard use device with a nylon housing, and the Leviton is a hospital grade device supplied in a 100-pack. Hospital grade carries additional requirements beyond spec grade, so substituting upward usually satisfies a spec-grade callout while a spec-grade part will not satisfy a hospital grade callout.
9) What is the Pass & Seymour part number and color for ordering the spec-grade 20A connector?
Order it as PS5369X, manufacturer part number PS5369-X, from Pass & Seymour. It's finished in black and white and made in Mexico. One model covers the line, so there are no finish or configuration options to specify.
10) How big is the PS5369X body? I need to know if it clears a tight equipment opening.
The connector body measures 2.638 inches in length by 1.516 inches in width, so it's a compact in-line device for cord sets rather than a large pendant style housing.
