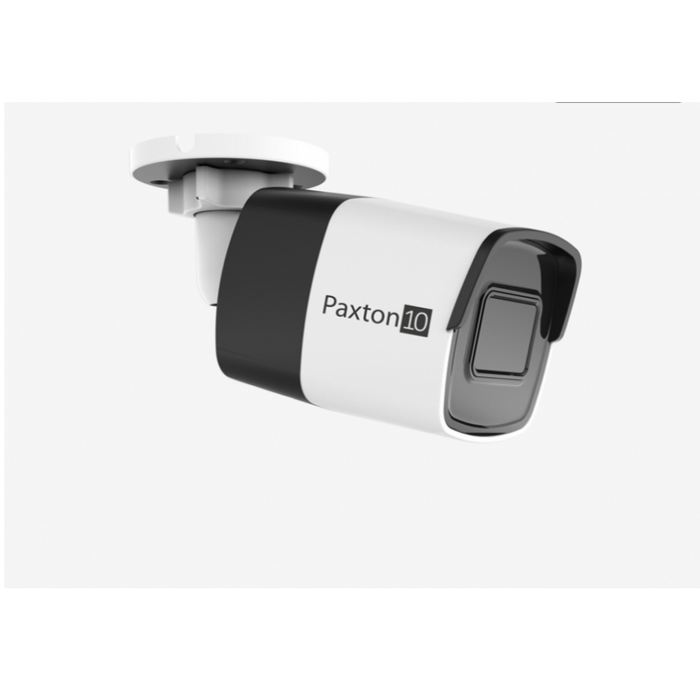

Paxton10, Core Series, Mini Bullet Camera, 4MP Ultra-Low Light Sensor, 2560 x 1440, 98ft IR Range
The Paxton10 camera range are designed specifically to work with the Paxton10 system. As such they offer the most simple, secure and flexible installation possible. No NVR or other hardware is required as video is processed on the camera and can be stored either on the pre-installed 64GB SD card or sent directly to any network location. The Paxton10 core camera range also features stunning low light performance, inbuilt IR, QHD resolution, PoE power and comes with Paxton’s 5 year no hassle warranty.
Features:
- 4MP ultra-low light sensor capable of high-resolution recording (2560 x 1440)
- 64GB high performance SD Card
- IP67 and IK10 rating
- Mountable on either wall or ceiling
- Compact Size
- All metal construction
- 30m / 98ft IR range
- 120dB Wide Dynamic Range
- 12VDC or PoE (af)
- 0.01 lux @ F1.2
- Fixed 2.8mm/7/64" focal length
Specifications:
- Video Streams - Main - Defaults:
- High:
- Resolution: 2560 x 1440
- Frames per second: 20fps
- Max bit rate: 4096kbps
- Medium:
- Resolution: 1080p
- Frames per second: 20fps
- Max bit rate: 3072kbps
- Low:
- Resolution: 720p
- Frames per second: 15fps
- Max bit rate: 1536kbps
- Substream:
- Resolution: 360p
- Frames per second: 10fps
- Max bit rate: 512kbps
- Video compression: H264
- Day/Night mode: Auto
- Electrical:
- Power Consumption: 12VDC @ 0.5A, max 6W; PoE: Max 7.5W
- Operating Voltage: 12v DC ± 25% PoE 802.3af
- Communication: IP
- Hardware:
- Dimensions (W x H x D): 2-3/4"(70mm) x 2-43/64"(68mm) x 6-47/64"(171mm)
- Weight: 400g.
- SD Card: 128GB Max (64GB included)
- Video format: PAL/NTSC
- Image Sensor: 1/2" Progressive scan CMOS
- Focal Length: 2.8mm / 7/64"
- Aperture: F1.2
- FOV: Horizontal field of view: 102°
- 3-Axis Adjustment (manual): Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
- Material: Front Cover: metal, back cover: metal, sun shield: plastic
- Warranty: Paxton 5 year
- Environment:
- Operating temperature: - 22°F to + 140°F
- IP Rating: IP67
- IK Rating: IK10
- Mounting: Wall or ceiling
Manufacturer Resources
Product Specs
- Product Subgroup:
- Cameras
- Subcategory:
- CCTV
- Product Group:
- Access Control
- Product Type:
- Cameras
- Series:
- Paxton10
- Warranty:
- Paxton 5 year
- Product Voltage:
- 12VDC
- Mounting Method:
- Wall or Ceiling
- Product Height:
- 2-43/64"
- Product Category:
- Access Control
- Product Width:
- 2-3/4"
- Department:
- Door Hardware
- Product Depth:
- 6-47/64"
Paxton Access Inc 010-911-US – Frequently Asked Questions
1) Do I need an NVR or recorder to use the Paxton10 Core Series mini bullet camera?
No separate NVR or recording appliance is needed. Video is processed on the camera itself and stored either on the pre-installed 64GB SD card or sent directly to any network location. The camera is built specifically to work with the Paxton10 system, so the access control and video sit on the same platform rather than a parallel CCTV head end.
2) How do I power the Paxton10 mini bullet camera, PoE or a local 12V supply?
Either works. It runs on 802.3af PoE (max 7.5W) or 12V DC at 0.5A, max 6W, with the 12V input tolerant to plus or minus 25 percent. On a single cable run, PoE off an af switch or injector is the simplest install; the 12V option is there when you are tying into an existing power supply at the door.
3) Can this Paxton10 bullet camera be mounted outdoors or in a parking garage?
Yes. It carries an IP67 rating against dust and water and an IK10 impact rating, with metal front and back covers and a plastic sun shield. Operating range is -22F to +140F, which covers most exterior and unconditioned garage applications.
4) How much area will one 2.8mm Paxton10 mini bullet cover, and how far does it see at night?
The fixed 2.8mm lens gives a 102 degree horizontal field of view, so it is a wide short-to-mid range lens for entrances, corridors, and loading areas rather than a long lens for reading plates down a driveway. Built-in IR reaches 30m (98ft), and the 4MP ultra-low light sensor works down to 0.01 lux at F1.2, with 120dB wide dynamic range for backlit doorways. The focal length is fixed, so there is no zoom adjustment on install.
5) Will this Paxton camera work on a third-party access control or VMS system?
The Paxton10 camera range is designed specifically to work with the Paxton10 system, and that is the integration the product is built around. If your site is not running Paxton10, this is not the camera to standardize on.
6) How do I aim a bullet camera like this after it is mounted?
Aiming is manual across three axes: pan 0 to 360 degrees, tilt 0 to 90 degrees, and rotation 0 to 360 degrees. That rotation range is what lets you level the horizon when the camera is mounted on a ceiling or on an angled soffit instead of a flat wall.
7) How much recording can I keep on the camera itself, and can I fit a bigger SD card?
A 64GB high performance SD card ships pre-installed, and the slot takes up to 128GB if you want more onboard retention. Recording length depends on the stream you use: the high stream is 2560 x 1440 at 20fps with a 4096kbps cap, medium is 1080p at 20fps and 3072kbps, low is 720p at 15fps and 1536kbps, and the substream is 360p at 10fps and 512kbps, all H264.
