Paxton10, Wireless Connector f...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$290.00
$232.00

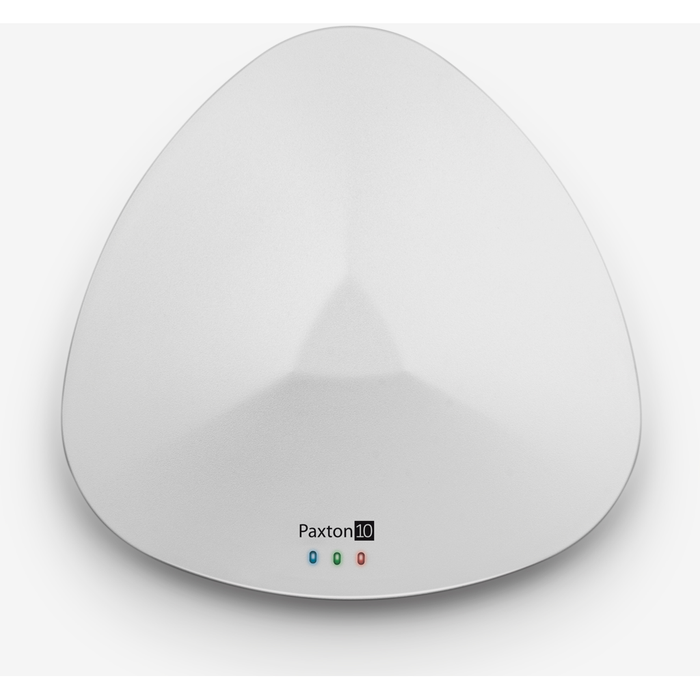

Paxton10, Wireless Connector for PaxLock Pro, 2.4GHz, Z-Wave, Bluetooth, 30VDC, UL, FCC, White

Paxton10, Wireless Connector for PaxLock Pro, 2.4GHz, Z-Wave, Bluetooth, 30VDC, UL, FCC, White

(No reviews yet) Write a Review

Model: 010-592-US
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$290.00
$232.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Paxton10, Wireless Connector for PaxLock Pro, 2.4GHz, Z-Wave, Bluetooth, 30VDC, UL, FCC, White

The wireless connector enables the award winning PaxLock pro to connect to the Paxton10 system. The wireless connector communicates to the PaxLock pro via Bluetooth, and is designed for discreet ceiling or wall mounting.

Features:

  • BLE connectivity.
  • Easy plug and play operation.
  • Health and fault finding LED’s for visual diagnostics.



Specifications:

  • system:
    • Maximum PaxLock Pros per connector: 10
    • Maximum Z-Wave devices per connector: 200
    • Number of cascaded connectors per controller: 3
  • Electrical:
    • Power consumption: 300mA (max)
    • Operating voltage: Powered by RS485, 30VDC
  • Communication:
    • Maximum dataline connection - controller to connector: 100m/328ft
    • Maximum dataline connection - connector to connector: 100m/328ft
    • Data connection: RS485/Paxton10 protocol
    • Wireless: Bluetooth® 2.4GHz
    • Typical Wireless Range (to PaxLock): 15m/50ft
  • Hardware:
    • Dimensions (W x H x D): 6-29/64"(164mm) x 6-27/64"(163mm) x 1-11/32"(34mm)
    • LED’s:
      • Green LED: Health, comms
      • Blue LED: Bluetooth®
      • Red LED: Z-Wave (currently unavailable)
    • Warranty: Paxton 5 year
  • Environment:
    • Operating temperature: + 32°F - + 113°F
    • IP Rating: N/A if used outside, this unit must be mounted in a suitable housing
    • Mounting: Surface only/backbox mounted
  • Certifications: UL 60950-1, FCC 15C

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Wireless
Product Group:
Access Control
Product Type:
Wireless Connector
Series:
Paxton10
Warranty:
Paxton 5 year
Product Voltage:
30VDC
Mounting Method:
Surface Only/Backbox Mounted
Product Height:
6-27/64"
Product Category:
Access Control
Product Width:
6-29/64"
Department:
Door Hardware
Product Depth:
1-11/32"

Paxton Access Inc 010-592-US – Frequently Asked Questions

1) How far can a PaxLock Pro be from the Paxton10 wireless connector?
Typical wireless range to a PaxLock is 15m/50ft. That is the number that decides your mounting position: doors further out than that need a second connector rather than a bigger antenna. The connector itself can sit up to 100m/328ft of RS485 cable from the controller, and connector to connector is also 100m/328ft, so you have plenty of cable budget to place each unit near its group of doors.
2) Can the Paxton10 wireless connector be mounted outdoors or in a parking garage?
Not on its own. It is surface only or backbox mounted, with no IP rating, so any outdoor location needs it inside a suitable housing. Operating temperature is +32F to +113F, which also rules out unheated spaces that drop below freezing. Indoors it is built for discreet ceiling or wall mounting above the door line.
3) How is the Paxton10 wireless connector powered, and does it need its own power supply at the ceiling?
No local supply needed. The connector is powered over the RS485 run at 30VDC, drawing 300mA maximum. That means a single cable from the controller carries both data and power, which is what makes ceiling placement practical without pulling a separate power drop to each unit.
4) Will the Paxton10 wireless connector run my Z-Wave devices?
Z-Wave capacity is specified at up to 200 devices per connector, but the Z-Wave function is currently unavailable, which is why the red Z-Wave LED is noted that way. Treat it as a Bluetooth link to PaxLock Pro locks today and don't design a Z-Wave rollout around it.
5) I have 25 PaxLock Pro doors on one floor. How many wireless connectors do I need?
Three at minimum on lock count alone, since each connector handles 10 PaxLock Pros. But the real driver is usually the 15m/50ft wireless range, so lay out connectors by which doors sit within that radius rather than by dividing 25 by 10. A single controller supports 3 cascaded connectors, so a 25 door floor is at the edge of one controller's connector chain.
6) What size backbox or ceiling space do I need for a Paxton10 wireless connector?
Plan for a unit measuring 6-29/64 inches wide by 6-27/64 inches high by 1-11/32 inches deep. It is close to square in face and just over an inch and a third deep, so it fits a shallow surface position on a wall or ceiling tile without a deep chase.
7) How do I tell on site whether the Paxton10 wireless connector is talking to the controller and the locks?
Three LEDs give you the diagnosis without a laptop. Green covers health and comms back to the controller, blue covers the Bluetooth link out to the locks, and red is Z-Wave, which is currently unavailable. So a dead green means look at your RS485 run, and a dead blue means look at lock pairing or distance.
8) Is the Paxton10 wireless connector UL listed for an institutional install?
It carries UL 60950-1 and FCC 15C. Those are the two certifications stated for the unit, covering equipment safety and the radio emissions side of the 2.4GHz Bluetooth link.
9) What finish does the Paxton10 wireless connector come in?
White only, which suits the ceiling and wall positions it is meant for. There is no other finish option on the unit, so in an exposed location where appearance matters, plan on painting the housing rather than specifying a different color.
