Pemko Pemko 332 Standard Perimeter Gasketing PMK-332

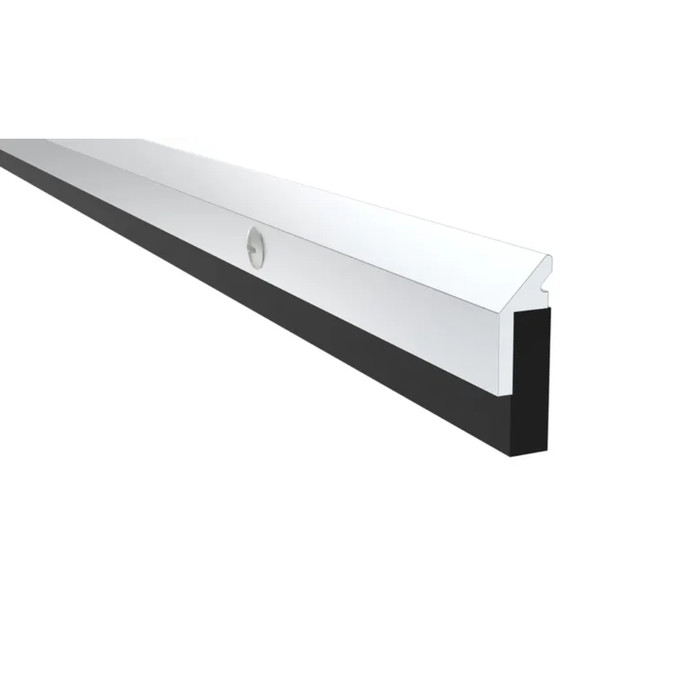

Pemko 332 Standard Perimeter Gasketing with EPDM Insert - 9/16" x 13/16" Aluminum Weatherstrip

(No reviews yet) Write a Review

Model: 332CR 36X84

In Stock (leaves warehouse same day if ordered before 3pm ET)

$423.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 332 Standard Perimeter Gasketing with EPDM Insert - 9/16"; x 13/16"; Aluminum Weatherstrip

Professional Rigid Jamb Weatherstrip Solution

The Pemko 332 Standard Perimeter Gasketing provides reliable weathersealing for commercial door applications with its rigid aluminum construction and flexible EPDM insert. This weatherstrip measures 9/16"; wide by 13/16"; high and is designed to seal gaps up to the depth of its seal, effectively handling openings with 1/16"; gaps while accommodating larger variations. The system includes either Sponge EPDM (R) insert item number ER1BL or Sponge Silicone (S) insert item number SR1BL for optimal sealing performance.

Professional Features & Benefits

  • Precise Dimensions: 9/16"; width by 13/16"; height provides optimal fit for standard commercial door frame applications.
  • Flexible Gap Accommodation: Seals gaps up to the depth of its seal while maintaining effective weatherproofing on openings with 1/16"; gaps.
  • Durable Aluminum Construction: Rigid aluminum substrate provides long-lasting structural integrity and resistance to environmental factors.
  • Dual Insert Options: Available with Sponge EPDM insert (ER1BL) or Sponge Silicone insert (SR1BL) for application-specific sealing requirements.
  • Comprehensive Testing Certifications: Air infiltration tested, sound tested to ASTM E90, smoke tested to UL1784, and fire rated UL10C positive pressure for code compliance.
  • Environmental Certification: GREENGUARD Gold Certified for low chemical emissions, supporting healthy indoor air quality.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in commercial applications.
  • Compatible Accessories: Optional components available including ER1BL and SR1BL insert options for extended configurations.

Technical Specifications

  • ANSI/BHMA: Air Infiltration Tested, Sound Tested ASTM E90, BHMA Certified, Smoke Tested UL1784, Fire Rated UL10C Positive Pressure, cUL Listed 4L10, GREENGUARD Gold Certified
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Dimension: W: 9/16", H: 13/16";
  • Product Group: Door Trim and Accessories
  • Product Model: 332
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Substrate: Aluminum
  • Product Type: Gaskets
  • Subcategory: Gaskets & Weatherstripping
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko weatherstripping products deliver professional-grade reliability with aluminum construction and comprehensive testing certifications including fire rating UL10C positive pressure and GREENGUARD Gold environmental certification. 5 Year warranty coverage provides added confidence for demanding commercial applications where dependable weatherproofing and code compliance are essential.

Product Specs

Warranty:
5 Year
Subcategory:
Gaskets & Weatherstripping
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gaskets
ANSI/BHMA:
Air Infiltration Tested, Sound Tested ASTM E90, BHMA Certified, Smoke Tested UL1784, Fire Rated UL10C Positive Pressure, cUL Listed 4L10, GREENGUARD Gold Certified
Commercial/Residential:
Commercial
Product Model:
332
Product Dimension:
W: 9/16", H: 13/16"
Product Category:
Door Trim and Accessories
Product Substrate:
Aluminum
Department:
Door Hardware

Pemko 332CR 36X84 – Frequently Asked Questions

1) What size gap will the Pemko 332 perimeter gasketing seal on a commercial door frame?
The 332 seals openings with roughly 1/16 inch gaps, and the EPDM insert compresses to close gaps up to the depth of the seal. The extrusion itself is 9/16 inch wide by 13/16 inch high, so you need that much clear face on the stop for the housing to sit flat.
2) Is Pemko 332 gasketing fire rated for use on a labeled door opening?
Yes. The 332 is fire rated to UL10C positive pressure and cUL Listed 4L10, and it is also smoke tested to UL1784, which is what an inspector looks for on a labeled smoke and fire door in a healthcare or education corridor.
3) How much Pemko 332 do I need to gasket one single door opening?
A single 3 foot by 7 foot opening takes the 36 inch x 84 inch set, which gives you one head piece and two jamb legs. Pairs of doors take the 72 inch x 84 inch set, covering a 6 foot head and both jambs. Both sets ship in the 13/16 inch profile height. The gasketing seals the perimeter only, so the threshold and door bottom are separate items.
4) Can I replace just the rubber insert in Pemko 332 weatherstrip without pulling the aluminum off the frame?
Yes, and that is the point of the design. The insert is a separate replaceable part: ER1BL for the sponge EPDM and SR1BL for the sponge silicone. When a seal takes a beating from carts or gets torn, you pull the old insert out of the aluminum retainer and feed a new one in, leaving the housing and its fasteners alone. For a property manager running a lot of doors, that is the difference between a five minute fix and re-prepping a frame.
5) Should I order the sponge silicone or the sponge neoprene insert in the Pemko 332?
Both are stocked in the 332. Sponge silicone holds up better against heat and stays flexible in temperature swings, so it is the usual call on doors near boiler rooms, kitchens, or exterior openings with sun load. Sponge neoprene handles standard interior and moderate exterior corridor duty. Either insert seats in the same 9/16 inch by 13/16 inch aluminum housing, so the frame prep does not change with your choice.
6) Will Pemko 332 gasketing help with sound and drafts between offices?
It is tested on both counts. The 332 is air infiltration tested and sound tested to ASTM E90, so it addresses drafts and speech privacy at the same time. The aluminum carrier is rigid rather than adhesive-mounted, which is what keeps the seal in position on a door that gets cycled hard all day.
7) Does Pemko 332 weatherstripping meet low-emission requirements for a school or hospital project?
The 332 is GREENGUARD Gold Certified for low chemical emissions, which is the certification specified on healthcare and education work where indoor air quality is written into the project requirements. That certification applies to the gasketing as supplied, insert included.
8) Is Pemko 332 perimeter gasketing rated for commercial use or is it residential weatherstrip?
Strictly commercial. The 332 is a BHMA certified, rigid aluminum jamb weatherstrip built for hollow metal and commercial wood frame openings in offices, schools, hospitals, retail, warehouses, multi-tenant residential, and government buildings. It is not the foam or vinyl tape product sold for houses.
