Pemko 412 Series Surface Mounted Automatic Door Bottom with EPDM Insert and Fire Rating

Pemko 412 Series Surface Mounted Automatic Door Bottom with EPDM Insert and Fire Rating

(No reviews yet) Write a Review

Model: 412CRL-30
$89.46
$76.61
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$89.46
$76.61
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 412 Series Surface Mounted Automatic Door Bottom with EPDM Insert and Fire Rating

Professional Automatic Door Sealing Solution

The Pemko 412 Series Surface Mounted Automatic Door Bottom provides comprehensive sealing against light, sound, smoke, and fire when doors are closed. This handed door bottom features aluminum construction with H: 2";, W: 9/16"; dimensions and includes EPDM insert for reliable sealing performance. Custom cut to length with installation hardware included, this door bottom meets multiple ASTM and UL testing standards including UL10C fire rating and GREENGUARD Gold certification for commercial applications.

Professional Features & Benefits

  • Precise Dimensions: H: 2";, W: 9/16"; aluminum casing designed for surface mounting on architectural doors with optimal clearance requirements.
  • Comprehensive Testing Certifications: Air infiltration tested to ASTM E-283-04, sound tested to ASTM E90-2009, smoke tested to UL1784, and fire rated to UL10C positive pressure standards for code compliance.
  • EPDM Insert Technology: High-quality EPDM rubber insert delivers reliable sealing with excellent weather resistance and durability for long-term performance.
  • Durable Aluminum Construction: Professional-grade aluminum substrate provides long-lasting performance in demanding commercial applications.
  • Custom Length Configuration: Door bottom is custom cut to required length for precise fit and optimal sealing performance on various door widths.
  • GREENGUARD Gold Certification: Meets strict chemical emissions standards for healthy indoor air quality in commercial environments.
  • Complete Installation Package: Includes installation instructions and mounting screws for professional installation.
  • Manufacturer Warranty: 5 Year warranty coverage provides confidence and protection for commercial installations.

Technical Specifications

  • ANSI/BHMA: Air Infiltration Tested �� Tested to ASTM E-283-04 (2012); Sound Tested �� Tested to ASTM E90 �� 2009; Smoke Tested - UL1784; Fire Rated - UL10C - Positive Pressure; Underwriters Laboratory 4L10; GREENGUARD Gold Certified
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • For Use With: Architectural Doors
  • Insert Type: EPDM insert
  • Product Category: Door Trim and Accessories

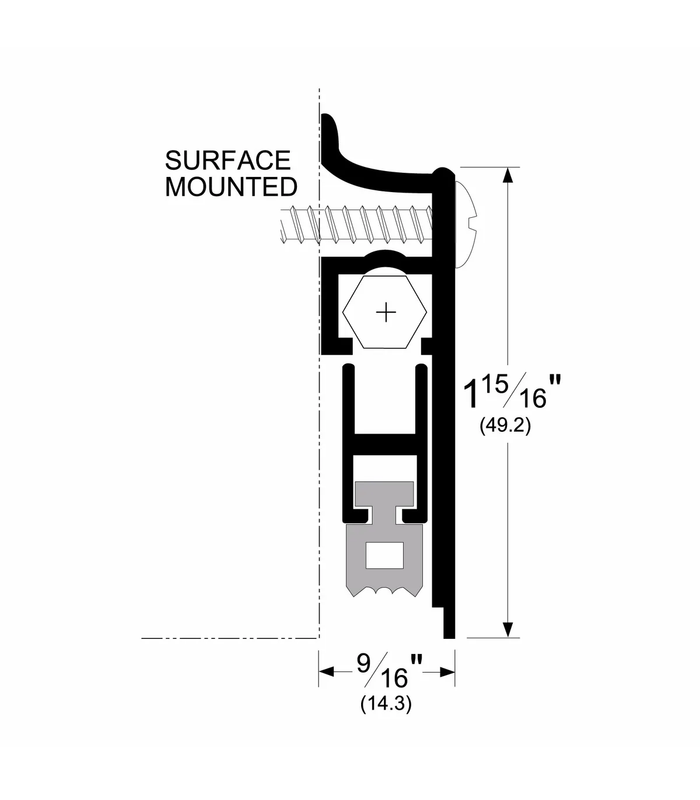

  • Product Dimension: H: 2";, W: 9/16";
  • Product Function: Automatic Door Bottom
  • Product Group: Door Trim and Accessories
  • Product Model: 412
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Substrate: Aluminum
  • Product Type: Door Bottoms
  • Subcategory: Door Bottoms & Door Shoes
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko 412 Series automatic door bottoms deliver professional-grade sealing performance with aluminum construction and comprehensive testing certifications including ASTM E-283-04, ASTM E90-2009, UL1784, and UL10C standards. 5 Year warranty coverage and GREENGUARD Gold certification demonstrate commitment to quality and indoor air quality. Engineered for demanding commercial applications where reliable sealing against light, sound, smoke, and fire is essential.

Product Specs

Insert Type:
EPDM insert
Warranty:
5 Year
Subcategory:
Door Bottoms & Door Shoes
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Bottoms
ANSI/BHMA:
Air Infiltration Tested – Tested to ASTM E-283-04 (2012); Sound Tested – Tested to ASTM E90 – 2009; Smoke Tested - UL1784; Fire Rated - UL10C - Positive Pressure; Underwriters Laboratory 4L10; GREENGUARD Gold Certified
Commercial/Residential:
Commercial
Product Model:
412
Product Function:
Automatic Door Bottom
For Use With:
Architectural Doors
Product Dimension:
H: 2", W: 9/16"
Product Substrate:
Aluminum
Product Category:
Door Trim and Accessories
Department:
Door Hardware
