Professional End Plate Kit for Automatic Door Bottom Systems

The Pemko K411 End Plate Kit provides essential protection and aesthetic finishing for 411 and STC411 automatic door bottom systems on 1-3/8"; doors. This mortise-applied kit includes metal end plates designed to protect the mechanism while delivering a clean, professional appearance with comprehensive ANSI/BHMA certifications including fire rating and sound testing compliance.

Professional Features & Benefits

  • Door Compatibility: Specifically designed for 1-3/8"; doors with 411 and STC411 automatic door bottom systems for precise fit and function.
  • Mechanism Protection: Metal end plates shield internal components from damage while providing clean aesthetic appearance in commercial installations.
  • Plunger Stability: Specialized plunger end plate prevents adjustment rotation, maintaining proper calibration over time.
  • Complete Hardware Package: All necessary fasteners included with color-coordinated finish matching the case color for seamless integration.
  • Professional Installation: Mortise-applied design ensures secure mounting without power tool tightening requirements to prevent over-torquing damage.
  • Series Compatibility: Works exclusively with Pemko 411 Series automatic door bottom systems for guaranteed compatibility and performance.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in commercial applications.
  • Certified Performance: ANSI/BHMA certified with fire rating UL10B and UL10C positive pressure testing for code compliance.

Technical Specifications

  • ANSI/BHMA: Air Infiltration Tested ASTM E-283-04, Sound Tested ASTM E90, BHMA Certified ANSI/BHMA A156.22, Smoke Tested UL 1784, NFPA 105-2013, Fire Rated UL10B, UL10C Positive Pressure
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Sliding Door and Barn Door Hardware
  • Product Group: Sliding Door and Barn Door Hardware
  • Product Model: 280
  • Product Size: 36";
  • Product Subgroup: Door Track
  • Product Substrate: Aluminum
  • Product Type: Door Track
  • Subcategory: Door Track
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko K411 end plate kits deliver professional-grade reliability with metal construction and comprehensive ANSI/BHMA certifications including fire rating and sound testing compliance. 5 Year warranty coverage provides added confidence for demanding commercial applications where dependable door bottom system performance is essential.

Product Specs

Warranty:
5 Year
Subcategory:
Door Bottom Kit
Product Group:
Door Sweeps and Bottoms
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Bottom Kit
ANSI/BHMA:
Air Infiltration Tested ASTM E-283-04, Sound Tested ASTM E90, BHMA Certified ANSI/BHMA A156.22, Smoke Tested UL 1784, NFPA 105-2013, Fire Rated UL10B, UL10C Positive Pressure
Commercial/Residential:
Commercial
Product Model:
280
Product Size:
36"
Product Substrate:
Aluminum
Product Category:
Sliding Door and Barn Door Hardware
Department:
Door Hardware

Pemko K411 – Frequently Asked Questions

1) Will the Pemko K411 end plate kit fit a 1-3/4 inch door?
No. The K411 end plate kit is cut for 1-3/8 inch doors only. On commercial openings, 1-3/4 inches is the standard leaf thickness, so if that is what you are hanging, the K411 is the wrong end plate and you need the 411 series end plate kit sized for that thickness instead. Check the leaf before ordering, because the plates cap the ends of the door bottom and a thickness mismatch will not sit flush in the mortise.
2) Which Pemko automatic door bottoms does the K411 end plate kit work with?
The K411 works with Pemko 411 and STC411 automatic door bottoms, and nothing else. It is a series-specific accessory, not a universal end cap, so it will not adapt to another manufacturer's automatic door bottom or to a different Pemko series.
3) Is the Pemko K411 end plate kit approved for a fire rated door assembly?
Fire rated to UL10B and UL10C positive pressure, and BHMA certified to ANSI/BHMA A156.22. The assembly is also smoke tested to UL 1784 and NFPA 105-2013, sound tested to ASTM E90, and air infiltration tested to ASTM E-283-04, which covers the usual specification callouts on a rated or acoustic opening in a hospital, school, or government building.
4) Do I need an end plate kit at all with a 411 automatic door bottom, or is it optional?
It is an add-on. The 411 and STC411 will operate without it, but the end plates close off the ends of the case so the operating mechanism is shielded, and the mortise pocket reads as a finished detail rather than an open channel. On healthcare, education, and other high traffic openings where the door bottom gets kicked and mopped, that protection is the reason to spec it. The plunger end plate also locks the height adjustment so the setting does not rotate out of calibration after the door has been cycled for a while.
5) Do I have to order screws separately for the Pemko K411 end plates?
No, the fasteners come in the kit, and they are finished to match the door bottom case color so the heads do not stand out against the mortised edge. One install note that matters: seat them by hand. Pemko calls for no power tool tightening on these plates, because over-torquing distorts them.
6) Is the Pemko K411 surface applied or does it get mortised into the door?
Mortise applied. The K411 caps a 411 or STC411 automatic door bottom that is itself let into a pocket routed in the bottom rail, so this is not a kit you screw onto the face of an existing surface mounted sweep. If the door bottom on your opening hangs below the leaf rather than sitting inside it, you are looking at a surface mounted product and the K411 does not apply.

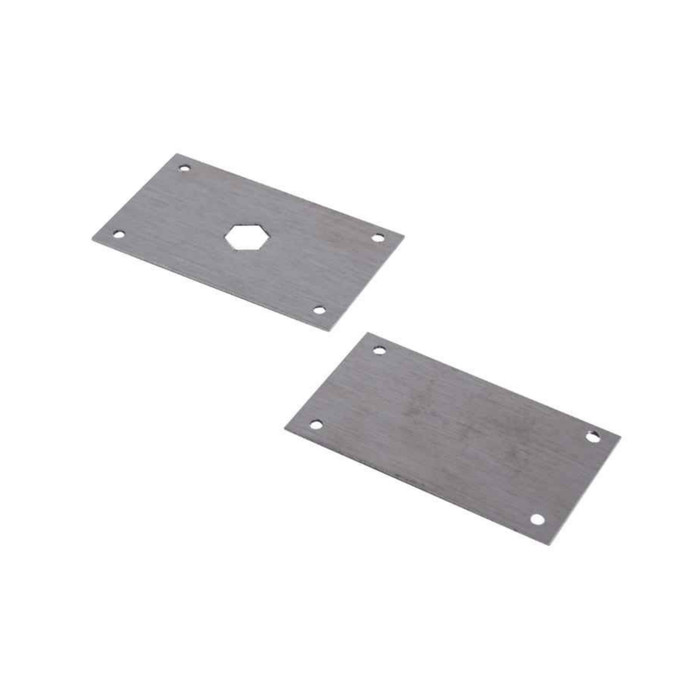

7) Are the Pemko K411 end plates metal or plastic?
Metal, aluminum specifically. That matters on the bottom rail of a door in a warehouse, retail entry, or multi-family corridor, where a plastic end cap is the first thing to crack when a cart or a foot catches it.
