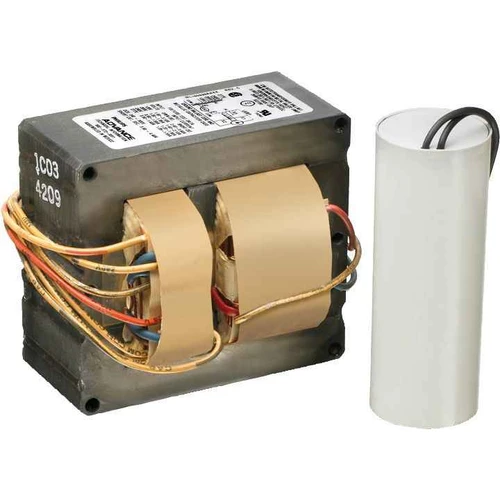

Philips Lighting 913700501309 Core & Coil Magnetic HID Ballast, 70W HPS, S62

Philips Lighting 913700501309 Core & Coil Magnetic HID Ballast, 70W HPS, S62

(No reviews yet) Write a Review

Model: 913700501309
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$249.60
$199.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

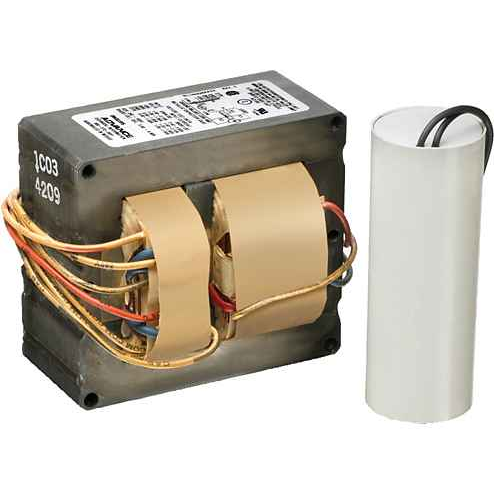

You may also like

Philips Lighting Core & Coil Magnetic HID Ballast, 70W HPS, S62

The Philips Lighting Core & Coil ballast is a magnetic HID ballast engineered for a 70W HPS lamp rated to ANSI code S62. Built with an HX-HPF (high reactance, high power factor) circuit, it operates on multi-tap 120/208/240/277V input at 60Hz, drawing 96W nominal input power at a 0.9 nominal power factor. UL Recognized and rated suitable for outdoor use, this ballast is a dependable replacement for HPS fixtures across commercial and industrial lighting systems.

Key Features

  • Lamp Compatibility: Matched to a 70W HPS lamp, ANSI code S62, with a nominal ballast factor of 1.
  • Magnetic HX-HPF Circuit: High reactance, high power factor design holds wattage deviation within trapezoid limits for stable, consistent lamp performance.
  • Multi-Tap Input Voltage: Operates on 120/208/240/277V at 60Hz, drawing 96W nominal input power at a 0.9 nominal power factor.
  • Matched Components: Ships with a 7 MFD, 280V capacitor and an LI551-H4 ignitor for reliable starting performance.
  • Remote Wiring Capable: Remote wiring configuration is allowed, with a maximum ballast-to-lamp distance of 2' when remotely mounted.
  • Outdoor Rated: Suitable for outdoor use in exterior HID fixture applications.
  • Stranded Lead Wire: Stranded wire construction supports durable, reliable field connections.
  • Compact, Lightweight Build: Net weight of 2.527 kg per piece simplifies fixture retrofits and handling.

Certifications & Compliance

  • UL Recognized
  • UL Insulation Class H(180°C)

Technical Specifications

  • Ansi Code: S62
  • Approval Marks: ULR
  • Circuit Type: HX-HPF
  • Automatic Restart: No
  • Input Voltage: 120/208/240/277 V
  • Input Frequency: 60 Hz
  • Input Power Nom: 96 W
  • Power Factor Nom: 0.9
  • Lamp Type: 70W HPS
  • Rated Lamp Power: 70 W
  • Number Of Lamps: 1 piece/unit
  • Capacitor Value: 7 MFD
  • Capacitor Requirements: 280V
  • Ignitor Catalog Number: LI551-H4
  • Max Ballast Lamp Distance Remote Wiring: 2'
  • Remote Wiring Configuration Allowed: Yes
  • Suitable For Outdoor Use: Yes
  • Ul Insulation Class: H(180°C)
  • Wire Type: Stranded
  • Net Weight Piece: 2.527 kg
  • Ballast Type: Magnetic HID
  • Ballast Factor Nom: 1

Typical Applications

  • HPS Fixture Ballast Replacement
  • Outdoor and Industrial HID Lighting Retrofits
  • Commercial Area and Site Lighting
  • Wall Pack, Floodlight, and Pole Fixture Retrofits
  • Remote-Mount HID Ballast Applications

Why Philips Lighting?

Philips Lighting Core & Coil ballasts are engineered with matched capacitor and ignitor components, UL Recognized construction, and multi-tap voltage flexibility to deliver dependable, code-compliant HID lighting performance for professional installations.

Manufacturer Resources

Product Specs

Ansi Code:
S62
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A7971
Capacitor Catalog Number:
7C070L30RA
Capacitor Diameter Oval Dimensions:
1.25 in
Capacitor Height:
2.75 in
Capacitor Requirements:
280V
Capacitor Temperature Rating:
105°C
Capacitor Value:
7 MFD
Circuit Type:
HX-HPF
Constant Wattage Deviation:
Within Trapezoid
Ean Upc Product:
7.81088E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI551-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
0.81/0.47/0.4/0.35 A A
Input Current Open Circuit :
1.46/0.86/0.73/0.64 A
Input Current Short Circuit :
0.6-0.95/0.35-0.6/0.3-0.5/0.25-0.4 A
Input Current Starting :
0.85/0.51/0.43/0.39 A
Input Frequency:
60 Hz
Input Power Nom :
96 W
Input Voltage:
120/208/240/277 V
Lamp Type:
70W HPS
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
2.527 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
120 V
Open Circuit Voltage Test Volts :
110-130 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A7971001D
Power Factor Nom :
0.9
Rated Lamp Power:
70 W
Recommended Fuse Value:
5/3/2/2 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
2.1-2.45 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
B/C/B/C
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029C
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
3 X 4 (2 LW)
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913700501309 – Frequently Asked Questions

1) What lamp does the Philips 913700501309 core and coil HID ballast run?
It drives a single 70W high pressure sodium lamp, ANSI code S62. Rated lamp power is 70 W and the kit handles one lamp per unit. If your fixture carries a different ANSI designation on its label, the ballast won't start the lamp correctly, so match S62 before ordering.
2) Can this 70W HPS ballast be wired for 120V and 277V on the same job?
It's a quad-tap core and coil, tapped for 120, 208, 240 and 277 V at 60 Hz, so one part number covers all four services. Pick the tap lead at install. Nominal input current runs 0.81 A on 120V, 0.47 A on 208V, 0.40 A on 240V and 0.35 A on 277V, and the recommended fuse follows the same order at 5/3/2/2 A.
3) What comes in the box with this Philips HID core and coil kit, and do I need to buy a capacitor and ignitor separately?
It's a complete core and coil assembly: transformer, capacitor 7C070L30RA (7 MFD, 280V, 1.25 in diameter, 2.75 in high, 105 C rated) and ignitor LI551-H4, also 105 C rated. Nothing else to source for the ballast itself. You still supply the lamp, socket, fixture wiring and fusing.
4) Can I mount this ballast remotely from the fixture in a pole base or a separate enclosure?
Remote wiring is allowed, but the run is short: 2 feet maximum between ballast and lamp. That's fine for a ballast box bolted to the back of a fixture or in the pole head, not for a pole-base mount feeding a luminaire at the top. For longer separations you need a ballast specified for extended remote distance.
5) Is this Philips HPS ballast OK for an outdoor wall pack or parking lot fixture?
Yes, it's suitable for outdoor use and UL Recognized with ULR approval marking, so it's a component intended to be installed inside a listed luminaire or weatherproof enclosure rather than run exposed. Insulation is Class H (180 C) with UL temperature code 1029C and a B/C/B/C temperature marking across the four taps.
6) Is this a high power factor ballast, and what circuit type is it?
HX-HPF, a reactor with high power factor correction, rated 0.9 nominal power factor with a ballast factor of 1. Nominal input power is 96 W for the 70 W lamp. High power factor matters if you're on a utility tariff that penalizes PF or you're loading a lot of heads on one branch circuit, since it keeps line current down.
7) Will this core and coil fit inside my existing HPS fixture housing?
Core size is 3 x 4 (2 LW), the standard small-frame lamination stack for 70W HPS, and the assembly weighs 2.527 kg. Measure the ballast tray in your housing against a 3 x 4 core plus the separate capacitor can at 1.25 in diameter by 2.75 in high, since the capacitor mounts apart from the coil and needs its own space.
8) Does this HID ballast restrike automatically after a power blip?
No automatic restart on this one. After an interruption the HPS lamp has to cool before it will strike again, and the ballast won't force a hot restrike. For an application where instant relight matters (a stairwell, an egress path), pair the HPS head with a separate quartz restrike or an emergency luminaire rather than relying on this ballast.
9) What size wire leads does the Philips 71A7971 ballast come with?
Leads are 12 inches of stranded wire, stripped 0.5 mm. That's short for a deep housing, so plan on a wire nut splice inside the ballast compartment if your tray sits far from the socket and tap connections.
10) What are the open circuit and short circuit values for testing this 70W HPS ballast?
Open circuit voltage is 120 V nominal, with an acceptable test window of 110 to 130 V. Secondary short circuit current reads 2.1 to 2.45 A. On the line side, open circuit input current is 1.46/0.86/0.73/0.64 A across the 120/208/240/277 taps and starting current is 0.85/0.51/0.43/0.39 A. Hipot is 2000 V for one minute or 2500 V for two seconds. Useful when a maintenance tech is deciding whether the ballast or the lamp failed.
11) Is the Philips 913700501309 a magnetic ballast or electronic, and does that matter for dimming?
Magnetic HID, core and coil construction, base model 71A7971. Magnetic HPS gear is not dimmable in the way electronic HID or LED drivers are, and it holds constant wattage deviation within the trapezoid on line voltage swings. If a facility is standardizing on dimming or controls, that's a case for relamping the fixture to LED instead of replacing the ballast.
12) Is this sold as a single ballast kit or a case?
One kit per pack, one pack per outer box, so ordering a quantity of one gets you a single 70W HPS core and coil assembly with its capacitor and ignitor. Order in multiples for a relamp program across a site.
