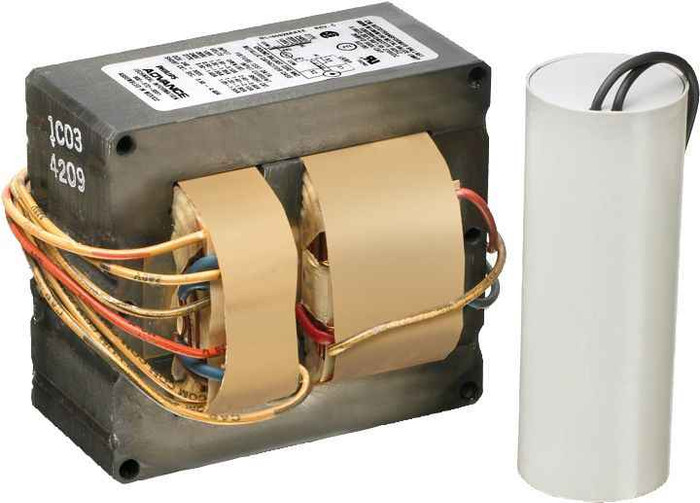

Advance Magnetic HID Ballast 70W HPS S62 120V 60Hz Kit

Advance Magnetic HID Ballast 70W HPS S62 120V 60Hz Kit

(No reviews yet) Write a Review

Model: 71A7907001DB
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$273.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance Magnetic HID Ballast 70W HPS S62 120V 60Hz Kit

Professional HPS Lighting Ballast for Commercial & Industrial Applications

The Advance Magnetic HID Ballast delivers reliable 70W HPS lamp operation at 120V with S62 ANSI code compatibility. This professional-grade ballast kit features Class P thermal protection, pulse start technology, and 0.9 power factor for efficient lighting performance. Built with Signify Electronics quality and manufactured in the USA, this magnetic ballast provides dependable service for commercial and industrial lighting installations.

Professional Features & Benefits

  • 70W Power Rating: Optimized for standard HPS lamp applications with consistent light output and energy efficiency.
  • S62 ANSI Code: Ensures proper lamp compatibility and standardized performance across installations.
  • Class P Thermal Protection: Automatic thermal shutdown prevents overheating and extends ballast service life.
  • Pulse Start Technology: Provides reliable lamp ignition and improved lamp life compared to probe start systems.
  • 0.9 Power Factor: High power factor reduces reactive power consumption and improves electrical system efficiency.
  • UL Listed & CSA Certified: Meets rigorous safety standards for commercial and industrial lighting applications.
  • USA Manufacturing: Domestic production ensures quality control and reliable supply chain support.

Technical Specifications

  • Ansi Code: S62
  • Ballast Factor: 1
  • Country Of Origin: USA
  • Dimmable: No
  • Frequency Rating: 60 Hz
  • Lamp Type: HPS
  • Microfarad: 28 MFD
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Power Rating: 70 WTT
  • Product Height: 2.1900 IN
  • Product Length: 2.6300 IN
  • Product Type: Magnetic HID
  • Product Wattage: 70 W
  • Product Weight: 2.700 Lbs
  • Product Width: 2.9000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Thermal Protection: CLASS P
  • Voltage Rating: 120 V

Professional Applications

  • Commercial Warehouse Lighting
  • Industrial Facility High Bay Applications
  • Retail Store Accent Lighting
  • Parking Structure Illumination
  • Security Lighting Systems
  • Street and Area Lighting
  • Manufacturing Plant Task Lighting

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL and CSA certifications, Class P thermal protection, and USA manufacturing quality. The RoHS compliant design meets environmental standards while the compact 2.63" x 2.90" x 2.19" form factor provides flexible installation options for professional lighting applications.

Manufacturer Resources

Product Specs

Ansi Code:
S62
Ballast Factor:
1
Country Of Origin:
USA
Dimmable:
No
Frequency Rating:
60 Hz
Lamp Type:
HPS
Microfarad:
28 MFD
Number Of Lamps:
1
Power Factor:
0.9
Power Rating:
70 WTT
Product Height:
2.1900 IN
Product Length:
2.6300 IN
Product Type:
Magnetic HID
Product Wattage:
70 W
Product Weight:
2.700 Lbs
Product Width:
2.9000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Thermal Protection:
CLASS P
Voltage Rating:
120 V
Department:
Electrical

Advance 71A7907001DB – Frequently Asked Questions

1) What comes in the Advance 70W HPS ballast kit, and do I need a separate capacitor?
It is sold as a kit, which is the ballast core and coil with its 28 MFD capacitor rather than a bare core. The 28 MFD rating is what gets you the 0.9 power factor; substituting a different microfarad value will change lamp current and shorten lamp life. Mounting hardware, wire nuts, and the lamp itself are separate.
2) Will this ballast fit inside my existing HPS fixture housing?
The component measures 2.63 x 2.90 x 2.19 inches and weighs 2.7 pounds. Measure the pocket in your ballast tray or pole base against those three numbers before ordering, since 70W HPS gear housings vary quite a bit between fixture makers.
3) Can I put this 70W HPS ballast on a dimmer or photocell-dimmed control?
No. It is a non-dimming magnetic ballast with a ballast factor of 1, so it drives the lamp at full rated output whenever power is applied. Switch it on and off with a photocell or contactor instead; a dimmer will damage the ballast and the lamp.
4) Pulse start versus probe start on a 70W HPS ballast, which do I need?
This one is pulse start, which is what HPS lamps require. HPS lamps use a starter pulse to strike the arc, so the ignitor is part of the ballast circuit. Probe start gear is a metal halide arrangement and is not a substitute here.
5) My parking lot fixtures keep browning out at the end of long runs. Does power factor matter here?
It does on multi-fixture runs. At 0.9 power factor the ballast draws less line current for the same 70 watts of lamp load than a low power factor unit, which means less voltage drop across a long branch circuit and more fixtures per breaker. For a property manager standardizing a lot or a street run, that is the spec worth matching across all the poles.
6) Is the Advance 71A7907001DB made in the USA?
Yes, country of origin is the USA, which matters if you are buying against a Buy American or domestic-preference clause on a government or institutional job. Order by MPN 71A7907001DB to get this exact kit.
