Philips Lighting 913700501651 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$249.57
$199.57

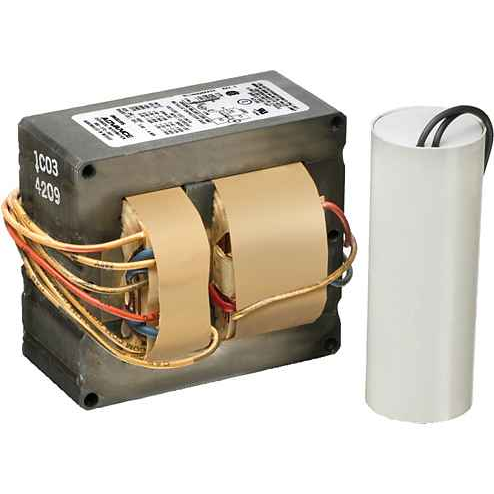

Philips Lighting 913700501651 71A8007B Core & Coil HID Ballast, 100W HPS, 120V, R-HPF Magnetic

Philips Lighting 913700501651 71A8007B Core & Coil HID Ballast, 100W HPS, 120V, R-HPF Magnetic

(No reviews yet) Write a Review

Model: 913700501651
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$249.57
$199.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 71A8007B Core & Coil HID Ballast, 100W HPS, 120V, R-HPF Magnetic

The Philips Lighting 71A8007B Core & Coil HID Ballast (order code 913700501651) is a magnetic core-and-coil ballast engineered for 100W HPS lamps operating on a 120V, 60 Hz supply. Built with an R-HPF (Regulated High Power Factor) circuit and full ANSI S54 ballast compatibility, it delivers a nominal ballast factor of 1, a nominal power factor of 0.9, and nominal input current of 1.05 A. This ballast is UL Recognized (ULR) for use in outdoor HID luminaires and remote-mounted ballast installations.

Key Features

  • Lamp Compatibility: Engineered for 100W HPS lamps per ANSI S54 ballast code, with a rated lamp power of 100 W and constant wattage deviation within trapezoid limits.
  • Magnetic HID Construction: Core & coil magnetic ballast with an R-HPF (Regulated High Power Factor) circuit type for stable, regulated lamp operation and a compact core size of 2 5/8 x 2 3/16.
  • Electrical Input: 120V, 60 Hz input with nominal input power of 115 W, nominal input current of 1.05 A (starting current 1.5 A, open-circuit current 1.8 A), and a nominal power factor of 0.9.
  • Integral Ignitor: Built-in integral ignitor rated to 105°C for reliable lamp starting in outdoor HID fixtures.
  • Capacitor: Includes a 7C360M12RA, 36 MFD, 120V capacitor rated to 105°C for consistent lamp performance.
  • Remote Wiring Capable: Remote wiring configuration allowed, with a maximum ballast-to-lamp distance of 2' for remote installations.
  • Voltage Performance: Open circuit voltage of 120V (test range 114-126V) with secondary short circuit current of 2.4-3.6 A for dependable starting and operation.
  • Lead Wires & Weight: Net weight of 1.597 kg with 12" stranded lead wires for straightforward fixture wiring, suitable for outdoor use in HID luminaires.

Certifications & Compliance

  • UL Recognized (ULR Approval Mark)
  • ANSI S54 Ballast Code
  • UL Insulation Class H (180°C)

Technical Specifications

  • Ansi Code: S54
  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor (Nom): 1
  • Input Current (Nom): 1.05 A
  • Max Ballast-Lamp Distance (Remote Wiring): 2'
  • Numerator Packs Per Outer Box: 1
  • Numerator Quantity Per Pack: 1
  • Order Product Name: CORE & COIL HID 71A8007001DB
  • Power Factor (Nom): 0.9
  • Remote Wiring Configuration Allowed: Yes
  • Suitable For Outdoor Use: Yes
  • Temperature Marking: A
  • UL Recognized: Yes
  • Wire Length By Color: 12"

Typical Applications

  • Outdoor HID Area and Site Lighting
  • Street and Roadway Lighting Fixtures
  • 100W HPS Lamp Retrofits and Replacements
  • Remote-Mounted Ballast Installations
  • Commercial and Industrial HID Luminaires

Why Philips Lighting?

Philips Lighting engineers its core & coil HID ballasts, like the 71A8007B, for dependable, code-compliant performance with UL Recognized construction and ANSI S54 ballast compatibility. Built with a high-temperature-rated integral ignitor and a 36 MFD, 120V capacitor, this magnetic HID ballast is designed to keep 100W HPS lighting systems running reliably in outdoor and remote-wiring applications. From core-and-coil construction to regulated R-HPF circuitry, the 71A8007B reflects Philips Lighting's commitment to consistent, code-compliant HID lighting performance.

Manufacturer Resources

Product Specs

Ansi Code:
S54
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A8007B
Capacitor Catalog Number:
7C360M12RA
Capacitor Diameter Oval Dimensions:
1.65 in
Capacitor Height:
2.75 in
Capacitor Requirements:
120V
Capacitor Temperature Rating:
105°C
Capacitor Value:
36 MFD
Circuit Type:
R-HPF
Constant Wattage Deviation:
Within Trapezoid
Ean Upc Product:
7.81087E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
INTEGRAL
Ignitor Temperature Rating:
105°C
Input Current Nom :
1.05 A A
Input Current Open Circuit :
1.8 A
Input Current Short Circuit :
1.0-1.6 A
Input Current Starting :
1.5 A
Input Frequency:
60 Hz
Input Power Nom :
115 W
Input Voltage:
120 V
Lamp Type:
100W HPS
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
1.597 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
120 V
Open Circuit Voltage Test Volts :
114-126 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A8007001DB
Power Factor Nom :
0.9
Rated Lamp Power:
100 W
Recommended Fuse Value:
5:00 AM
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
2.4-3.6 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
A
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029A
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
2 5/8 x 2 3/16
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913700501651 – Frequently Asked Questions

1) Will the Philips 71A8007B ballast run a 100W metal halide lamp, or only HPS?
HPS only. The 71A8007B is built to ANSI ballast code S54, which is the 100W high pressure sodium designation, and it has an integral ignitor sized for that lamp. A 100W metal halide lamp runs on a different ANSI code and will not operate correctly here. Match the ANSI code printed on the lamp to S54 before wiring it in.
2) Is the capacitor included with the Philips 71A8007B core and coil ballast, or do I order it separately?
The capacitor is specified as part of the kit: catalog number 7C360M12RA, 36 MFD at 120V, rated to 105 degrees C, measuring 1.65 in diameter by 2.75 in high. The ignitor is integral to the ballast, so there is no separate ignitor to source. If you are replacing only a failed cap on an existing install, those are the values to match.
3) Can I mount this Philips HID ballast away from the fixture in a pole base or remote enclosure?
Remote wiring is allowed, but the run is short: maximum ballast to lamp distance is 2 feet. That covers a ballast tray mounted in the head or just behind the socket, not a pole base feeding a luminaire twenty feet up. If your design needs a long remote run, this is the wrong ballast for it.
4) Will a 120V only HID ballast work on my 277V lighting circuit?
No. The 71A8007B is a single-tap 120V, 60 Hz ballast with a nominal input power of 115 W and nominal input current of 1.05 A. On a 277V branch circuit you need a 277V or multi-tap quad-volt HPS ballast instead. Check the fixture label for the supply voltage before ordering.
5) Can this Philips core and coil ballast be used in an outdoor parking lot or roadway fixture?
Yes, it is rated suitable for outdoor use and is UL Recognized as a component, meaning it is intended to be installed inside a listed luminaire or enclosure rather than run exposed. The ignitor and capacitor are both rated to 105 degrees C and the ballast carries UL insulation class H at 180 degrees C, which is what lets it live in a hot shoebox or cobrahead head.
6) What does R-HPF mean on an HID ballast and does it matter for my circuit loading?
R-HPF is a regulated high power factor circuit. Practically, it means the ballast pulls a nominal 0.9 power factor and 1.05 A at 120V, with 1.5 A during starting, so amperage per fixture stays low and you can put more heads on a 20A circuit than a low power factor reactor ballast would allow. The regulated design also holds lamp wattage steady when line voltage drifts, with constant wattage deviation held within the trapezoid limits.
7) Does this Philips HPS ballast restrike the lamp automatically after a power blip?
No automatic restart. Like any HID system, after an interruption the lamp has to cool before the ignitor can strike it again, and this ballast has no auto-restart feature to shorten that. If the site needs instant light after an outage, plan on a separate quartz restrike fixture or emergency head.
8) What open circuit voltage should I see when testing this HPS ballast before the lamp strikes?
Open circuit voltage is nominally 120V, with an acceptable test range of 114 to 126V, and secondary short circuit current of 2.4 to 3.6 A. Open circuit input current runs 1.8 A. If your meter reads outside those windows during troubleshooting, the ballast or capacitor is suspect rather than the lamp.
9) Will one lamp per ballast be enough, or can the 71A8007B drive two heads?
One lamp only. It is rated for a single 100W HPS lamp at a ballast factor of 1, meaning the lamp runs at full rated lumen output rather than derated. Two-head poles need two ballasts.
10) What part number do I give my distributor for the Philips 71A8007B ballast?
Reference the base model 71A8007B, sold under the Philips order description CORE & COIL HID 71A8007001DB. That identifies the 100W HPS, 120V, R-HPF magnetic core and coil unit.
11) How is the Philips 71A8007B HID ballast packaged, individually or in a case?
It ships one per pack, one pack per outer box, so you are buying a single ballast per unit. For a relamp and reballast program across a site, count one per fixture.
