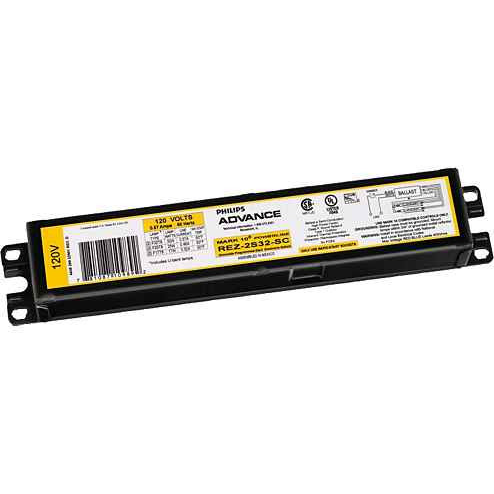

Philips Lighting 91371023 MARK 10 POWERLINE Dimmable Fluorescent Ballast, F32T8 120V

Philips Lighting 91371023 MARK 10 POWERLINE Dimmable Fluorescent Ballast, F32T8 120V

(No reviews yet) Write a Review

Model: 913710231601

In Stock (leaves warehouse same day if ordered before 3pm ET)

$127.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 91371023 MARK 10 POWERLINE Dimmable Fluorescent Ballast, F32T8 120V

The Philips Lighting 91371023 MARK 10 POWERLINE ballast is a dimmable fluorescent ballast engineered to drive F32T8 lamps rated at 32W. Built for 120V, 60 Hz input with programmed-start ignition and a 1.5 s nominal ignition time, this ballast ships in a compact 9.5" x 1.7" x 1.18" metal housing (Housing Type SC) and is CSA certified and suitable for outdoor use. A 0.99 power factor, 10% THD, and 1.6 crest factor deliver efficient, code-compliant performance for commercial fluorescent lighting retrofits and new installations.

Key Features

  • Compact Metal Housing: 9.5" x 1.7" x 1.18" enclosure with Housing Type SC construction for durable, space-saving installation.
  • Dimmable Ballast: Drives F32T8 lamps rated at 32W via series lamp connection for flexible lighting control.
  • Programmed-Start Ignition: 1.5 s nominal ignition time with automatic restart extends lamp life and simplifies retrofits.
  • 120V/60 Hz Input: 0.99 power factor, 10% total harmonic distortion, and 1.6 crest factor for efficient, stable operation.
  • Outdoor Rated: Suitable for outdoor use with a 70°C nominal maximum case temperature.
  • Low Hum and Noise: Class A hum and noise level rating for quiet operation in occupied commercial spaces.

Certifications & Compliance

  • CSA Certificate
  • FCC Consumer EMC Standard
  • Suitable for Outdoor Use

Technical Specifications

  • Numerator Packs Per Outer Box: 10
  • Automatic Restart: Yes
  • Total Harmonic Distortion Usa: 10%
  • Numerator Quantity Per Pack: 1
  • Hum And Noise Level: A
  • Ul Recognized: No
  • Housing Type: SC
  • Suitable For Outdoor Use: Yes
  • Crestfactor Nom: 1.6

Typical Applications

  • Commercial Fluorescent Lighting
  • F32T8 Lamp Retrofits
  • Indoor and Outdoor Fixtures
  • New Construction Lighting Projects

Why Philips Lighting?

Philips Lighting builds the MARK 10 POWERLINE ballast with a durable metal housing and CSA-certified construction for dependable performance. Programmed-start ignition, automatic restart, and a 0.99 power factor deliver efficient, code-compliant operation for F32T8 fluorescent lighting systems in commercial and outdoor applications. This combination of solid construction and proven electrical performance makes the 91371023 a reliable choice for professional lighting retrofits and new construction projects alike.

Manufacturer Resources

Product Specs

Numerator Packs Per Outer Box:
10
Housing Dimensions:
9.5" x 1.7" x 1.18"
Housing Material:
Metal
Material Nr 12nc:
9.1371E+11
Wire Striplength:
0.50/0.375 mm
Automatic Restart:
Yes
Input Frequency:
60 Hz
Lamp Connection:
Series
Total Harmonic Distortion Usa:
10%
Ballast Type:
Dimmable Fluorescent
Ballast Factor Min:
0.05
Numerator Quantity Per Pack:
1
Ignition Time Nom:
1.5 s
Input Voltage:
120 V
Color Input Terminals:
No terminals
Wire Type:
Solid
Product Type:
Fluorescent Ballast
Ean Upc Product:
7.81087E+11
Ignition Method:
Programmed Start
Color Output Terminals:
No terminals
Hum And Noise Level:
A
Approval Marks:
CSA certificate
Ul Recognized:
No
Connector Type:
No connector
Wire Gauge Nom:
18AWG mm
Housing Type:
SC
T Case Maximum Nom:
70 °C
Emc Immunity Standard:
FCC Consumer
Order Code:
9.1371E+11
Suitable For Outdoor Use:
Yes
Wire Length By Color:
See data sheet
Rated Lamp Power:
32 W
Lamp Type:
F32T8
Power Factor Nom:
0.99
Crestfactor Nom:
1.6
Department:
Electrical

Philips Lighting 913710231601 – Frequently Asked Questions

1) What lamps does the Philips Mark 10 Powerline REZ dimming ballast run?
It drives F32T8 lamps at 32 W rated lamp power, in either a 2-lamp or 3-lamp version. The lamps are wired in series, so all lamps on the ballast dim together as one circuit. Pick the version that matches the lamp count in the fixture; a 3-lamp ballast is not a substitute for a 2-lamp troffer.
2) Does this Philips dimming ballast need a separate low-voltage control wire?
No. Powerline dimming means the control signal rides on the line voltage feed, so there is no 0-10V pair to pull. That is the main install difference versus a 0-10V dimming ballast, which needs two extra control conductors run back to the dimmer.
3) What input voltage does the Philips Mark 10 Powerline REZ S32SC35I run on?
120 V at 60 Hz only. It is a single-voltage ballast, not a 120-277 V universal unit, so it will not work on a 277 V commercial branch circuit.
4) Will this ballast fit in a standard T8 troffer ballast channel?
The housing measures 9.5 x 1.7 x 1.18 inches in an SC-type metal case, which is the common small-can footprint used in 2x4 and strip fixtures. Measure the existing can before you swap, and match the mounting hole centers on the old unit.
5) Can this Philips fluorescent ballast be used in an outdoor or unheated fixture?
It is rated suitable for outdoor use inside a suitable luminaire, with a maximum nominal case temperature of 70 C. The case temp limit is what matters on the install: measure at the hottest point of the can in the enclosed fixture and stay under it.
6) Will lights come back on by themselves after a power blip with this ballast?
Yes, automatic restart is built in, so the lamps re-strike on their own when power returns rather than needing a manual reset at the switch. Nominal ignition time is 1.5 seconds.
7) Is this ballast quiet enough for an office or classroom?
It carries an A sound rating, the quietest class for fluorescent ballasts, which is what you want over desks, in classrooms, and in patient rooms. Nominal power factor is 0.99 with 10 percent total harmonic distortion, so it will not upset a building with harmonic limits in the spec.
8) Why choose a programmed start dimming ballast over an instant start ballast?
Programmed start preheats the lamp cathodes before striking, which protects lamp life in spaces that switch or dim frequently, such as occupancy-sensor controlled offices, classrooms, and restrooms. Instant start gets you slightly better efficiency but chews through lamps where the lights cycle often, and it is not a dimming architecture at all. If the space is on sensors or a dimming control, this is the right ballast family; if it is a warehouse that runs straight through the shift, a non-dimming instant start unit is the simpler buy.
9) What wire and strip length should I use when landing this Philips ballast?
Leads are 18 AWG solid wire, stripped to 0.50/0.375 mm per the spec. Solid leads mean you will want appropriately rated wire nuts or push-in connectors; the ballast ships with bare leads and no terminals or connector block on either the input or output side.
10) How do these ballasts pack for a multi-fixture retrofit order?
One ballast per pack, ten packs to an outer box. For a floor of 2x4 troffers, count your fixtures and order in tens to land on whole cases.
