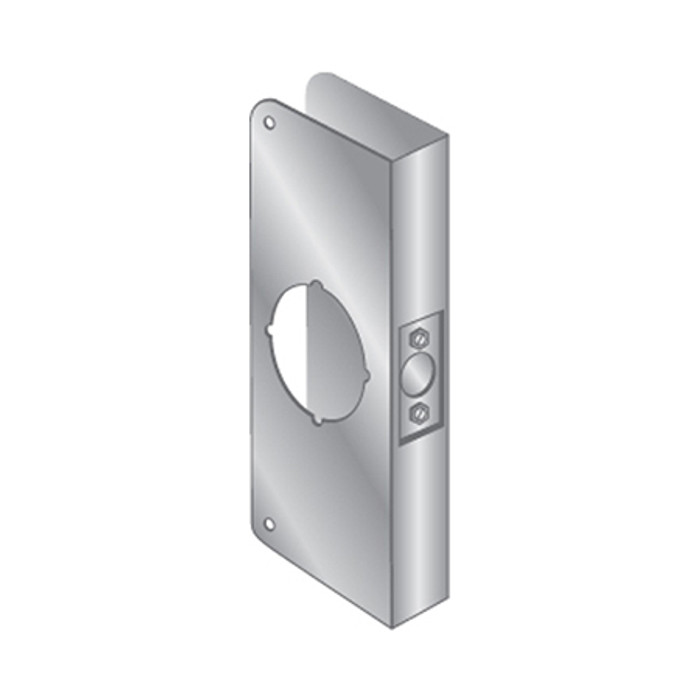

Pro-Lok - Wrap Plate, 2-1/8″ Bore – 4-1/4″ x 9″ x 1-3/4″

The Pro-Lok wrap around plate is bored 2-1/8 inches with a 2-3/4 inch backset, which is the standard commercial prep for a key-in-knob lock or a deadbolt. If the door was drilled 2-1/8 inch bore on a 2-3/4 inch backset, the plate drops right over the existing hole and the lock reinstalls through it. Doors prepped on a 2-3/8 inch backset (common on residential openings) will not line up, since the plate's bore is fixed at 2-3/4.

It wraps a 1-3/4 inch thick door. That is the standard commercial door thickness, so it suits most apartment entry, office, and back-of-house openings. On a 1-3/8 inch door (the common older interior thickness) the wrap will be loose over the edge and the plate is the wrong part for that opening.

That is exactly what the Pro-Lok stainless wrap plate is for. It wraps the edge of the door and covers both faces around the lock bore, so splintered wood or a deformed metal skin around a knob or deadbolt gets covered and reinforced rather than replaced. It also raises the resistance of an intact door to forced entry. The plate covers a 4-1/4 by 9 inch area on the face, so damage outside that footprint stays exposed.

Both. The stainless wrap plate is rated for wood or metal doors at 1-3/4 inches thick, which covers hollow metal commercial doors and solid or hollow core wood entries alike. Pro-Lok lists it for residential, commercial, and industrial openings, so the same part standardizes across a mixed building.

Yes. The plate is bored 2-1/8 inches to pass the lock body, so the knob or deadbolt comes off, the plate wraps over the door edge with the bore aligned on the 2-3/4 inch backset, and the lock goes back through it. The lock's own through-bolts clamp the plate in place. Budget the job as a lock R and R, not a stick-on repair.

The Pro-Lok wrap measures 4-1/4 x 9 inches and it wraps the edge, so that footprint lands on each face of the door, 9 inches of height centered on the lock and 4-1/4 inches back from the edge. On a narrow stile aluminum door check that 4-1/4 inches of face is available before ordering; on a standard wood or hollow metal door there is plenty of room.

Stainless steel is the finish stocked. Pro-Lok builds the wrap in duronodic as well, but the stainless is the one configured here. Stainless reads as a clean bright metal against aluminum or brushed hardware; if the other doors in the building run dark bronze trim, the duronodic is the closer visual match.
