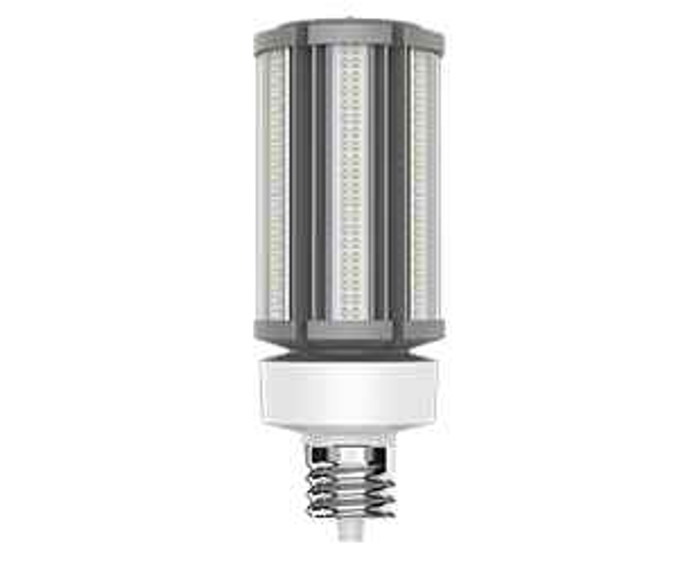

RAB 54W LED HID Replacement Bulb - EX39 Base, 5000K, Ballast Bypass with 3-Pin Sensor Port

RAB 54W LED HID Replacement Bulb - EX39 Base, 5000K, Ballast Bypass with 3-Pin Sensor Port

(No reviews yet) Write a Review

Model: HID-54-EX39-850-BYP/3SP
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$118.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB 54W LED HID Replacement Bulb - EX39 Base, 5000K, Ballast Bypass with 3-Pin Sensor Port

High-Efficiency LED Retrofit Solution for Commercial & Industrial Applications

The RAB 54W LED HID Replacement Bulb delivers superior energy efficiency and performance with its EX39 mogul base design and ballast bypass configuration. Operating at 5000K color temperature with 8100 lumens output, this LED retrofit solution provides reliable illumination while featuring a convenient 3-pin sensor port for advanced lighting control integration across 100-277V input voltage range.

Professional Features & Benefits

  • 54W Power Consumption: Significantly reduces energy costs compared to traditional HID lamps while maintaining high light output
  • 8100 Lumens Output: Delivers bright, consistent illumination with 150 lm/W efficacy for maximum energy efficiency
  • 100-277V Input Voltage: Universal voltage compatibility ensures flexible installation across various electrical systems
  • Ballast Bypass Design: Eliminates ballast dependency for improved reliability and reduced maintenance requirements
  • 50000 Hour Rated Life: Extended operational lifespan minimizes replacement frequency and maintenance costs
  • 3-Pin Sensor Port: Enables integration with occupancy sensors and lighting control systems for enhanced functionality
  • DLC 5.1 Listed: Qualifies for utility rebates and ensures verified performance standards for commercial applications

Technical Specifications

  • Amps 120: 0.46A
  • Amps 208: 0.28A
  • Amps 240: 0.25A
  • Amps 277: 0.22A
  • Dlc Id: PLCUHX2SNULC
  • Dlc Type: DLC
  • Dlc Version: 5.1
  • Driver Info: Constant Current
  • Efficacy: 150 lm/W
  • Flicker: <30%
  • Input Voltage: 100-277V
  • Input Watts: 54
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Lamp Lumens: 8100
  • Product Finish: Clear
  • Product Watts: 54

Professional Applications

  • Warehouse and Industrial Facility High Bay Lighting
  • Commercial Building General Illumination
  • Retail and Office Space Overhead Lighting
  • Manufacturing Plant Work Area Lighting
  • Distribution Center Task Lighting
  • Parking Garage and Security Lighting
  • Municipal and Institutional Facilities

Why Choose RAB Quality?

RAB LED technology delivers proven reliability with DLC 5.1 listing ensuring verified performance standards and utility rebate eligibility. The constant current driver design and clear finish construction provide consistent, professional-grade illumination backed by 50000-hour rated operational life for long-term value and reduced maintenance requirements.

Manufacturer Resources

Product Specs

Amps 120:
0.46A
Amps 208:
0.28A
Amps 240:
0.25A
Amps 277:
0.22A
Dlc Id:
PLCUHX2SNULC
Dlc Type:
DLC
Dlc Version:
5.1
Driver Info:
Constant Current
Efficacy:
150 lm/W
Flicker:
<30%
Input Voltage:
100-277V
Input Watts:
54
Lamp Hours:
50000
Product Finish:
Clear
Department:
Electrical
Product Group:
LED Bulbs
Light Technology:
LED
Lumens:
8100
Product Wattage:
54

RAB HID-54-EX39-850-BYP/3SP – Frequently Asked Questions

1) Do I have to remove the ballast to install the RAB HID-54-EX39-850-BYP/3SP LED bulb?
Yes. This is a ballast bypass lamp, so the existing HID ballast has to be removed or bypassed and line voltage wired directly to the socket. It accepts 100-277V input, so it works on 120, 208, 240 or 277V line feeds without changing the lamp. Current draw runs 0.46A at 120V, 0.28A at 208V, 0.25A at 240V and 0.22A at 277V, which is what you size the circuit and count fixtures against. If you want a lamp that runs on the existing ballast with no rewiring, this is not it.
2) What HID wattage does a 54W LED HID replacement bulb actually replace?
Go by lumens, not watts. This RAB lamp puts out 8100 lumens at 54 watts, an efficacy of 150 lm/W. That output lands in the range a facility would previously have gotten from a mid-wattage metal halide high bay after years of lumen depreciation, so the practical test is to compare 8100 lumens against the delivered output you need on the floor rather than matching the old nameplate wattage.
3) What is the 3-pin sensor port on this RAB HID replacement lamp for?
The 3SP suffix means the lamp has a 3-pin port for connecting an occupancy or motion sensor directly to the lamp, so a warehouse aisle or parking garage fixture can switch itself without adding a control at the fixture or the panel. The sensor is a separate item; the lamp provides the port only.
4) Does this RAB LED bulb qualify for a utility rebate?
It carries a DLC listing under DLC version 5.1, with DLC ID PLCUHX2SNULC. That ID is what most utility programs ask for on the rebate paperwork, so have it on the submittal along with the quantity and wattage.
5) Can I mix these with lamps still running on ballasts in the same building?
You can, but every fixture getting this lamp has to be individually bypassed. Because the ballast is removed, the retrofitted fixture draws only the lamp's load, 0.46A at 120V, while un-retrofitted fixtures keep their full ballast draw. Track which fixtures have been converted, since a bypassed lamp put back on a live ballast is a failure and a ballasted lamp in a bypassed socket will not light.
6) Is 5000K too cold for a warehouse or parking garage?
5000K is a neutral-to-cool daylight white, and it is the usual choice for warehouses, manufacturing floors, parking structures and security lighting where visual acuity matters more than warmth. If you are relamping a retail sales floor or hospitality space next to existing 3000K or 4000K fixtures, the color difference will be obvious and you would want a warmer lamp instead.
7) Will this LED lamp flicker on camera in a security or parking application?
Flicker is rated at under 30%, and the lamp runs on a constant current driver. That keeps the output steady enough for general surveillance work in garages and perimeter areas. For high-speed camera work or slow-motion capture, verify against the camera's requirements.
8) How long before I have to get the lift back out to relamp these?
Rated life is 50,000 hours. On a 12-hour-a-day schedule that is roughly 11 years of service, which is the argument for a bypass retrofit in high-bay and garage locations where access equipment is the real cost of a relamp.
