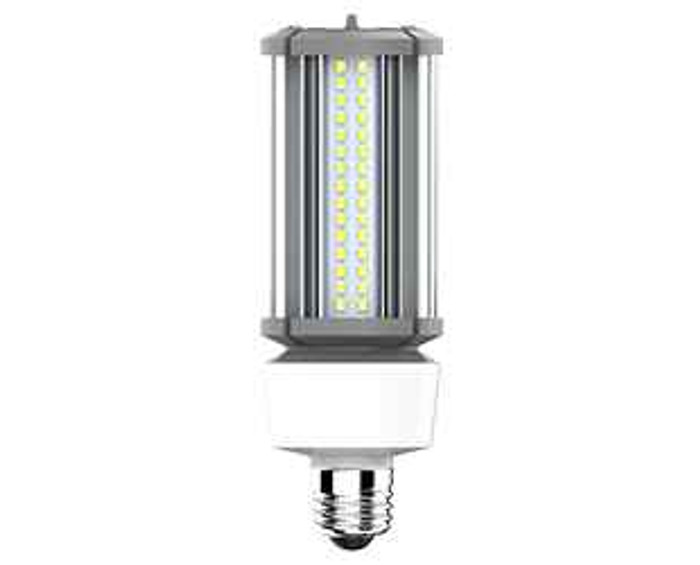

RAB HIDFA Series LED HID Replacement Lamp - E26 Base, Field-Adjustable 4-27W, 5000K, Ballast Bypass

Professional LED retrofit solution with field-adjustable wattage control

The RAB HIDFA Series LED HID Replacement Lamp delivers professional-grade lighting performance with field-adjustable wattage from 4-27W and 5000K color temperature. Featuring E26 base compatibility and ballast bypass operation, this LED lamp provides reliable retrofit solutions for existing HID fixtures with constant current driver technology and clear finish construction.

Professional Features & Benefits

  • Field-Adjustable Wattage (4-27W): Provides flexible power output adjustment to match specific lighting requirements and optimize energy consumption for various applications.
  • 5000K Color Temperature: Delivers crisp, daylight-balanced illumination ideal for commercial, industrial, and outdoor lighting applications requiring excellent visibility.
  • E26 Base Configuration: Ensures broad compatibility with standard medium screw base fixtures for straightforward retrofit installations.
  • Ballast Bypass Operation: Eliminates ballast dependency for improved reliability and reduced maintenance while simplifying electrical connections.
  • 145 lm/W Efficacy: Provides exceptional energy efficiency with high lumen output per watt for reduced operating costs and superior performance.
  • 50,000 Hour Lamp Life: Delivers extended service life reducing replacement frequency and maintenance costs in commercial and industrial applications.
  • 100-277V Input Voltage: Accommodates wide voltage range for versatile installation across different electrical systems and applications.

Technical Specifications

  • Driver Info: Constant Current
  • Efficacy: 145 lm/W
  • Flicker: <30%
  • Input Voltage: 100-277V
  • Lamp Hours: 50000
  • Lamp Info: LED
  • Product Finish: Clear
  • Product Height: 2.83
  • Product Length: 2.83
  • Product Width: 8.86

Professional Applications

  • Commercial Building Retrofits
  • Industrial Facility Lighting
  • Warehouse and Distribution Centers
  • Parking Structure Illumination
  • Retail and Office Buildings
  • Municipal and Public Facilities
  • Educational Institution Lighting

Why Choose RAB Quality?

RAB HIDFA Series LED lamps combine proven LED technology with field-adjustable functionality and extended 50,000-hour service life. The constant current driver design and clear finish construction ensure reliable performance and professional results in demanding commercial and industrial lighting applications.

Manufacturer Resources

Product Specs

Driver Info:
Constant Current
Efficacy:
145 lm/W
Flicker:
<30%
Input Voltage:
100-277V
Lamp Hours:
50000
Product Finish:
Clear
Product Height:
2.83
Product Length:
2.83
Product Width:
8.86
Department:
Electrical
Product Group:
LED Bulbs
Light Technology:
LED

RAB HIDFA-12S-E26-850-BYP – Frequently Asked Questions

1) Do I have to remove the ballast to install the RAB HIDFA LED retrofit lamp?
Yes. The HIDFA is a ballast bypass lamp, so the existing HID ballast has to be removed or wired around and the socket fed line voltage directly. It runs on 100-277V input, which covers 120V, 208V, 240V and 277V circuits, so an electrician can land it on whatever the fixture is already fed with. If you want a lamp that runs on the existing ballast without rewiring, this is not that lamp.
2) Will the RAB HIDFA screw into a standard medium base socket?
It uses an E26 medium screw base, the same base as a standard household or commercial screw-in lamp, so it threads into any E26 socket. The lamp body measures 2.83 x 2.83 x 8.86 inches, so check the enclosure depth before ordering: an 8.86 inch lamp will not fit a shallow jelly jar or a compact wall pack even though the socket accepts it.
3) What does field-adjustable wattage mean on the RAB HIDFA lamp, and do I set it at install?
Each HIDFA lamp carries three selectable output levels that you set at the lamp before it goes in the socket, rather than stocking three different part numbers. The 12S gives 12, 6 or 4W; the 18S gives 18, 12 or 6W; the 27S gives 27, 18 or 12W. For a maintenance crew that means one lamp covers a range of fixtures, and you can dial output down in a stairwell or corridor and up in a parking structure off the same box.
4) Which RAB HIDFA wattage do I order to replace a 70W or 100W metal halide lamp?
Pick by the light you need, not the old HID wattage. At 145 lm/W, the 27S at its top setting puts out roughly 3,900 lumens, the 18S about 2,600, and the 12S about 1,700. Compare those to the delivered output of what's in the fixture now, keeping in mind an aged HID lamp is well below its rated lumens. The overlapping steps help here, since the 18S and 27S both cover 18 and 12W, so a wrong guess can often be corrected at the lamp instead of on a return.
5) Is 5000K too cold for a retail or office space?
5000K is daylight-white, a crisp blue-white rather than the warm tone of a 3000K lamp. It reads well in warehouses, parking structures, loading docks and industrial bays where visibility and contrast matter. In a hospitality lobby or a warm retail interior it will look clinical and will clash badly if the neighbouring fixtures are 3000K or 3500K. Mixing color temperatures across one space is the most visible mistake in a lamp-for-lamp retrofit, so match the rest of the room.
6) Will the RAB HIDFA flicker on camera in a parking garage or warehouse?
Flicker is rated under 30 percent, and the lamp runs on a constant current driver rather than a magnetic HID ballast. That's a meaningful improvement over the 120 Hz beat of an aging metal halide, which is what usually shows up as banding on security camera footage. If your facility has a hard flicker spec for camera coverage or for machine areas, check it against that figure before standardizing.
7) How long before I'm back up the lift changing these lamps again?
Rated lamp life is 50,000 hours. On a dusk-to-dawn exterior schedule of roughly 4,200 hours a year that's about twelve years; on 24/7 operation in a warehouse or parking deck it's closer to five and a half. For a property manager relamping high-bay or pole fixtures, that relamp interval is usually the whole argument for the retrofit, since the lift rental and the labour cost more than the lamps.
8) Can I put an LED HID replacement lamp in an enclosed fixture or a fully enclosed wall pack?
The HIDFA carries no enclosed-fixture rating in its specs, so don't assume one. Heat is the issue: a bypass LED lamp sealed in a gasketed housing runs hotter than it does in an open reflector, and that shortens the driver's life well short of the 50,000 hour rating. Where the housing is sealed, a purpose-built enclosed-rated retrofit kit or a full fixture replacement is the safer call than a screw-in lamp.
9) Is the RAB HIDFA dimmable on an existing wall dimmer?
No. Output is set by the field-adjustable selector on the lamp, at 12/6/4W, 18/12/6W or 27/18/12W depending on model, and that setting is fixed once the lamp is installed. It is not a lamp for a dimmer circuit or an occupancy-based dimming control. If your scope calls for continuous dimming or daylight harvesting, you want a dimmable driver in a fixture, not a screw-in bypass lamp.
10) Does the lamp position matter, base up or base down?
Unlike a metal halide arc tube, which often carries a universal or base-up-only burn position restriction, an LED lamp has no arc to orient. What does change with position is how the lamp sheds heat and where the light goes. In a base-down pole head or shoebox the 8.86 inch length puts the emitting section out in the reflector, which is what you want; in a short base-up can, verify the lamp clears the socket housing and the lens before you commit to a building's worth of them.
11) Can I mix RAB HIDFA lamps with the HID lamps still running in the same building?
You can, but the two won't look alike. A 5000K LED next to an aged metal halide (which drifts green or pink as it ages) is an obvious mismatch across a row of fixtures or down a parking aisle. For a facility standardizing one area at a time, do complete runs or complete elevations rather than scattered lamp-for-lamp swaps, and keep one wattage model per area so the adjustable settings stay consistent for whoever services it next.
