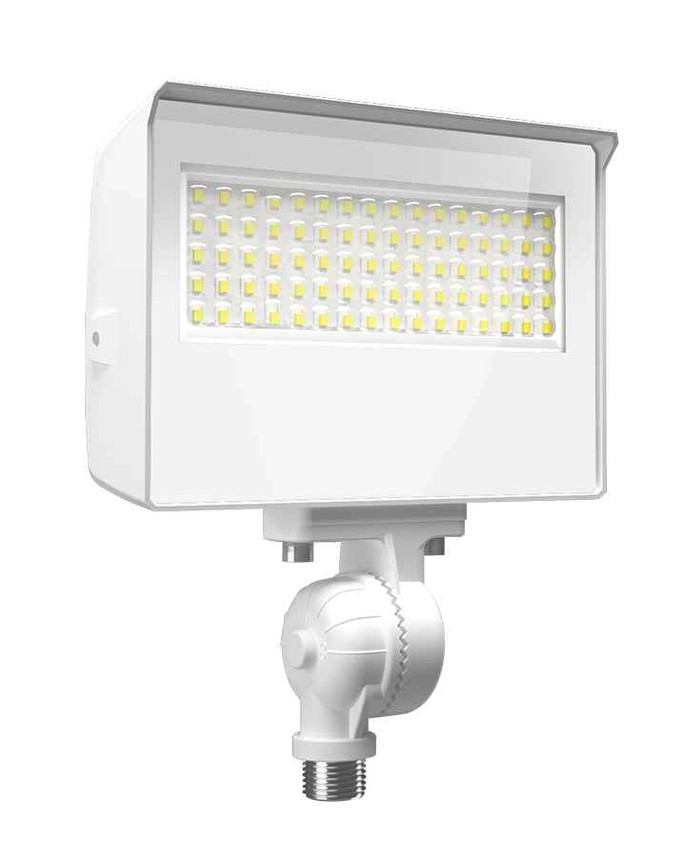

RAB X22 Adjustable-Power LED Flood Light with Multi-CCT Technology and Built-In Photocell

RAB X22 Adjustable-Power LED Flood Light with Multi-CCT Technology and Built-In Photocell

(No reviews yet) Write a Review

Model: X22-20W
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$113.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB X22 Adjustable-Power LED Flood Light with Multi-CCT Technology and Built-In Photocell

Professional LED flood lighting with adjustable power and color temperature control

The RAB X22 LED Flood Light delivers professional-grade illumination with adjustable power output from 10W to 35W and selectable color temperature from 3000K to 5000K. This versatile flood light features knuckle/yoke mounting for precise positioning and includes a built-in photocell for automatic dusk-to-dawn operation, making it ideal for security, landscape, and commercial lighting applications.

Professional Features & Benefits

  • Adjustable Power Output (10W–35W): Customize light levels to match specific application requirements while optimizing energy consumption and performance.
  • Multi-CCT Technology (3000K–5000K): Select the ideal color temperature for your environment, from warm white to daylight, ensuring optimal visibility and ambiance.
  • Built-In Photocell: Provides automatic operation with dusk-to-dawn functionality, eliminating manual switching and ensuring consistent lighting when needed.
  • DLC Premium 5.1 Certification: Meets the highest energy efficiency standards for utility rebate eligibility and professional installation confidence.
  • 100,000-Hour LED Lifespan: Delivers exceptional longevity with minimal maintenance requirements, reducing total cost of ownership over the fixture's lifetime.
  • Knuckle/Yoke Mount Design: Enables precise directional adjustment and secure mounting for optimal light distribution and professional installation flexibility.
  • Constant Driver Technology: Ensures stable, consistent light output and reliable performance throughout the fixture's operational life.

Technical Specifications

  • Dlc Type: DLC Premium
  • Dlc Version: 5.1
  • Driver Info: Constant
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Height: 3.54
  • Product Width: 11.22

Professional Applications

  • Security and perimeter lighting for commercial and industrial facilities
  • Landscape and architectural accent lighting for professional installations
  • Parking lot and walkway illumination for safety and visibility
  • Building facade and signage lighting for retail and office properties
  • Emergency and backup lighting systems for critical applications
  • Residential outdoor lighting for driveways, patios, and security areas

Why Choose RAB Quality?

RAB LED flood lights combine DLC Premium certification with 100,000-hour LED technology and constant driver performance for reliable, long-term operation. The adjustable power and multi-CCT capabilities provide professional flexibility while the built-in photocell ensures automated operation for consistent lighting performance.

Manufacturer Resources

Product Specs

Dlc Type:
DLC Premium
Dlc Version:
5.1
Driver Info:
Constant
Lamp Hours:
100000
Product Height:
3.54
Product Width:
11.22
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED

RAB X22-20W – Frequently Asked Questions

1) What's the difference between the RAB X22-20 and X22-35 flood lights?
The two X22 models differ in their wattage band. The X22-20 steps through 20/17/15/10W, and the X22-35 steps through 35/30/25/20W. Both use the same adjustable-power design, so pick the X22-20 for lower-output work like landscape and walkway accents and the X22-35 where you need more punch on a facade, driveway or small lot. Both come in bronze (X22-20, X22-35) or white (X22-20W, X22-35W).
2) Do I need to add a photocell or timer to the RAB X22 for dusk-to-dawn security lighting?
No separate control is needed. The X22 has a photocell built into the fixture, so it switches on at dusk and off at dawn on its own. Wire it to a constant unswitched hot and it runs automatically. If you want manual override you still need a switch upstream, since the fixture itself has no switch.
3) Can I change the color temperature on the RAB X22 after it's installed?
The X22 is a multi-CCT fixture selectable between 3000K and 5000K, so one fixture covers warm white through daylight. That matters on a property where you are matching existing heads: stock one fixture and set it to whatever the rest of the site runs instead of ordering a separate SKU per color.
4) Does the RAB X22 qualify for utility rebates?
The X22 is DLC Premium listed under DLC version 5.1. Premium is the higher of the two DLC tiers, and most utility prescriptive rebate programs that require DLC listing accept it. Confirm the specific model number with your utility program, since rebate tables are keyed to the listed model.
5) How does the RAB X22 flood light mount, and can I aim it after mounting?
It uses a knuckle/yoke mount, which pivots so you can aim the head up, down or across after it's secured. That's the mount style used for wall, eave and ground-stake-adapter applications where the aim has to be dialed in on site, as opposed to a fixed trunnion.
6) How big is the RAB X22 flood light housing?
The X22 measures 11.22 inches across and 3.54 inches high. That footprint is worth checking against the existing backplate or junction box cover if you're swapping out an older quartz or twin-head flood, since the X22 is a wide, low housing rather than a compact head.
7) How long will the RAB X22 LED flood light last before it needs service?
The LED source is rated at 100,000 hours. On a photocell running roughly dusk to dawn, that is a service life measured in decades rather than years, which is the argument for replacing incandescent or HID security heads on a multi-family or MRO portfolio where relamping labor is the real cost. The driver is a constant-current type, so output stays stable instead of drifting as it ages.
8) Why would I buy an adjustable-wattage flood light instead of a fixed-output one?
Field-selectable wattage lets one fixture cover several applications, so a contractor or property manager can stock a single part number instead of three. The X22-20 selects 20, 17, 15 or 10W and the X22-35 selects 35, 30, 25 or 20W. On the job you dial output down where light trespass or over-lighting is a concern and up where the throw needs it, without swapping fixtures or re-ordering.
9) Which finish should I order for the RAB X22 on a commercial building?
Two finishes are offered: bronze (X22-20, X22-35) and white (X22-20W, X22-35W). Bronze disappears against brick, dark trim and soffits; white is the usual choice on white stucco, painted fascia and light-colored parapets. The wattage band is independent of finish, so either output is available in either color.
