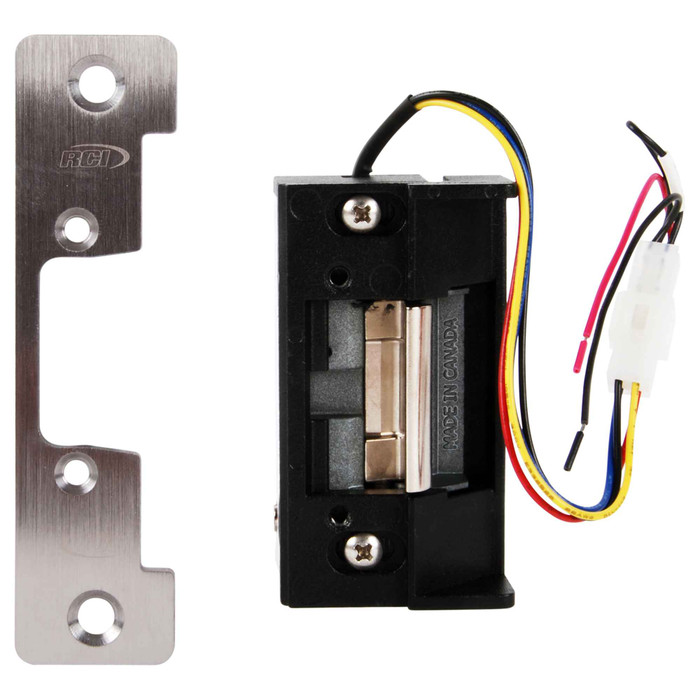

RCI 6504 Electric Strike with 4-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

RCI 6504 Electric Strike with 4-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

Professional All-in-One Electric Strike Solution

The RCI 6504 electric strike from the 6 Series combines essential features in a single unit designed for commercial access control applications. This non-handed electric strike accommodates 5/8" projection latches with a 4-7/8" round corner faceplate featuring ANSI radius corners. The unit operates on 12/24 VAC/DC power and includes field-selectable fail-secure and fail-safe operation with plug-in wire connectors for simplified installation.

Professional Features & Benefits

• Faceplate Dimensions: 4-7/8" H x 1-1/4" W (124mm x 32mm) with ANSI radius corners for standard frame compatibility.
• Latch Accommodation: Designed for 5/8" projection latches, ideal for cylindrical and mortise lock applications.
• Multi-Voltage Operation: 12/24 VAC/DC compatibility provides flexible power supply options for various access control systems.
• Field-Selectable Operation: Tool-free switching between fail-secure and fail-safe modes allows adaptation to specific security requirements.
• Installation Convenience: Plug-in wire connectors and 1/4" (6.4mm) horizontal adjustment simplify installation and alignment.
• Heavy-Duty Performance: 1500 static strength rating ensures reliable operation in demanding commercial applications.
• Universal Compatibility: Works with cylindrical locks, mortise exit and latch locks for versatile installation options.
• Professional Certifications: UL 294 Listed, UL 1034 Burglary-Resistant Listed, and ANSI/BHMA A156.31 Grade 1 certified for code compliance.

Technical Specifications

• Non-handed
• Plug-in wire connectors
• 1/4" (6.4mm) horizontal adjustment
• Field-Selectable Fail-Secure and Fail-Safe
• Trim plate included to cover up irregular frame cut-out
• 1-1/4" W x 4-7/8" H (32mm x 124mm), ANSI Radius Corners

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VAC/DC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure/fail-safe selection per application requirements using the tool-free field selection feature.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Office Building Access Control
• Healthcare Facility Entry Points
• Educational Institution Security
• Retail Store Access Management
• Industrial Facility Monitoring
• Multi-Tenant Building Entry Systems

Why Choose RCI Quality?

RCI electric strikes deliver professional-grade reliability with UL 294 and UL 1034 listings plus ANSI/BHMA A156.31 Grade 1 certification for demanding commercial applications. The 6504 model combines multi-voltage compatibility, field-selectable operation modes, and 1500 static strength rating in a single unit designed for long-term performance. Engineered for commercial access control systems where dependable security hardware is essential.
