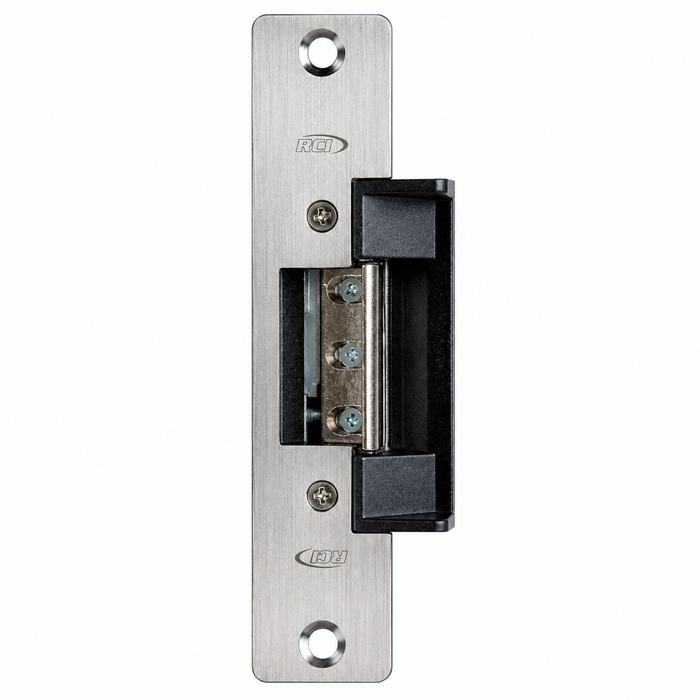

RCI 7107 Electric Strike with 6-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

RCI 7107 Electric Strike with 6-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

Professional Electric Strike for Commercial Access Control

The RCI 7107 electric strike is engineered for commercial applications requiring reliable access control with cylindrical and mortise lock compatibility. This 7 Series centerline strike accommodates 5/8" latch projections with a 6-7/8" round corner faceplate and supports door thicknesses from 1-3/8" to 2-3/8". Operating at 280mA with 12VDC power, the unit provides 500lbf static and 70ft-lb dynamic load capacity with fail-secure operation and 1/8" horizontal adjustment capability.

Professional Features & Benefits

• Latch Compatibility: Accommodates 5/8" (16mm) latch projection for precise engagement with cylindrical and mortise locks.
• Door Thickness Range: Compatible with door thicknesses from 1-3/8" to 2-3/8" (35mm-60mm) for versatile installation options.
• Precision Adjustment: 1/8" (3.2mm) horizontal adjustment allows precise alignment for optimal latch engagement.
• Heavy-Duty Load Capacity: Rated for 500lbf static and 70ft-lb dynamic loads with 250,000 cycle durability for high-traffic commercial applications.
• Flexible Power Operation: 280mA operation at 11-16VAC, 12VDC, or 24VACVDC with fail-secure configuration for enhanced security.
• Complete Installation Kit: Includes mounting tabs, fasteners, and trim plate to cover irregular frame cutouts for professional installation.
• Non-Handed Design: Universal configuration eliminates handing requirements for simplified inventory and installation.
• Manufacturer Warranty: 3 Year Limited Warranty for added confidence and protection.

Technical Specifications

• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• 500lbf Static 70ft-lb Dynamic
• 250,000 Cycles
• Available In Fail-Secure & Fail-Safe
• 3 Year Limited Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (11-16VAC, 12VDC, or 24VACVDC) and 280mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure operation per application requirements.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Office Building Entry Control
• Multi-Tenant Residential Access Systems

Why Choose RCI Quality?

RCI electric strike products deliver professional-grade reliability with heavy-duty construction rated for 500lbf static loads and 250,000 operational cycles. The 3 Year Limited Warranty provides added confidence for demanding commercial applications. Engineered for precise latch engagement and consistent performance where dependable access control is essential.
