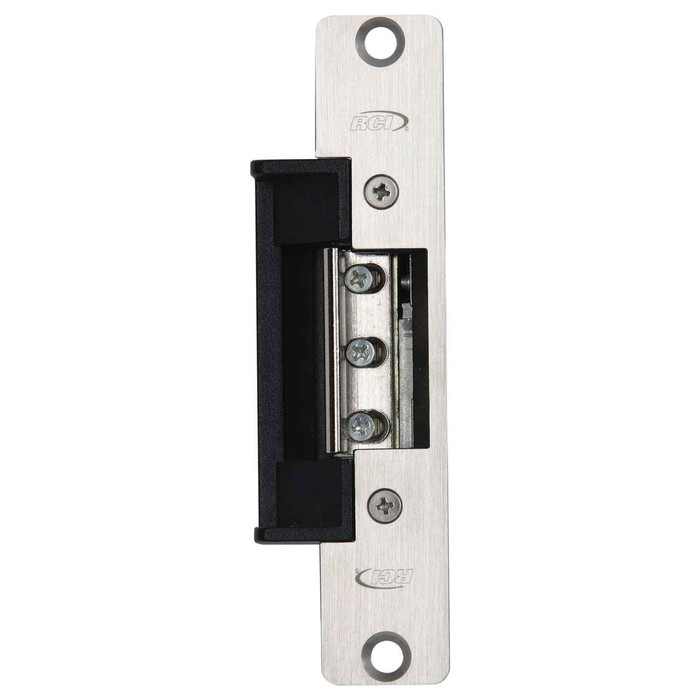

RCI 7305 Electric Strike with 5-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

RCI 7305 Electric Strike with 5-7/8" Round Corner Faceplate for Cylindrical and Mortise Locks

Professional Centerline Electric Strike for Commercial Access Control

The RCI 7305 electric strike is engineered for commercial access control applications requiring reliable fail-safe operation with cylindrical and mortise locks. This centerline strike accommodates 5/8" latch projections and features a 5-7/8" round corner faceplate designed for compatibility with door thicknesses from 1-3/8" to 2-3/8". Operating at 12VDC with 280mA current draw, the unit provides 500lbf static holding force and is rated for 250,000 operational cycles with a 3-year limited warranty.

Professional Features & Benefits

• Latch Compatibility: Accommodates 5/8" (16mm) latch projection for compatibility with cylindrical locks, mortise exit and latch locks, and exit devices.
• Door Thickness Range: Compatible with door thicknesses from 1-3/8" to 2-3/8" (35mm-60mm) for versatile installation options.
• Precision Adjustment: 1/8" (3.2mm) horizontal adjustment capability allows precise alignment for optimal latch engagement.
• Heavy-Duty Performance: 500lbf static holding force with 70ft-lb dynamic rating ensures reliable security performance in high-traffic applications.
• Proven Durability: Tested to 250,000 operational cycles for long-term reliability in commercial environments.
• Flexible Power Options: 280mA operation at 11-16VAC, 12VDC, or 24VAC/VDC (at 12VDC) accommodates various access control system requirements.
• Complete Installation Kit: Includes mounting tabs, fasteners, and trim plate to cover irregular frame cutouts for professional installation.
• Manufacturer Warranty: 3-year limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

• Accommodates 5/8" (16mm) latch projection
• 1/8" (3.2mm) horizontal adjustment
• 1-1/2" (38mm) cut-out depth
• Use with wide range of door thicknesses 1-3/8" to 2-3/8" (35mm-60mm)
• Mounting tabs, fasteners and trim plate included
• Non-handed
• Trim plate included to cover up irregular frame cutout
• 280mA 11-16VAC, 12VDC, 24VACVDC (At 12VDC)
• 500lbf Static 70ft-lb Dynamic
• 250,000 Cycles
• Available In Fail-Secure & Fail-Safe
• 3 Year Limited Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (11-16VAC, 12VDC, or 24VAC/VDC) and 280mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location with 1-1/2" (38mm) cut-out depth ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-safe operation per application requirements and utilize 1/8" horizontal adjustment for precise latch alignment.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Educational Institution Access Control
• Healthcare Facility Entry Management
• Retail Loss Prevention Systems
• Industrial Facility Access Points
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose RCI Quality?

RCI electric strike products deliver professional-grade reliability with heavy-duty construction rated for 500lbf static holding force and 250,000 operational cycles. The 3-year limited warranty provides added confidence for demanding commercial access control applications. Engineered for precise installation with included mounting hardware and horizontal adjustment capability, RCI strikes ensure dependable performance where security and reliability are essential.
