RCI RCI VR165 Electric Strike, Vertical Rod Exit Device, For 5/8" Roller Latch, 12-24 VAC, 12/24 VDC, Fail Secure VR165 32D

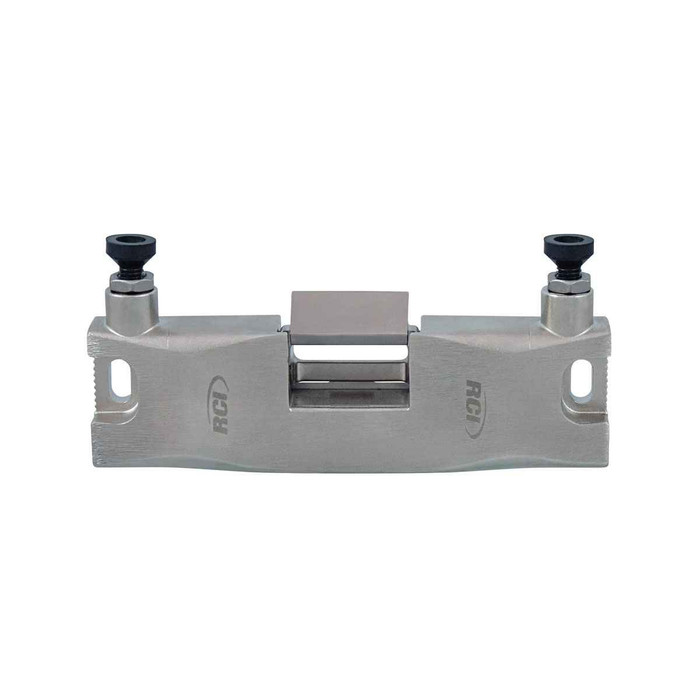

RCI VR165 Vertical Rod Electric Strike for 5/8" Roller Latch with 12-24V Power Options

(No reviews yet) Write a Review

Model: RCI-VR165 32D

In Stock (leaves warehouse same day if ordered before 3pm ET)

$624.00
$412.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RCI VR165 Vertical Rod Electric Strike for 5/8" Roller Latch with 12-24V Power Options

Heavy-Duty Surface Mounted Electric Strike for Vertical Rod Exit Devices

The RCI VR165 vertical rod electric strike is engineered for professional use with concealed vertical rod exit devices featuring roller latch mechanisms. This surface-mounted strike accommodates 5/8" (16mm) roller latch with field-selectable 12/24VDC & 12-24VAC power options at 450mA maximum. Constructed from high-grade stainless steel with conventional keeper design, the VR165 delivers 1,500lbf static and 70 dynamic ft-lb strength ratings. UL 294 Listed and certified to ANSI/BHMA Standard A156.31 Grade 1 for commercial security applications.

Professional Features & Benefits

  • Roller Latch Compatibility: Accommodates 5/8" (16mm) roller latch for precise fit with vertical rod exit devices.
  • Heavy-Duty Load Capacity: Rated for 1,500lbf static and 70 dynamic ft-lb for demanding commercial applications with 250,000 cycle durability.
  • Flexible Power Options: Field-selectable 12/24VDC & 12-24VAC operation at 450mA maximum (12VDC) for versatile system integration.
  • High-Grade Construction: Stainless steel construction ensures superior keeper strength and long-term reliability in commercial environments.
  • Precision Alignment System: Up to 1/4" (6.4mm) adjustment capability compensates for door and frame misalignments with door stop adjustment for different rail thicknesses.
  • Vibration-Resistant Design: Horizontal solenoid prevents manipulation from vibration with conventional keeper design promoting even load distribution.
  • Secure Mounting System: Lockdown tabs provide secure mount with HEX socket head cap screws for added support and tamper resistance.
  • Fail-Secure Operation: Fail-secure configuration maintains security during power loss for enhanced access control.
  • Manufacturer Warranty: 5 Year Limited Warranty for added confidence and protection.

Technical Specifications

  • Accommodates 5/8" (16mm) roller latch
  • Heavy-duty, surface mounted strike
  • High grade stainless steel ensures superior keeper strength
  • Ensure proper latch alignment – up to 1/4" (6.4mm) adjustment to compensate for door and frame misalignments
  • Door stop adjustment for different rail thicknesses
  • Horizontal solenoid prevents manipulation from vibration
  • Conventional keeper design (one moving part) - promotes even load distribution
  • Lockdown tabs for secure mount
  • Non-handed
  • HEX socket head cap screws for added support and tamper-resistance
  • Plug-in wire connector
  • Installation tool included (HEX key)
  • 450mA Field-Selectable 12/24VDC & 12-24VAC (Max at 12VDC)
  • 1,500lbf Static 70 Dynamic ft-lb
  • 250,000 Cycles
  • Fail-Secure
  • 5 Year Limited Warranty

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm voltage (12/24VDC & 12-24VAC) and current capacity (450mA maximum at 12VDC) before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-secure operation per application requirements.
  6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Educational Institution Access Control
  • Healthcare Facility Security
  • Government and Municipal Buildings
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties
  • Retail Loss Prevention Systems

Why Choose RCI Quality?

RCI electric strike products deliver professional-grade reliability with high-grade stainless steel construction rated for 1,500lbf static strength and 250,000 operational cycles. UL 294 Listed and certified to ANSI/BHMA Standard A156.31 Grade 1 with 5 Year Limited Warranty for added confidence. Engineered for demanding commercial applications where dependable access control performance is essential.

Manufacturer Resources

RCI Product Catalog

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Vertical Rod Electric Strike
Electronic:
Yes
UL Listing Type:
UL 294 Listed, UL 1034 Burglary-Resistant Listed, Certified to ANSI/BHMA Standard A156.31, Grade 1
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Compatibility:
Concealed Vertical Rod Exit Devices
Lock Type:
Exit Device
Tags:
vertical rod electric strike
Product Voltage:
12/24 VAC/DC
Product Finish:
Satin Stainless Steel
Product Category:
Electronic Access Controls
Department:
Door Hardware

RCI RCI-VR165 32D – Frequently Asked Questions

1) Will the RCI VR165 electric strike work with a concealed vertical rod exit device?
That's exactly what the VR165 is built for. It's a surface mounted electric strike for concealed vertical rod exit devices, and it takes a 5/8 inch (16mm) roller latch at the head. If your exit device uses a top latch bolt rather than a roller latch, the VR165 is not the right strike for it. Check the top latch on the device before ordering.
2) Does the VR165 stay locked or unlock when the power goes out?
It stays locked. The VR165 is a fail secure strike, so on a power loss the keeper holds the roller latch and the opening remains secured from the outside. Free egress still comes from the exit device itself, since pushing the bar retracts the latch mechanically with no power involved. If your code official requires the opening to release on power loss, you need a fail safe device instead.
3) What voltage does the RCI VR165 strike need, and can I run it on my existing 12V access control power supply?
The VR165 is field selectable for 12/24VDC and 12-24VAC, so a 12VDC supply runs it without any additional module. Current draw is 450mA maximum at 12VDC, which is the worst case figure to size your supply against. Selection is made at the strike, so one part number covers all four power configurations.
4) My exit device latch doesn't line up perfectly with the frame. Does the VR165 have any adjustment?
Up to 1/4 inch (6.4mm) of adjustment is built in to compensate for door and frame misalignment, and there's a separate door stop adjustment to suit different rail thicknesses. On retrofit work with an out of square frame or a sagged door, that's usually the difference between a clean install and having to rework the head. Beyond 1/4 inch of misalignment the frame has to be corrected.
5) Is the RCI VR165 strike UL Listed and what grade is it?
UL 294 Listed for access control and UL 1034 Burglary-Resistant Listed, and certified to ANSI/BHMA A156.31 Grade 1. For an institutional spec that calls for a Grade 1 electric strike with burglary resistance on an exit device opening, the VR165 meets it on both counts.
6) Do I have to order the VR165 handed for a left or right hand door?
No handing to specify. The VR165 is non handed, so the same part goes on a left or right hand opening. That also means it's the strike to standardize on if you're keeping stock for a building with doors swinging both ways.
7) How much force will the VR165 electric strike hold on a high traffic entrance?
1,500 lbf static and 70 dynamic ft-lb, with a 250,000 cycle rating. The keeper is stainless steel and uses a conventional one moving part design that spreads the load evenly rather than concentrating it. That cycle count puts it in range for a main entry or a school corridor door, not just a back of house opening.
8) Can someone pop an electric strike open by hitting or shaking the door?
The VR165 uses a horizontal solenoid specifically to stop vibration from throwing the keeper, so rapping or shaking the door won't manipulate it open. Mounting is secured with lockdown tabs and HEX socket head cap screws rather than standard fasteners, which adds tamper resistance on the exposed surface mount.
9) What comes in the box with the RCI VR165, and do I need any special tools?
The HEX key installation tool is included, so you don't need to source a driver for the socket head cap screws. Wiring is a plug in connector, which means no field terminating at the strike. What isn't included is the power supply, so plan that around 450mA at 12VDC, plus whatever access control device or reader is switching it.
10) What finish does the RCI VR165 vertical rod strike come in?
Satin stainless steel, ordered as VR165 32D. Since 32D is the standard satin stainless commercial finish, it blends with the aluminum and stainless storefront and hollow metal frames these strikes usually land on, and matches most exit device finishes already on the openings.
