Thomas & Betts C Series Non-Insulated Ring Terminal #8 Stud 10-12 AWG Electrolytic Copper

Thomas & Betts C Series Non-Insulated Ring Terminal #8 Stud 10-12 AWG Electrolytic Copper

Professional electrical connections with superior conductivity and grip

Thomas & Betts C Series ring terminals deliver reliable electrical connections with electrolytic copper construction for high conductivity. These non-insulated terminals feature a serrated barrel design that increases grip on wire, accommodating 10-12 AWG wire range with #8 stud size compatibility. The electro tin-plated finish provides enhanced corrosion resistance for long-term performance in professional electrical applications.

Professional Features & Benefits

• Electrolytic Copper Construction: Provides superior electrical conductivity for efficient power transmission and reduced resistance losses.
• Serrated Barrel Design: Increases mechanical grip on wire strands, ensuring secure connections that resist pullout under load.
• 600V Voltage Rating: Suitable for a wide range of commercial and industrial electrical applications with reliable insulation performance.
• 150�C Temperature Rating: Maintains performance integrity in high-temperature environments and demanding operating conditions.
• Electro Tin-Plated Finish: Enhances corrosion resistance and provides excellent solderability for professional installations.
• UL and CSA Certifications: Meets rigorous safety standards for code-compliant installations in commercial and industrial settings.
• Non-Insulated Design: Allows for compact installations where space is limited and provides visual connection verification.

Technical Specifications

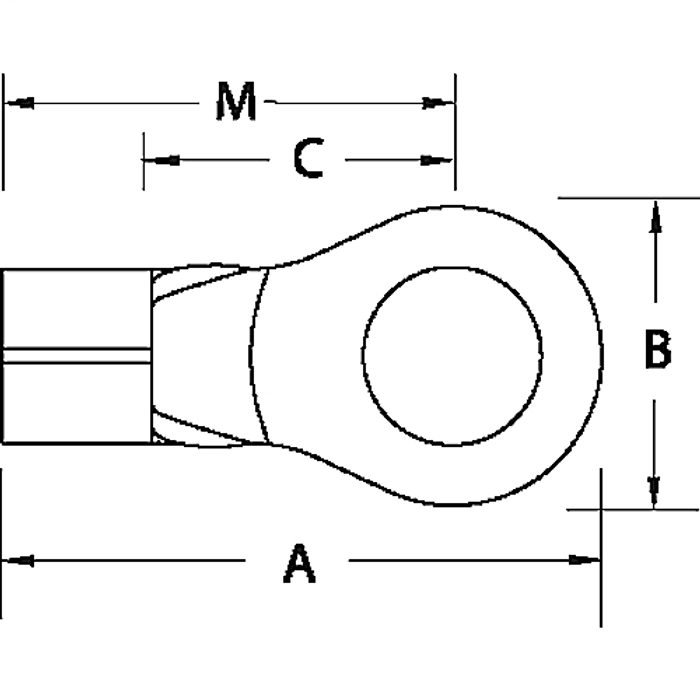

• A Inches: 0.82
• Alternate Package Qty: C77
• Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
• B Inches: 0.31
• C Inches: 0.27
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Non-Insulated
• M Inches: 0.66
• Material: Copper
• Order Multiple: 50
• Outer Package: 250
• Package Height: 7.2
• Package Length: 10.4
• Package Type: Standard
• Package Width: 8.7
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4002, ERG4005
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #8
• T B Sold In Uom: Each
• T B Weight Per Uom: 4.38 lbs. per 1000
• Temperature Rating: 150�C
• Terminal Series: C
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial electrical panel connections and distribution systems
• Industrial control cabinet wiring and equipment grounding
• Motor control centers and electrical equipment terminations
• Power distribution and branch circuit connections
• Electrical maintenance and repair applications
• Professional electrical contractor installations

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals provide dependable performance with UL and CSA certifications ensuring code compliance and safety. The electrolytic copper material and electro tin-plated finish deliver long-term reliability in demanding electrical environments, while the 150�C temperature rating and 600V voltage capacity support professional applications across commercial and industrial settings.
