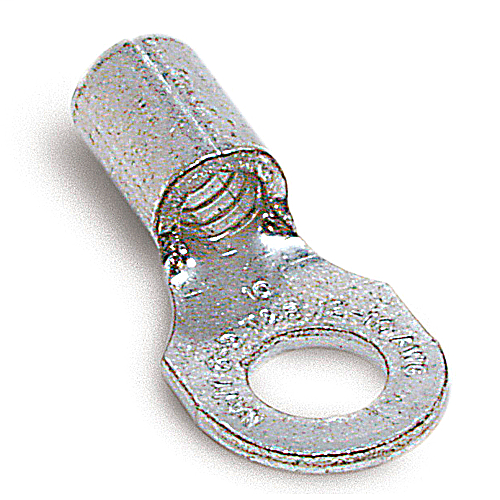

Thomas & Betts C10-14 Non-Insulated Ring Terminal 12-10 AWG Electrolytic Copper

Thomas & Betts C10-14 Non-Insulated Ring Terminal 12-10 AWG Electrolytic Copper

Professional Grade Electrical Connection Solution

The Thomas & Betts C10-14 non-insulated ring terminal delivers reliable electrical connections for 12-10 AWG wire applications. Constructed from electrolytic copper for high conductivity and featuring a serrated barrel design that increases grip on wire, this professional-grade terminal ensures secure connections in electrical installations. With CSA and UL certifications and electro tin-plated finish, it meets demanding electrical connection requirements.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• Electrolytic Copper Construction: Provides superior electrical conductivity and reliable current carrying capacity
• Serrated Barrel Design: Increases mechanical grip on wire for enhanced connection security and pull strength
• 600V Voltage Rating: Suitable for standard electrical system voltages with professional safety margins
• 150�C Temperature Rating: Withstands elevated operating temperatures in demanding electrical environments
• CSA and UL Certifications: Meets North American electrical safety standards for professional installations
• Electro Tin-Plated Finish: Provides corrosion resistance and enhanced conductivity at connection points

Technical Specifications

• A Inches: 0.91
• Alternate Package Qty: C71
• Application Tools: WT110M, WT111M, WT112M, WT2000, ERG4002
• B Inches: 0.5
• C Inches: 0.27
• Color: Metallic
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Non-Insulated
• M Inches: 0.66
• Material: Copper
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.9
• Package Length: 15.2
• Package Type: Standard
• Package Width: 9.4
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4002, ERG4005
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 5 lbs. per 1000
• Temperature Rating: 150�C
• Terminal Series: C
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Installations
• Commercial Building Wiring
• Industrial Control Panels
• Motor Control Centers
• Electrical Distribution Equipment
• Professional Electrical Maintenance
• Electrical Repair Services

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver proven reliability with CSA and UL certifications ensuring compliance with electrical safety standards. The electro tin-plated finish and electrolytic copper construction provide long-term durability and consistent performance in professional electrical applications. RoHS compliance and UL 94 V-0 flammability rating demonstrate commitment to safety and environmental responsibility.
