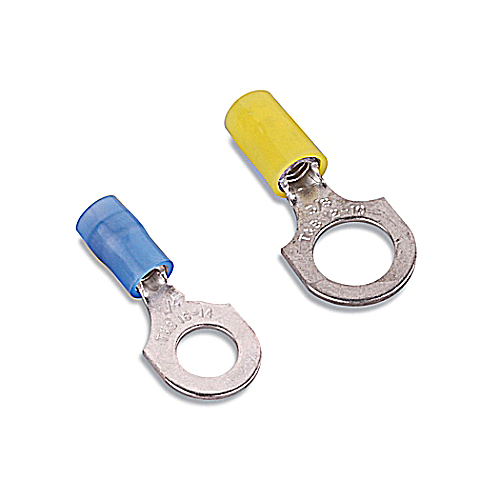

Thomas & Betts Insulated Ring Terminal 16-14 AWG #10 Stud Copper with Nylon Sleeve
Professional Insulated Ring Terminal for Secure Electrical Connections
Thomas & Betts delivers reliable electrical connectivity with this professional insulated ring terminal designed for 16-14 AWG wire applications. Featuring copper construction with electro tin-plated finish and high dielectric-strength nylon insulation, this #10 stud ring terminal provides secure connections rated for 600V and 105�C operation. The innovative design includes an inner bronze insulation grip sleeve that lengthens the flexing radius and eliminates conductor creep for enhanced durability.
Professional Features & Benefits
- 16-14 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
- 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance
- Copper Construction with Tin Plating: Provides excellent conductivity and corrosion resistance for long-term reliability
- Nylon Insulation Sleeve: High dielectric-strength protection prevents accidental contact and electrical faults
- Bronze Grip Sleeve Design: Inner sleeve extends conductor flex life and prevents wire creep for secure connections
- 105�C Temperature Rating: Withstands elevated operating temperatures in demanding electrical environments
- UL and CSA Certified: Meets rigorous safety standards for professional electrical installations
Technical Specifications
- A Inches: 0.89
- Alternate Package Qty: RB873
- Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
- B Inches: 0.31
- C Inches: 0.25
- Color: Blue
- Department: Electrical
- Flammability Rating: UL 94 V-2
- Inner Package: 100
- Insulation Type: Insulated Nylon
- M Inches: 0.71
- Material: Copper
- Maximum Insulation Inches: 0.162
- Order Multiple: 100
- Outer Package: 500
- Package Height: 8.8
- Package Length: 14.9
- Package Type: Standard
- Package Width: 9.4
- Product Finish: Electro Tin-Plated
- Product Group: Hardware
- Product Subgroup: Rings
- Recommended Tool: ERG4001
- Rohs Compliance: Yes
- Stock Thickness: 0.03
- Stud Size: #10
- T B Sold In Uom: Each
- T B Weight Per Uom: 1.88 lbs. per 1000
- Temperature Rating: 105�C
- Terminal Series: RB
- Voltage Rating: 600V
- Wire Range: 18-14
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Electrical Panel Connections
- Motor Control Centers
- Industrial Equipment Wiring
- Commercial Electrical Systems
- Control Circuit Applications
- Grounding and Bonding Connections
- Maintenance and Repair Operations
Why Choose Thomas & Betts Quality?
Thomas & Betts ring terminals deliver proven reliability with UL and CSA certifications ensuring compliance with professional electrical standards. The RoHS compliant construction and UL 94 V-2 flammability rating provide additional assurance for demanding electrical applications requiring dependable performance and safety.
Manufacturer Resources
Product Specs
- A Inches :
- 0.89
- Alternate Package Qty:
- RB873
- Application Tools:
- WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
- B Inches :
- 0.31
- C Inches :
- 0.25
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches :
- 0.71
- Maximum Insulation Inches :
- 0.162
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.8
- Package Length:
- 14.9
- Package Type:
- Standard
- Package Width:
- 9.4
- Product Group:
- Hardware
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #10
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 1.88 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- Department:
- Electrical
- Product Subgroup:
- Rings
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Blue
- Product Material:
- Copper
