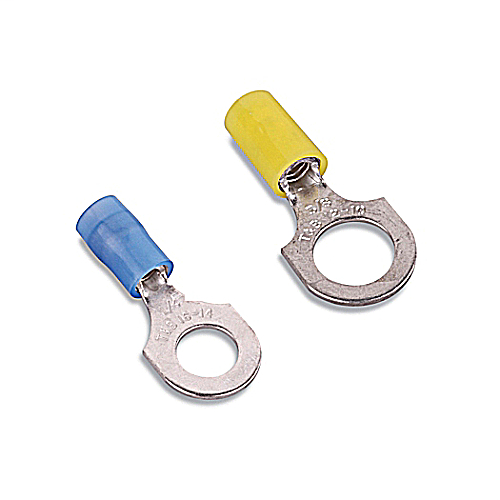

Thomas & Betts RB14-8 Insulated Ring Terminal 18-14 AWG #8 Stud 600V Copper with Nylon Sleeve
Professional Electrical Connection Solution with Enhanced Insulation Protection
Thomas & Betts delivers reliable electrical connectivity with the RB14-8 insulated ring terminal, designed for 18-14 AWG wire applications with #8 stud compatibility. This copper terminal features electro tin-plated finish and high dielectric-strength nylon sleeves for 600V rated performance. The self-insulated design includes an inner bronze insulation grip sleeve that lengthens the flexing radius of the conductor and eliminates conductor creep, ensuring long-term connection integrity in professional electrical installations.
Professional Features & Benefits
- 600V Voltage Rating: Provides reliable performance in standard electrical applications with professional-grade voltage capacity.
- 18-14 AWG Wire Range: Accommodates common wire gauges for versatile installation compatibility across residential and commercial projects.
- #8 Stud Size: Ensures secure mechanical connection with standard hardware for dependable electrical joints.
- Copper Construction with Electro Tin-Plated Finish: Delivers excellent conductivity and corrosion resistance for long-term reliability.
- Insulated Nylon Sleeve Design: Self-insulated construction with high dielectric-strength nylon provides enhanced safety and prevents accidental contact.
- Inner Bronze Grip Sleeve: Lengthens conductor flexing radius and eliminates conductor creep for improved connection durability.
- 105�C Temperature Rating: Withstands elevated operating temperatures for reliable performance in demanding electrical environments.
Technical Specifications

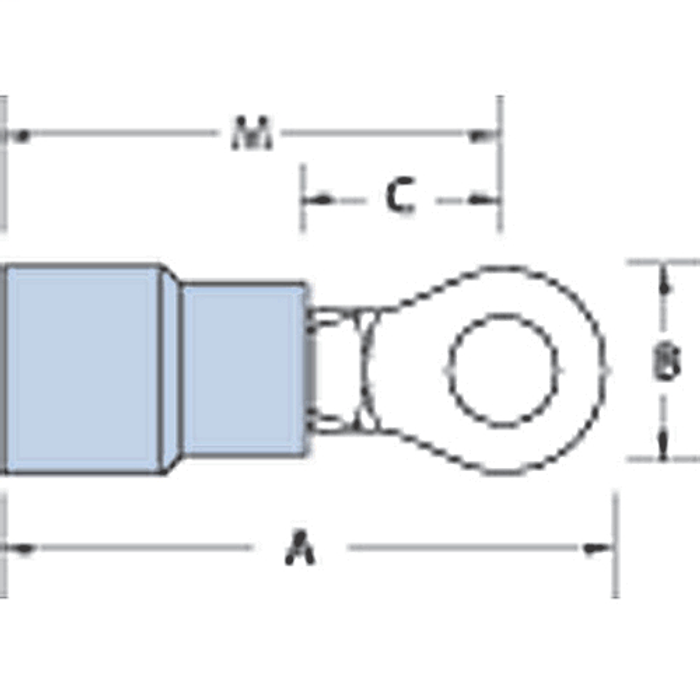

- A Inches: 0.89
- Alternate Package Qty: RB863
- Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
- B Inches: 0.31
- C Inches: 0.25
- Color: Blue
- Department: Electrical
- Flammability Rating: UL 94 V-2
- Inner Package: 100
- Insulation Type: Insulated Nylon
- M Inches: 0.71
- Material: Copper
- Maximum Insulation Inches: 0.162
- Order Multiple: 100
- Outer Package: 500
- Package Height: 9
- Package Length: 14.9
- Package Type: Standard
- Package Width: 9.3
- Product Finish: Electro Tin-Plated
- Product Group: Hardware
- Product Subgroup: Rings
- Recommended Tool: ERG4001
- Rohs Compliance: Yes
- Stock Thickness: 0.03
- Stud Size: #8
- T B Sold In Uom: Each
- T B Weight Per Uom: 0.31 lbs. per 100
- Temperature Rating: 105�C
- Terminal Series: RB
- Voltage Rating: 600V
- Wire Range: 18-14
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Residential Electrical Installations
- Commercial Building Wiring
- Industrial Control Panels
- Motor Control Centers
- Distribution Panel Connections
- Equipment Grounding Applications
- Electrical Maintenance and Repair
Why Choose Thomas & Betts Quality?
Thomas & Betts ring terminals deliver proven reliability with CSA and UL certifications, ensuring compliance with professional electrical standards. The RoHS compliant construction and UL 94 V-2 flammability rating demonstrate commitment to safety and environmental responsibility, while the 105�C temperature rating provides dependable performance in demanding applications.
Manufacturer Resources
Product Specs
- A Inches :
- 0.89
- Alternate Package Qty:
- RB863
- Application Tools:
- WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
- B Inches :
- 0.31
- C Inches :
- 0.25
- Flammability Rating:
- UL 94 V-2
- Inner Package:
- 100
- Insulation Type:
- Insulated Nylon
- M Inches :
- 0.71
- Maximum Insulation Inches :
- 0.162
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 9
- Package Length:
- 14.9
- Package Type:
- Standard
- Package Width:
- 9.3
- Product Group:
- Hardware
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #8
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 0.31 lbs. per 100
- Temperature Rating:
- 105°C
- Terminal Series:
- RB
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- Department:
- Electrical
- Product Subgroup:
- Rings
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Blue
- Product Material:
- Copper
