Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG #8 Stud 600V Yellow

Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG #8 Stud 600V Yellow

Professional Electrical Connection Solution with UL Listed Quality

Thomas & Betts delivers reliable electrical connections with this insulated nylon ring terminal designed for 12-10 AWG wire range and #8 stud applications. Featuring self-insulated construction with high dielectric-strength nylon sleeves and 600V voltage rating, this yellow terminal provides professional-grade performance with UL and CSA certifications for trusted electrical installations.

Professional Features & Benefits

• 600V Voltage Rating: Handles demanding electrical applications with reliable voltage capacity for professional installations.
• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile connection applications across electrical systems.
• #8 Stud Size: Provides secure mechanical connection with proper fit for standard electrical hardware.
• Insulated Nylon Construction: Self-insulated design with high dielectric-strength nylon sleeves ensures electrical safety and prevents accidental contact.
• Copper Material with Tin Plating: Electro tin-plated copper construction delivers excellent conductivity and corrosion resistance for long-term reliability.
• UL and CSA Certified: Listed by recognized testing laboratories ensuring compliance with electrical safety standards.
• 105�C Temperature Rating: Withstands elevated operating temperatures for reliable performance in demanding environments.

Technical Specifications

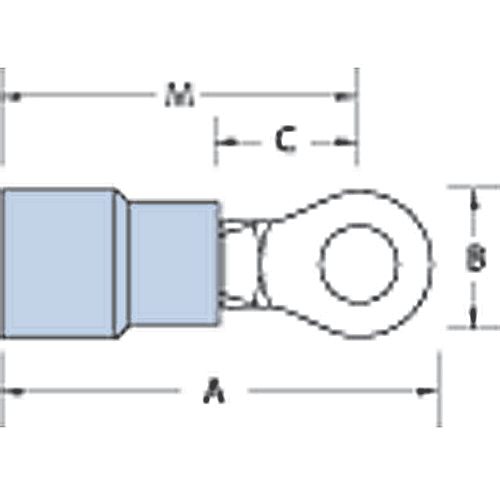

• A Inches: 1
• Alternate Package Qty: RC863
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
• B Inches: 0.37
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 50
• Insulation Type: Insulated Nylon
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 7.3
• Package Length: 10.5
• Package Type: Standard
• Package Width: 9
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #8
• T B Sold In Uom: Each
• T B Weight Per Uom: 4.38 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Motor Control Centers
• Industrial Equipment Wiring
• Commercial Electrical Systems
• Control Circuit Applications
• Maintenance and Repair Operations
• Professional Electrical Installations

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver professional reliability with UL and CSA certifications, 105�C temperature rating, and RoHS compliance. The bronze insulation grip sleeve lengthens the flexing radius of the conductor and eliminates conductor creep, ensuring long-term electrical connection integrity for demanding applications.
