Thomas & Betts RC10 Insulated Nylon Fork Terminal 12-10 AWG #10 Stud Yellow

Thomas & Betts RC10 Insulated Nylon Fork Terminal 12-10 AWG #10 Stud Yellow

Professional Insulated Fork Terminal with Bronze Grip Sleeve Technology

Thomas & Betts RC10 Insulated Nylon Fork Terminal delivers reliable electrical connections for 12-10 AWG wire applications with #10 stud compatibility. Featuring an inner bronze insulation grip sleeve that lengthens flex radius and eliminates conductor creep, this yellow color-coded terminal ensures secure connections in professional electrical installations. The electro tin-plated copper construction with nylon insulation provides durability and performance rated for 600V and 105�C applications.

Professional Features & Benefits

• Bronze Grip Sleeve Technology: Inner bronze insulation grip sleeve lengthens conductor flex radius and eliminates conductor creep for enhanced connection reliability
• 600V Voltage Rating: Professional-grade voltage capacity suitable for commercial and industrial electrical applications
• 105�C Temperature Rating: High-temperature performance ensures reliable operation in demanding thermal environments
• Electro Tin-Plated Finish: Corrosion-resistant plating on copper material provides long-lasting electrical conductivity and connection integrity
• Color-Coded Design: Yellow nylon jacket provides easy wire gauge identification and professional installation organization
• UL 94 V-2 Flammability Rating: Meets stringent fire safety standards for electrical component applications
• CSA and UL Certifications: Dual safety certifications ensure compliance with North American electrical standards

Technical Specifications

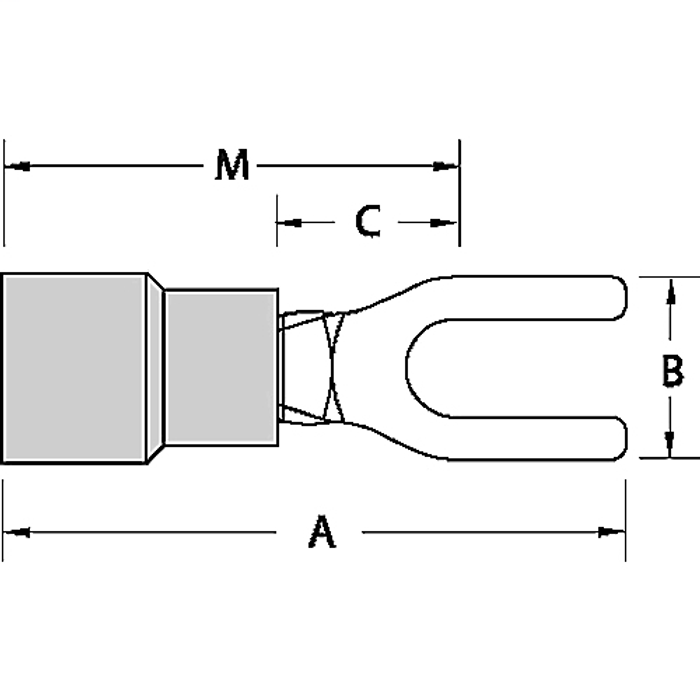

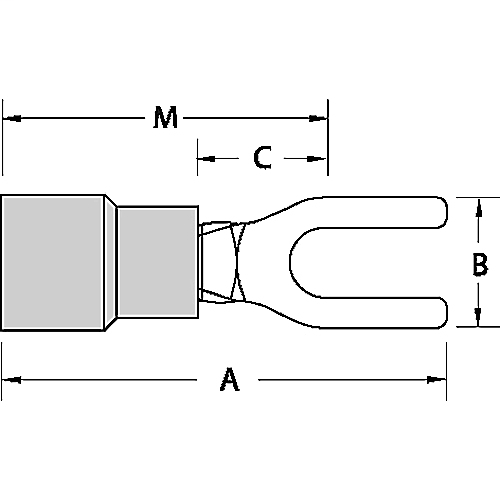

• A Inches: 1
• Alternate Package Qty: RC1153
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003, WT145A
• B Inches: 0.37
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 50
• Insulation Type: Insulated Nylon
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.75
• Package Length: 15
• Package Type: Standard
• Package Width: 9.25
• Product Finish: Electro Tin-Plated
• Product Group: Terminals
• Product Subgroup: Insulated Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 6.25 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Control Panels
• Motor Control Centers
• Distribution Equipment
• Electrical Maintenance and Repair
• Professional Electrical Contracting
• Equipment Manufacturing

Why Choose Thomas & Betts Quality?

Thomas & Betts RC10 terminals deliver proven reliability with CSA and UL certifications, ensuring compliance with professional electrical standards. The RoHS compliant construction and UL 94 V-2 flammability rating demonstrate commitment to safety and environmental responsibility, while the electro tin-plated copper material provides long-lasting performance in demanding electrical applications.
