Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG #10 Stud 600V Yellow

Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG #10 Stud 600V Yellow

Professional Electrical Connection Solution with High Dielectric Strength

Thomas & Betts delivers reliable electrical connections with this insulated nylon ring terminal designed for 12-10 AWG wire range and #10 stud applications. Featuring self-insulated construction with high dielectric-strength nylon sleeves and an inner bronze insulation grip sleeve that lengthens the flexing radius of the conductor and eliminates conductor creep. The electro tin-plated copper construction with yellow color coding ensures professional performance in 600V applications with 105�C temperature rating.

Professional Features & Benefits

• 600V Voltage Rating: Provides reliable performance in demanding electrical applications with professional-grade voltage capacity.
• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile installation compatibility across electrical projects.
• #10 Stud Size: Ensures secure mechanical connection with proper fit for standard electrical hardware.
• Insulated Nylon Construction: High dielectric-strength nylon sleeves provide superior electrical isolation and safety protection.
• 105�C Temperature Rating: Withstands elevated operating temperatures for reliable performance in demanding environments.
• Electro Tin-Plated Finish: Copper construction with tin plating delivers excellent conductivity and corrosion resistance.
• CSA and UL Certifications: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

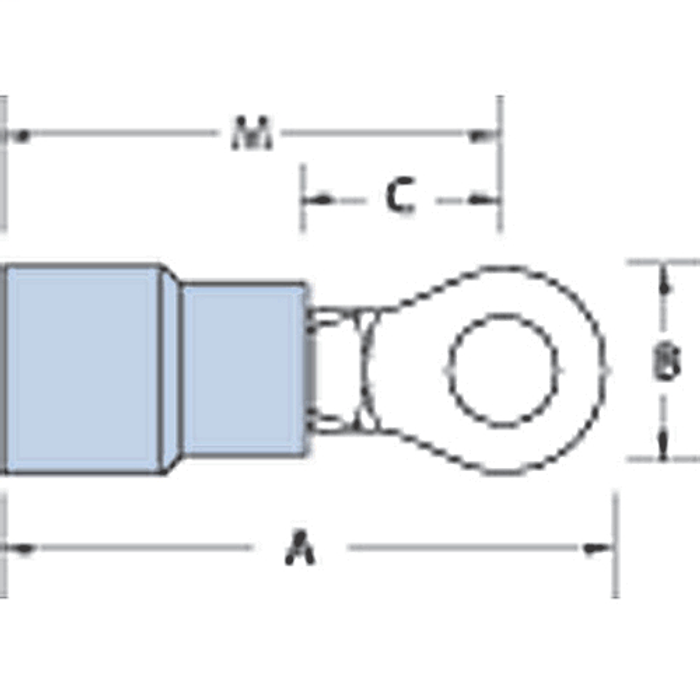

• A Inches: 1
• Alternate Package Qty: RC363
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
• B Inches: 0.37
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 50
• Insulation Type: Insulated Nylon
• M Inches: 0.81
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.7
• Package Length: 15
• Package Type: Standard
• Package Width: 9.3
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 50 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Motor Terminal Connections
• Equipment Grounding Applications
• Industrial Electrical Systems
• Commercial Building Wiring
• Maintenance and Repair Projects

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver professional reliability with CSA and UL certifications ensuring compliance with rigorous safety standards. The UL 94 V-2 flammability rating and RoHS compliance demonstrate commitment to quality and environmental responsibility, while the 105�C temperature rating and electro tin-plated finish provide long-term durability in demanding electrical applications.
