Thomas & Betts Insulated Ring Terminal #10 Stud 12-10 AWG Yellow Vinyl STAKON

Thomas & Betts Insulated Ring Terminal #10 Stud 12-10 AWG Yellow Vinyl STAKON

Professional Electrical Connection Solution with Enhanced Insulation Protection

Thomas & Betts delivers reliable electrical connectivity with this insulated ring terminal featuring #10 stud compatibility and 12-10 AWG wire range. The self-insulated design incorporates a PVC insulation sleeve of extra length to provide protection and relieve bending stress at the wire's flex point, while the brazed seam barrel is serrated to obtain high pull-out value for secure connections.

Professional Features & Benefits

• 600V Voltage Rating: Provides reliable performance for standard electrical applications with professional-grade voltage capacity.
• 105�C Temperature Rating: Ensures dependable operation in elevated temperature environments and demanding conditions.
• Copper Construction with Electro Tin-Plated Finish: Delivers excellent conductivity and corrosion resistance for long-term reliability.
• UL 94 V-0 Flammability Rating: Meets stringent fire safety standards for enhanced protection in electrical installations.
• Extended PVC Insulation Sleeve: Provides superior protection and stress relief at wire flex points for enhanced durability.
• Serrated Brazed Seam Barrel: Ensures high pull-out value and secure mechanical connection for reliable performance.
• UL and CSA Certifications: Meets recognized safety standards for professional electrical applications.

Technical Specifications

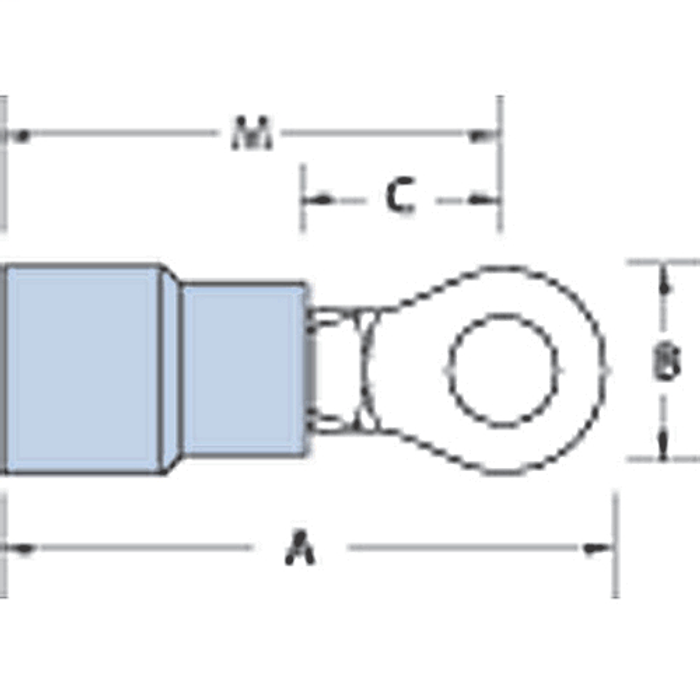

• A Inches: 1.06
• Alternate Package Qty: RC367
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.31
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Insulated Vinyl
• M Inches: 0.9
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 9.2
• Package Length: 15
• Package Type: Standard
• Package Width: 9.4
• Product Finish: Electro Tin-Plated
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #10
• T B Sold In Uom: Each
• T B Weight Per Uom: 5 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Motor Control Centers
• Industrial Equipment Wiring
• Commercial Electrical Systems
• Control Circuit Applications
• Maintenance and Repair Operations
• Professional Electrical Installations

Why Choose Thomas & Betts Quality?

Thomas & Betts delivers proven reliability with UL and CSA certifications, ensuring compliance with recognized safety standards. The 105�C temperature rating and UL 94 V-0 flammability rating provide confidence in demanding applications, while the copper construction with electro tin-plated finish ensures long-term performance and durability.
