Thomas & Betts 12-10 AWG Insulated Spade Terminal #6 Stud Yellow Vinyl

Thomas & Betts 12-10 AWG Insulated Spade Terminal #6 Stud Yellow Vinyl

Professional Insulated Fork Terminal with Enhanced Protection

Thomas & Betts delivers reliable electrical connections with this 12-10 AWG insulated spade terminal featuring #6 stud compatibility and yellow vinyl insulation. This professional-grade fork terminal provides secure wire termination with extra-long PVC insulation sleeve for enhanced protection and stress relief at the wire's flex point. The brazed seam barrel construction with serrated design ensures high pull-out value for dependable connections in electrical applications.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• #6 Stud Size: Provides secure mechanical connection to appropriately sized terminals and equipment
• Yellow Vinyl Insulation: Color-coded identification system enhances safety and simplifies wire management
• 600V Voltage Rating: Suitable for standard electrical system voltages with reliable performance
• 105�C Temperature Rating: Maintains integrity in elevated temperature environments for long-term reliability
• Electro Tin-Plated Finish: Corrosion-resistant coating ensures lasting conductivity and connection quality
• UL 94 V-0 Flammability Rating: Meets stringent fire safety standards for electrical component applications

Technical Specifications

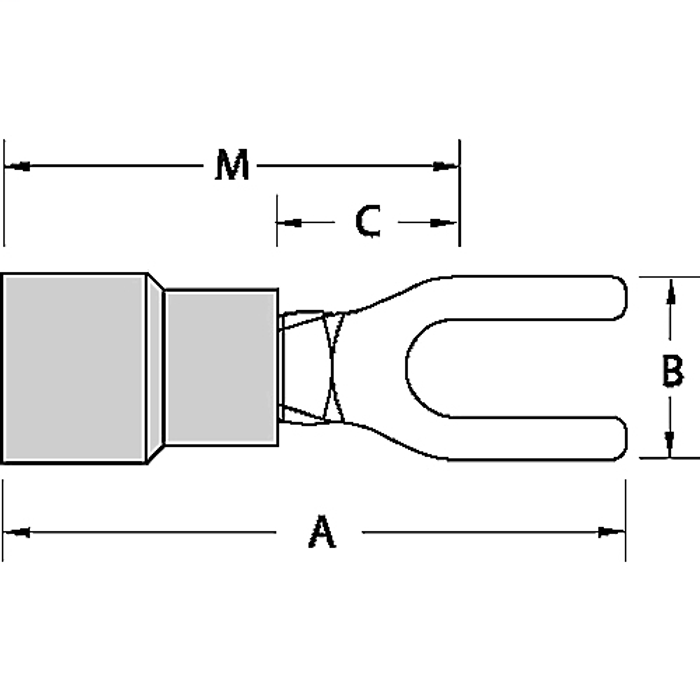

• A Inches: 1.09
• Alternate Package Qty: RC1337
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.38
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Insulated Vinyl
• M Inches: 0.9
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 7.1
• Package Length: 10.5
• Package Type: Standard
• Package Width: 8.9
• Product Finish: Electro Tin-Plated
• Product Group: Terminals
• Product Subgroup: Insulated Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #6
• T B Sold In Uom: Each
• T B Weight Per Uom: 5 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Equipment Terminations
• Industrial Electrical Systems
• Commercial Building Wiring
• Maintenance and Repair Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts insulated terminals deliver professional reliability with CSA and UL certifications, ensuring compliance with industry standards. The copper construction with electro tin-plated finish provides lasting conductivity, while the 105�C temperature rating and UL 94 V-0 flammability rating demonstrate the quality engineering that makes Thomas & Betts a trusted choice for electrical professionals.
