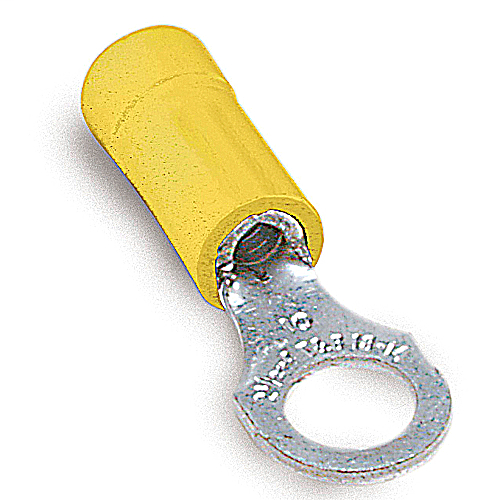

Thomas & Betts Insulated Ring Terminal 10-12 AWG Yellow Vinyl 3/8" Stud
Professional Electrical Connection Solution with Enhanced Insulation Protection
Thomas & Betts delivers reliable electrical connectivity with this insulated ring terminal designed for 10-12 AWG wire applications. Featuring yellow vinyl insulation with extended sleeve protection and copper construction with electro tin-plated finish, this terminal provides secure connections for 3/8" stud applications with 600V rating and 105�C temperature capability.
Professional Features & Benefits
- 10-12 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
- 600V Voltage Rating: Supports high-voltage applications with reliable insulation performance
- Yellow Vinyl Insulation: Provides color-coded identification and enhanced protection against environmental factors
- Copper Construction with Tin Plating: Ensures excellent conductivity and corrosion resistance for long-term reliability
- 3/8" Stud Compatibility: Designed for secure mounting on standard electrical hardware
- 105�C Temperature Rating: Maintains performance integrity in elevated temperature environments
- UL and CSA Certified: Meets rigorous safety standards for professional electrical installations
Technical Specifications

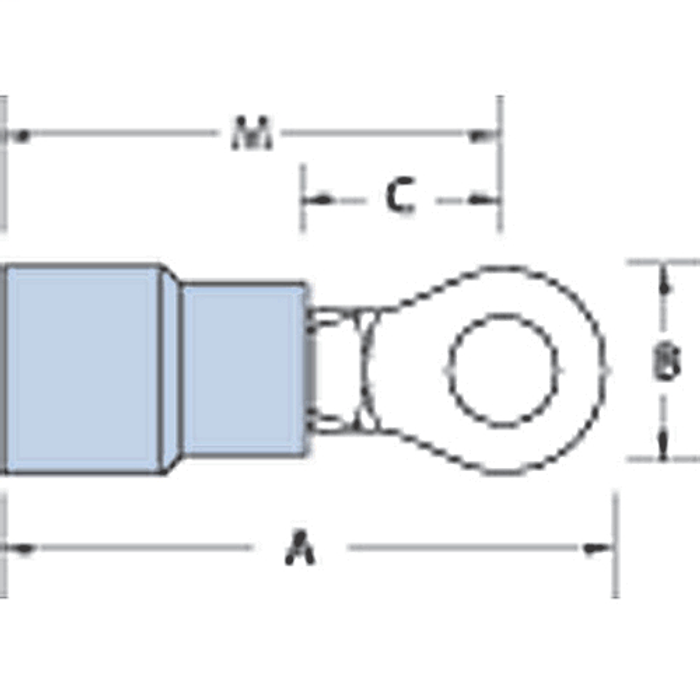

- A Inches: 1.29
- Alternate Package Qty: RC737
- Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches: 0.59
- C Inches: 0.44
- Color: Yellow
- Department: Electrical
- Flammability Rating: UL 94 V-0
- Inner Package: 50
- Insulation Type: Insulated Vinyl
- M Inches: 0.99
- Material: Copper
- Maximum Insulation Inches: 0.21
- Order Multiple: 50
- Outer Package: 250
- Package Height: 8.75
- Package Length: 15
- Package Type: Standard
- Package Width: 8.5
- Product Finish: Electro Tin-Plated
- Product Group: Connectors
- Product Subgroup: Terminals
- Recommended Tool: ERG4001
- Rohs Compliance: Yes
- Stock Thickness: 0.04
- Stud Size: 8-Mar
- T B Sold In Uom: Each
- T B Weight Per Uom: 5 lbs. per 1000
- Temperature Rating: 105�C
- Terminal Series: RC
- Voltage Rating: 600V
- Wire Range: 10-Dec
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Electrical Panel Connections
- Motor Control Centers
- Industrial Equipment Wiring
- Commercial Electrical Systems
- Control Circuit Applications
- Grounding and Bonding Connections
- Maintenance and Repair Operations
Why Choose Thomas & Betts Quality?
Thomas & Betts terminals feature brazed seam barrel construction with serrated design for high pull-out value and extended PVC insulation sleeve for protection and stress relief at the wire flex point. With UL and CSA certifications, UL 94 V-0 flammability rating, and RoHS compliance, these terminals deliver the reliability and safety standards required for professional electrical installations.
Manufacturer Resources
Product Specs
- A Inches :
- 1.29
- Alternate Package Qty:
- RC737
- Application Tools:
- WT145C, WT2000, WT112M, ERG4001, ERG4003
- B Inches :
- 0.59
- C Inches :
- 0.44
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 50
- Insulation Type:
- Insulated Vinyl
- M Inches :
- 0.99
- Material:
- Copper
- Maximum Insulation Inches :
- 0.21
- Order Multiple:
- 50
- Outer Package:
- 250
- Package Height:
- 8.75
- Package Length:
- 15
- Package Type:
- Standard
- Package Width:
- 8.5
- Product Group:
- Connectors
- Recommended Tool:
- ERG4001
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.04
- Stud Size:
- 8-Mar
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 5 lbs. per 1000
- Temperature Rating:
- 105°C
- Terminal Series:
- RC
- Voltage Rating:
- 600V
- Wire Range:
- 10-Dec
- Department:
- Electrical
- Product Subgroup:
- Terminals
- Product Finish:
- Electro Tin-Plated
- Product Color:
- Yellow
