Thomas & Betts Insulated Vinyl Ring Terminal 12-10 AWG Wire Range #8 Stud Size Yellow

Thomas & Betts Insulated Vinyl Ring Terminal 12-10 AWG Wire Range #8 Stud Size Yellow

Professional-Grade Electrical Connection Terminal with Enhanced Insulation Protection

Thomas & Betts delivers reliable electrical connectivity with this insulated vinyl ring terminal designed for 12-10 AWG wire range and #8 stud size applications. Featuring self-insulated PVC construction with extra-length sleeve protection and brazed seam barrel with serrations for superior pull-out strength, this yellow-coded terminal ensures secure connections in professional electrical installations.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• #8 Stud Size: Provides secure mechanical connection to standard electrical hardware and equipment
• Insulated Vinyl Construction: Self-insulated PVC sleeve with extra length protects against electrical contact and relieves bending stress
• Brazed Seam Barrel: Serrated design ensures high pull-out value and reliable mechanical connection strength
• 600V Voltage Rating: Suitable for standard electrical system voltages with professional-grade performance
• 105�C Temperature Rating: Maintains reliable performance in elevated temperature electrical environments
• UL and CSA Certified: Meets rigorous safety and performance standards for professional electrical applications

Technical Specifications

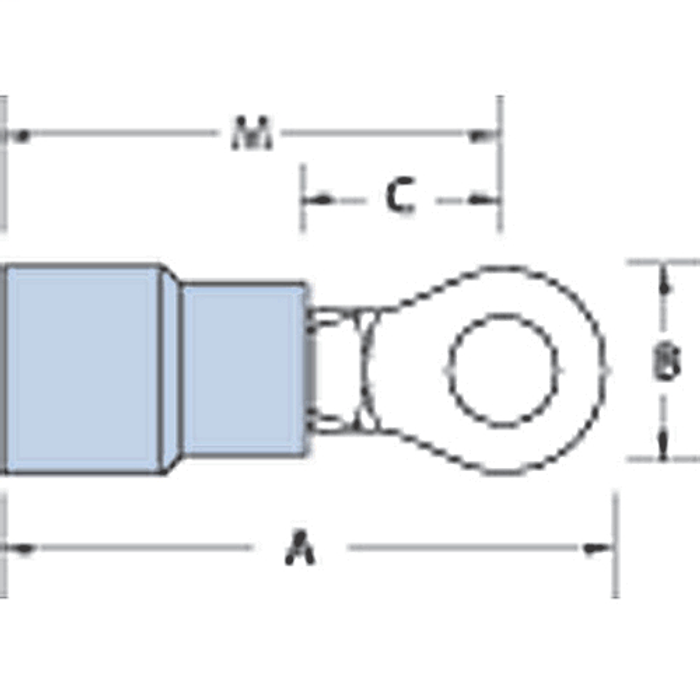

• A Inches: 1.06
• Alternate Package Qty: RC777
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.31
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Insulated Vinyl
• M Inches: 0.9
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.9
• Package Length: 14.8
• Package Type: Standard
• Package Width: 9.3
• Product Finish: Electro Tin-Plated
• Product Group: Connectors
• Product Subgroup: Terminals
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: #8
• T B Sold In Uom: Each
• T B Weight Per Uom: 6.25 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Electrical Installations
• Commercial Building Wiring
• Industrial Control Panels
• Motor Control Centers
• Electrical Equipment Connections
• Panel Board Terminations
• Maintenance and Repair Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts terminals deliver proven reliability with UL and CSA certifications, ensuring compliance with professional electrical standards. The electro tin-plated copper construction with UL 94 V-0 flammability rating and 105�C temperature capability provides long-lasting performance in demanding electrical environments.
