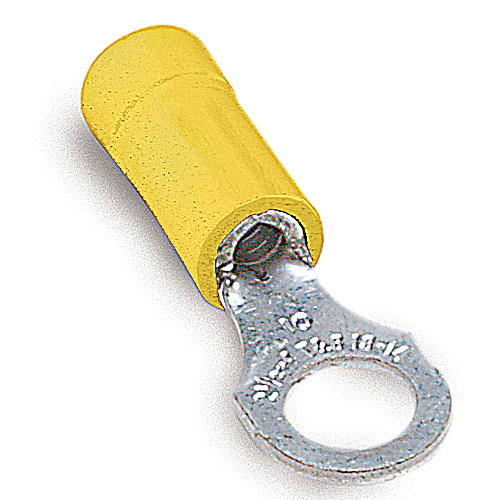

Thomas & Betts Insulated Ring Terminal 12-10 AWG Yellow Vinyl 600V

Thomas & Betts Insulated Ring Terminal 12-10 AWG Yellow Vinyl 600V

Professional Insulated Ring Terminal for Secure Electrical Connections

Thomas & Betts delivers reliable electrical connectivity with this insulated ring terminal designed for 12-10 AWG wire applications. Featuring yellow vinyl insulation with extended sleeve length for enhanced protection and stress relief at the wire flex point, this copper terminal provides secure connections rated for 600V service. The electro tin-plated finish and brazed seam barrel with serrations ensure high pull-out values and long-lasting performance in professional electrical installations.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Voltage Rating: Suitable for commercial and industrial electrical systems requiring higher voltage capacity
• Yellow Vinyl Insulation: Color-coded identification with extended sleeve length provides protection and stress relief at wire connections
• Copper Construction: Superior conductivity with electro tin-plated finish for corrosion resistance and reliable performance
• Brazed Seam Barrel: Serrated design ensures high pull-out values and secure mechanical connections
• 105�C Temperature Rating: Handles elevated operating temperatures in demanding electrical environments
• UL and CSA Certified: Meets rigorous safety standards for professional electrical installations

Technical Specifications

• A Inches: 1.16
• Alternate Package Qty: RC717
• Application Tools: WT145C, WT2000, WT112M, ERG4001, ERG4003
• B Inches: 0.5
• C Inches: 0.27
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-0
• Inner Package: 50
• Insulation Type: Insulated Vinyl
• M Inches: 0.9
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.1
• Package Length: 12.1
• Package Type: Standard
• Package Width: 10.3
• Product Finish: Electro Tin-Plated
• Product Group: Hardware
• Product Subgroup: Rings
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 6.25 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Control Panels
• Motor Control Centers
• Distribution Equipment
• Electrical Maintenance and Repair
• Professional Electrical Contracting
• Equipment Grounding Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver proven reliability with UL and CSA certifications ensuring compliance with professional electrical standards. The 105�C temperature rating and UL 94 V-0 flammability rating provide confidence in demanding applications, while RoHS compliance supports environmental responsibility in modern electrical installations.
