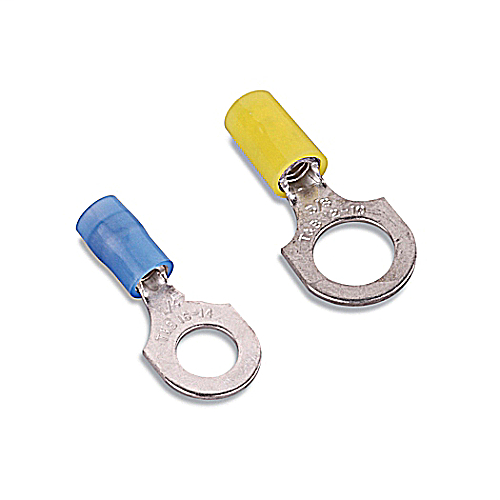

Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG 1/4" Stud Yellow 50-Pack

Thomas & Betts Insulated Nylon Ring Terminal 12-10 AWG 1/4" Stud Yellow 50-Pack

Professional Electrical Connection Solution with UL/CSA Certification

Thomas & Betts delivers reliable electrical connections with this insulated nylon ring terminal designed for 12-10 AWG wire applications. Featuring self-insulated construction with high dielectric-strength nylon sleeves and an inner bronze insulation grip sleeve that lengthens the flexing radius of the conductor and eliminates conductor creep. UL and CSA certified with 600V voltage rating and 105�C temperature rating for professional electrical installations.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire gauges for versatile electrical connection applications
• 600V Voltage Rating: Provides reliable performance in commercial and industrial electrical systems
• Insulated Nylon Construction: High dielectric-strength nylon sleeves ensure safe operation and prevent accidental contact
• Bronze Insulation Grip: Inner sleeve lengthens conductor flexing radius and eliminates conductor creep for long-term reliability
• 105�C Temperature Rating: Maintains performance in elevated temperature environments typical of electrical equipment
• UL/CSA Certified: Meets rigorous safety standards for professional electrical installations
• Electro Tin-Plated Finish: Copper construction with tin plating provides excellent conductivity and corrosion resistance

Technical Specifications

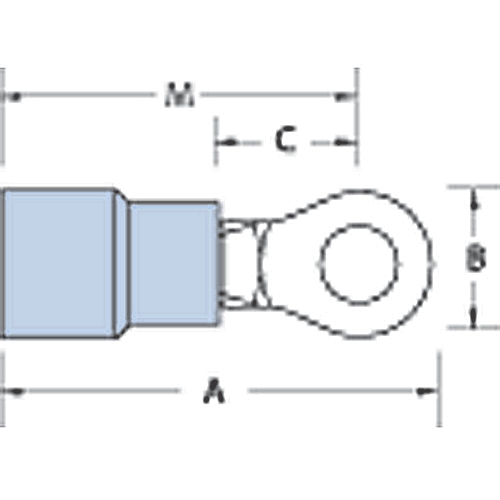

• A Inches: 1.12
• Alternate Package Qty: RC713
• Application Tools: WT2000, WT112M, WT145C, ERG4001, ERG4003, WT145A
• B Inches: 0.53
• C Inches: 0.32
• Color: Yellow
• Department: Electrical
• Flammability Rating: UL 94 V-2
• Inner Package: 50
• Insulation Type: Insulated Nylon
• M Inches: 0.86
• Material: Copper
• Maximum Insulation Inches: 0.21
• Order Multiple: 50
• Outer Package: 250
• Package Height: 8.8
• Package Length: 15
• Package Type: Standard
• Package Width: 9.3
• Product Finish: Electro Tin-Plated
• Product Group: Electrical Boxes
• Product Subgroup: Electrical Boxes
• Recommended Tool: ERG4001
• Rohs Compliance: Yes
• Stock Thickness: 0.04
• Stud Size: 4-Jan
• T B Sold In Uom: Each
• T B Weight Per Uom: 5 lbs. per 1000
• Temperature Rating: 105�C
• Terminal Series: RC
• Voltage Rating: 600V
• Wire Range: 10-Dec

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Electrical Installations
• Industrial Control Panels
• Motor Control Centers
• Distribution Equipment
• Electrical Maintenance and Repair
• Professional Electrical Contracting
• Equipment Grounding Applications

Why Choose Thomas & Betts Quality?

Thomas & Betts ring terminals deliver professional-grade reliability with UL and CSA certifications ensuring compliance with electrical safety standards. The robust copper construction with electro tin-plated finish and specialized nylon insulation system provides long-term performance in demanding electrical environments, backed by the trusted Thomas & Betts reputation for electrical connection solutions.
