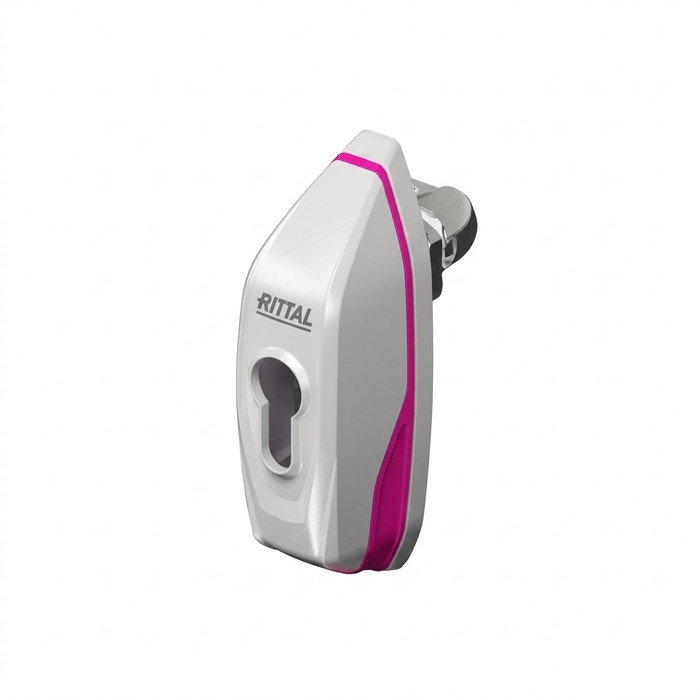

Rittal 2537100 Mini-Comfort Handle for AX Enclosures, Die-Cast Zinc
The Rittal Mini-Comfort Handle AX (2537100) is a swivel-open cam lock handle designed for AX with cam lock, carbon sheet, AX IT with cam lock, KX E-Box, and VX partial door enclosures. Constructed from die-cast zinc with a powder-coated RAL 7035 finish, this handle is prepared for version A lock inserts and semi-cylinder installation, and it carries a UL 50E Type 1, 3R, 4, 12 rating for dependable performance across demanding enclosure environments.
Key Features
- Enclosure Compatibility: Fits AX with cam lock, carbon sheet, AX IT with cam lock, KX E-Box, and VX partial door enclosures.
- Durable Construction: Die-cast zinc body delivers long-term strength and resistance to wear in industrial settings.
- Versatile Lock Preparation: Prepared for version A lock inserts and installation of 40 mm or 45 mm total-length semi-cylinders (per DIN 18 252), or safety and push-button lock inserts with a 40 mm length.
- Type Rating: UL 50E Type 1, 3R, 4, 12 rated for use across a range of indoor and outdoor enclosure protection needs.
- Finish: Powder-coated surface in RAL 7035 for a clean, corrosion-resistant, uniform appearance.
- Simple Operation: The lock opens by swivelling the unlocked handle, allowing fast, tool-free access once unlocked.
Certifications & Compliance
- UL 50E Type 1, 3R, 4, 12 Rated
Technical Specifications
- Version: For lock inserts and semi-cylinder.
- Suitable for Enclosure Type: AX with cam lock, carbon sheet, AX IT with cam lock, KX E-Box, VX partial door.
- Material: Die-cast zinc.
- Lock Version: Prepared for version A lock inserts, installation of semi-cylinders 40 or 45 mm total length (per DIN 18 252), or safety and push-button lock inserts with a length of 40 mm.
- Surface Finish: Powder-coated.
- Packaging Unit: 1 pc(s).
- Type Rating (UL 50E): Type 1, 3R, 4, 12.
- Color: RAL 7035.
- Weight/Packaging Unit: 0.297 kg.
Typical Applications
- Electrical Enclosure Access and Security
- Industrial Control Panel Cabinets
- Cam Lock Enclosure Systems
- Outdoor and Wet-Location Enclosure Installations
- KX E-Box and VX Partial Door Retrofits
Why Rittal?
Rittal builds the Mini-Comfort Handle AX from die-cast zinc with a powder-coated RAL 7035 finish for consistent, corrosion-resistant performance. With a UL 50E Type 1, 3R, 4, 12 rating and compatibility across AX, AX IT, KX E-Box, and VX partial door enclosures, it delivers the code-compliant reliability professional electrical installations demand.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Enclosure Lock & Handle
- Product Finish:
- Powder-Coated
- Standards:
- UL 50E Type 1, 3R, 4, 12
- Product Material:
- Die-Cast Zinc
- Product Color:
- RAL 7035
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Subgroup:
- Enclosure Accessories
Rittal 2537100 – Frequently Asked Questions
1) Which Rittal enclosures does the 2537100 Mini-Comfort Handle fit?
The Mini-Comfort Handle 2537100 is made for AX enclosures with cam lock (including carbon sheet), AX IT with cam lock, KX E-Box, and VX partial door enclosures. It replaces the cam lock in those doors with a swivel-open handle, so the door opening you already have is the prep it mounts into. If your cabinet is a different Rittal line, this is not the handle for it.
2) What lock inserts or cylinders can I put in the Rittal 2537100 handle?
It comes prepared for version A lock inserts, or for a semi-cylinder of 40 mm or 45 mm total length per DIN 18 252. Safety and push-button lock inserts are also accepted at 40 mm length. The handle ships without the insert, so the cylinder or insert is a separate order decision based on how you key the rest of the panels.
3) Can the Rittal Mini-Comfort Handle be used on an outdoor or washdown enclosure?
Yes. The handle carries a UL 50E Type 1, 3R, 4, 12 rating, which covers indoor general purpose, rain-exposed outdoor, hosedown/watertight, and dust and dripping-liquid duty. It only holds that rating as part of a correspondingly rated enclosure door, so the cabinet itself has to be rated for the environment too.
4) How does the Mini-Comfort Handle operate once it is unlocked?
Unlock the insert, then swivel the handle out and turn it. No tool is needed after unlocking, which is the practical difference from a plain cam lock that needs a double-bit or triangle key turned every time. For techs opening the same panel repeatedly through a shift, that is the reason to swap.
5) Can I key several Rittal AX panels alike with this handle?
Yes, by choosing the insert rather than the handle. Because the 2537100 accepts version A inserts or a DIN 18 252 semi-cylinder in 40 mm or 45 mm, you can fit the same semi-cylinder keyway used on the rest of the building's doors across every panel, and the handle hardware stays identical.
6) Will the Rittal 2537100 handle corrode in a plant environment?
The body is die-cast zinc with a powder-coated finish in RAL 7035 light grey, which is the standard Rittal enclosure grey, so it blends with AX and VX doors. Zinc plus powder coat holds up in typical industrial and wet-location service, which is consistent with its Type 4 and Type 12 rating.
7) How many handles come in a Rittal 2537100 pack?
One piece per packaging unit, model 2537100, at 0.297 kg per unit. If you are standardizing a row of panels, order one per door.
