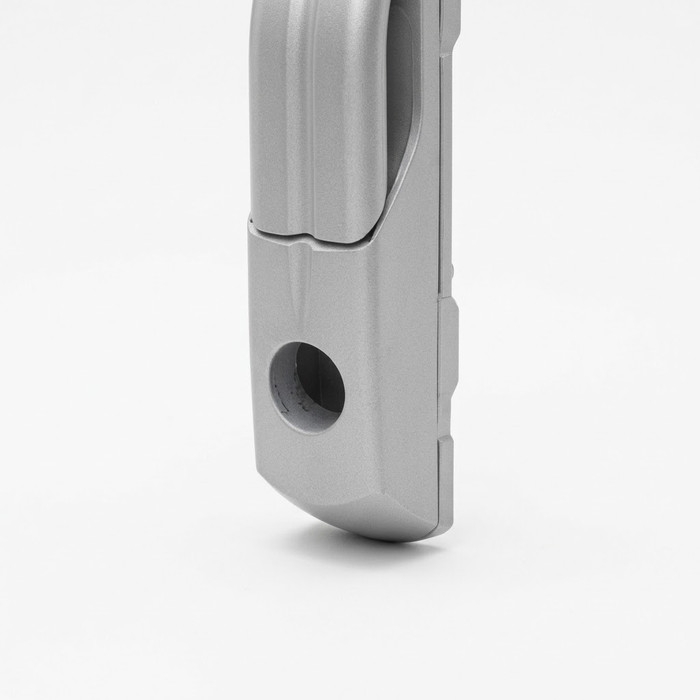

Rittal 8611020 Comfort Handle, Die-Cast Zinc, Powder-Coated

Rittal 8611020 Comfort Handle, Die-Cast Zinc, Powder-Coated

(No reviews yet) Write a Review

Model: 8611020

In Stock (leaves warehouse same day if ordered before 3pm ET)

$144.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal 8611020 Comfort Handle, Die-Cast Zinc, Powder-Coated

The Rittal 8611020 Comfort Handle is a die-cast zinc enclosure handle engineered with folding technology, eliminating the need for swiveling space so the door surface stays completely clear for mounted equipment. Finished in powder-coated RAL 7035, this handle installs quickly thanks to its snap-on handle system and is prepared for F version lock inserts as well as safety and push-button lock inserts up to 26.5 mm in length. It is suitable for TS, TS IT, VX SE, PC enclosure door, IW, TS 8 stainless steel, SE stainless steel, and EL 3-part 18 - 21 U enclosure systems, making it a versatile upgrade or replacement handle for professional enclosure builds.

Key Features

  • Folding Design: The folding technology requires no swiveling space, keeping the door surface fully clear for installed equipment.
  • Durable Construction: Die-cast zinc body construction provides long-term strength and dimensional stability for daily industrial use.
  • Snap-On Installation: Easy, tool-friendly installation thanks to the snap-on handle mounting system.
  • Lock-Ready Design: Prepared for F version lock inserts as well as safety and push-button lock inserts with a length of up to 26.5 mm.
  • Powder-Coated Finish: Powder-coated in RAL 7035 for a durable, corrosion-resistant, and uniform appearance.
  • Broad Enclosure Compatibility: Suitable for TS, TS IT, VX SE, PC enclosure door, IW, TS 8 stainless steel, SE stainless steel, and EL 3-part 18 - 21 U enclosures.
  • Mounting Tip: A handle adapter is required when fitting to a TS, VX SE glazed door, PC lower door, or IW designer door.

Technical Specifications

  • Version: For lock inserts
  • Suitable for Enclosure Type: TS, TS IT, VX SE, PC enclosure door, IW, TS 8 stainless steel, SE stainless steel, EL 3-part 18 - 21 U
  • Lock Compatibility: Prepared for F version lock inserts as well as safety and push-button lock inserts with a length of up to 26.5 mm
  • Material: Die-cast zinc
  • Surface Finish: Powder-coated
  • Color: RAL 7035
  • E-Number (Sweden): E3404302
  • Packaging Unit: 1 pc(s)
  • Weight/Packaging Unit: 0.74 kg

Typical Applications

  • Industrial Enclosure and Control Panel Doors
  • TS and VX SE Enclosure Systems
  • Retrofit Handle Replacement on Existing Enclosures
  • Equipment Layouts Requiring Clear Door Surfaces for Component Mounting
  • Facilities Standardizing on F Version or Safety/Push-Button Lock Inserts
  • New Enclosure Builds and Panel Upgrades

Why Rittal?

Rittal builds the 8611020 Comfort Handle from die-cast zinc with a powder-coated RAL 7035 finish, delivering a handle solution that holds up to daily industrial use while keeping enclosure doors free of swiveling clearance. Its snap-on installation and broad compatibility across TS, VX SE, PC, IW, and stainless steel enclosure lines make it a dependable, code-conscious choice for professionals standardizing on Rittal enclosure hardware.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Enclosure Handle
Product Finish:
Powder-Coated
Product Material:
Die-Cast Zinc
Product Color:
RAL 7035
Department:
Electrical
Product Group:
Wiring Devices

Rittal 8611020 – Frequently Asked Questions

1) Will the Rittal 8611020 Comfort Handle fit a TS or VX SE enclosure door?
Yes. The 8611020 Comfort Handle is made for TS, TS IT, VX SE, PC enclosure door, IW, TS 8 stainless steel, SE stainless steel, and EL 3-part 18 - 21 U enclosure systems. One exception worth knowing before you order: if you are fitting it to a TS or VX SE glazed door, a PC lower door, or an IW designer door, you also need a handle adapter. On a standard sheet steel door it snaps straight on.
2) What lock inserts can I use with the Rittal 8611020 handle?
The handle ships prepared for F version lock inserts, and it also takes safety and push-button lock inserts up to 26.5 mm in length. That length is the limiting number, so if you are standardizing a facility on one insert type, check the insert length before you commit to a quantity. The lock insert is a separate item from the handle itself.
3) Can I retrofit the 8611020 onto an existing Rittal enclosure, or is it new-build only?
Retrofit is a normal use for it. The snap-on handle system means it mounts without special tooling, and it is listed for the TS, TS IT, VX SE, PC, IW, and stainless steel TS 8 / SE lines, so replacing a damaged or non-locking handle on an installed panel is straightforward. Glazed doors, PC lower doors, and IW designer doors are the cases that need the handle adapter as well.
4) Does this Rittal handle need swing clearance in front of the enclosure door?
No. The 8611020 uses a folding design, so it needs no swiveling space and the door face stays clear for mounted equipment. That is the practical reason to pick it over a swing-out handle in a tight aisle or on a door crowded with pilot devices and meters.
5) What is the Rittal Comfort Handle made of, and will it hold up in an industrial plant?
Body is die-cast zinc with a powder-coated finish, which is what gives it dimensional stability under daily handling and resistance to corrosion on a shop floor. The color is RAL 7035, the standard light grey used across Rittal enclosure lines, so it matches existing doors rather than standing out as a replacement part.
6) How many handles come in a Rittal 8611020 pack?
Packaging unit is 1 piece, so one order line equals one handle. If you are re-handling a row of panels, order per door. Weight per packaging unit is 0.74 kg.
7) What is the Rittal part number and MPN for the Comfort Handle in RAL 7035?
The manufacturer part number is 8611020, sold as the Rittal Comfort Handle for lock inserts, die-cast zinc, powder-coated RAL 7035. In Sweden it also carries E-number E3404302.
