Rittal CP Series Support Section, Extruded Aluminum, 62 Series

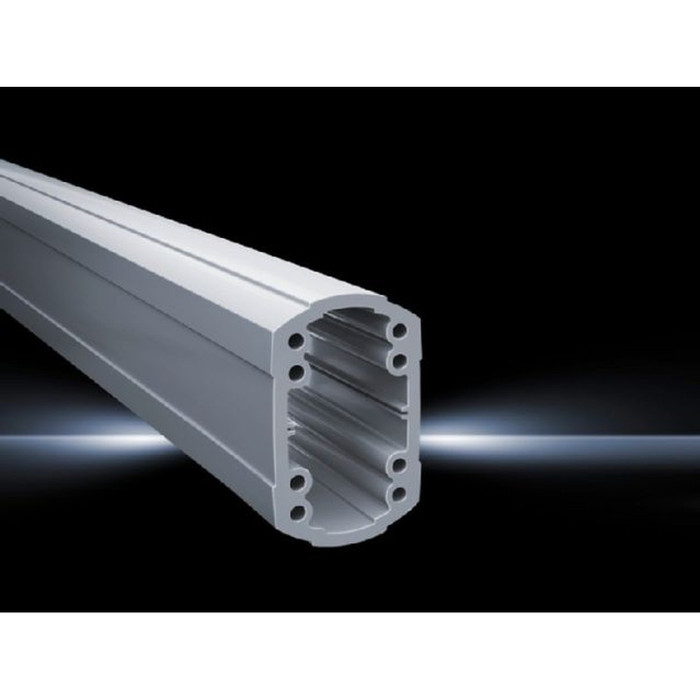

The Rittal CP Series Support Section, part of the 62 Series, is an extruded aluminum section engineered for mounting to Rittal connection components and is available in CP 60, CP 120, and CP 180 arm system configurations to fit varying panel-building requirements. It attaches with 4 self-tapping screws seated in an integrated screw channel, so no thread-tapping is required during installation. Each section may be cut to any required length on site and forms a closed cable duct with a large cross-section for organized, protected cable routing inside panels and enclosures. Finished in RAL 7035, it is designed to match Rittal enclosure and panel-building systems for a consistent, professional appearance.

Key Features

  • Arm System Options: Available in CP 60, CP 120, and CP 180 configurations within the 62 Series platform, allowing the right support-section reach to be selected for each panel layout.
  • Custom-Length Cutting: May be cut to any required length on site, with no thread-tapping required, simplifying fabrication and fit-up.
  • Durable Construction: Extruded aluminum construction provides strength and long-term durability in industrial panel environments.
  • Screw-Channel Attachment: Attaches to connection components using 4 self-tapping screws seated in the integrated screw channel, eliminating the need for pre-tapped threads.
  • Closed Cable Duct Design: Functions as a closed cable duct with a large cross-section, supporting organized, protected routing of panel wiring.
  • Finish: RAL 7035 finish provides a consistent appearance alongside other Rittal enclosure and support system components.
  • Series: Part of the Rittal CP support section line within the 62 Series platform.
  • Packaging: Supplied as a single support section, packaged 1 piece per unit.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Control Panel and Enclosure Wiring
  • Cable Duct and Raceway Systems
  • Industrial Automation Panel Building
  • Connection Component Mounting Systems
  • Custom-Length Cable Management Installations

Why Rittal?

Rittal's CP Series support sections combine extruded aluminum construction with a consistent RAL 7035 finish for professional panel-building work, spanning the CP 60, CP 120, and CP 180 configurations to suit a range of routing needs. Their closed cable duct design and screw-channel attachment method make them a reliable, straightforward choice for organized cable management across industrial and commercial enclosure installations, and cut-to-length flexibility helps installers fit each section precisely to its panel layout without special tools. As part of the 62 Series platform, these support sections are intended to work alongside compatible Rittal connection components for a coordinated panel-building system.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Enclosure Rail & Mounting Hardware
Series:
62 Series
Product Material:
Extruded Aluminum
Product Color:
RAL 7035
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Finish:
RAL 7035
Product Subgroup:
Enclosure Accessories

Rittal 6212025 – Frequently Asked Questions

1) What is the difference between the Rittal CP 60, CP 120, and CP 180 support sections?
They are the three arm system configurations of the Rittal CP Series support section in the 62 Series, ordered as part numbers 6206100 (CP 60), 6212025 (CP 120), and 6218210 (CP 180). The configuration you pick has to match the CP arm system already in use on the enclosure, since the section mounts to Rittal connection components in that same system. Pick the one matching your arm system, then cut the section to the reach your panel layout needs.
2) Can the Rittal CP support section be cut to length on site?
Yes. The extruded aluminum section is meant to be cut to any required length in the field, and because the fasteners are self-tapping into an integrated screw channel, there is no thread-tapping needed after the cut. That means no special tooling at the bench, just a clean cut and four screws.
3) Does the Rittal CP support section route cable, or is it only a structural arm?
It does both. The extruded profile forms a closed cable duct with a large cross-section, so panel wiring runs enclosed and protected inside the support section itself rather than in a separate raceway alongside it.
4) How does the Rittal CP support section attach to the connection components?
Attachment is with 4 self-tapping screws that seat in the section's integrated screw channel. No pre-tapped threads and no inserts are required, which is what makes cutting the section anywhere along its length practical.
5) Will the RAL 7035 finish on this Rittal support section match my existing enclosures?
RAL 7035 is the standard light grey Rittal uses across its enclosure and panel-building systems, so the support section matches Rittal cabinets and support components finished the same way. If your enclosures are a different RAL number or a custom colour, expect a visible difference.
6) Is the Rittal 6206100 sold individually or in a multi-pack?
Each order is a single support section, packaged one piece per unit. Multiple runs on a panel means multiple sections.
7) Is the Rittal CP support section aluminum or steel?
Extruded aluminum. That keeps the arm light for support-arm duty while holding the closed duct profile and screw channel shape through the full length of the extrusion, and it holds up in industrial panel environments.
