RJ-45/RJ-11 Data/Telco Termination Kit
Features

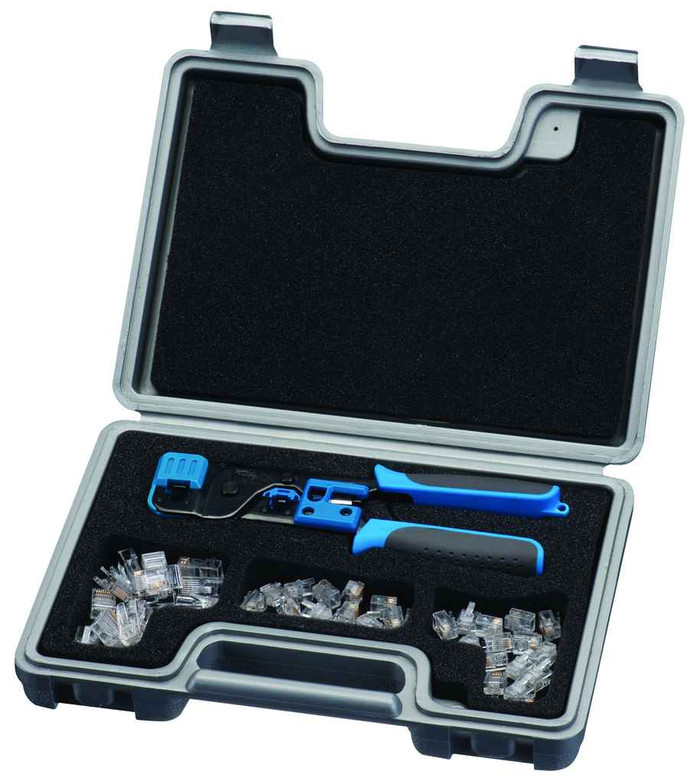

- Carrying case with foam insert
- 15 RJ-11(RJ-12) Modular plugs (6P6C)
- 15 RJ-45 Cat 5e Modular Plugs (8P8C)
- 30-496 Telemaster™ Modular Plug Crimp Tool for RJ-11/RJ-45 Plugs
- For RJ-45 Cat 5e and Cat 6 Terminations plus voice applications
- 30-496 Telemaster Cuts, Strips, and Crimps RJ-45 and RJ-11 modular plugs
- 15 RJ-11 Modular Plugs (6P4C)
Manufacturer Resources
Product Specs
- Product Group:
- Wiring Devices
- Department:
- Electrical
- Product Subgroup:
- New Ideal
- Product Type:
- Data Termination Kit
Ideal Industries 33-704 – Frequently Asked Questions
1) What exactly comes in the IDEAL 33-704 termination kit?
The IDEAL 33-704 kit ships in a carrying case with a foam insert and holds the 30-496 Telemaster modular plug crimp tool plus 45 plugs: 15 RJ-45 Cat 5e 8P8C plugs, 15 RJ-11/RJ-12 6P6C plugs, and 15 RJ-11 6P4C plugs. The Telemaster cuts, strips, and crimps both RJ-45 and RJ-11 modular plugs, so one tool covers data and voice work.
2) Can I use the IDEAL 33-704 kit to terminate Cat 6 cable?
The crimp tool in the 33-704 handles RJ-45 Cat 5e and Cat 6 terminations as well as voice applications. The plugs supplied in the kit, though, are Cat 5e 8P8C. For Cat 6 jobs you'd crimp Cat 6 rated plugs with the included 30-496 Telemaster rather than the plugs in the case.
3) Does the 33-704 kit cover both phone and network drops, or do I need two separate crimpers?
One crimper covers both. The 30-496 Telemaster in the 33-704 crimps 8P8C RJ-45 data plugs and 6-position RJ-11/RJ-12 voice plugs, and it also cuts and strips the cable, so a tech doing a mix of phone and ethernet drops in a building carries a single tool.
4) What is the difference between the 6P6C and 6P4C plugs included in the IDEAL 33-704?
Both are the same RJ-11 body size, but the 6P6C plugs have all six contacts loaded and the 6P4C plugs have four. 6P4C is the standard single-line telephone plug on 4-conductor station wire; 6P6C (often called RJ-12) is used where you need six conductors, such as two-line sets or keyed systems. The kit gives you 15 of each so you are not guessing at the jobsite.
5) What part number do I order for the IDEAL RJ-45/RJ-11 data and telco termination kit?
Order IDEAL Industries 33-704. That is the single model for the RJ-45/RJ-11 data/telco termination kit, and the tool inside it is IDEAL's 30-496 Telemaster if you ever need to replace just the crimper.
6) Will the plugs in the IDEAL 33-704 work on solid conductor cable or only stranded patch cable?
The kit lists the plugs as RJ-45 Cat 5e 8P8C and RJ-11 6P6C/6P4C without specifying a conductor style, so match the plug to your cable rather than assuming. If you are terminating solid horizontal cable, order solid-conductor rated plugs and crimp them with the included 30-496 Telemaster, which is rated for both RJ-45 and RJ-11 modular plugs.
7) Is the IDEAL 33-704 a field kit I can throw in a truck, or a bench set?
It's a field kit. Everything, tool and all 45 plugs, sits in a carrying case with a foam insert, which is what makes it practical for a contractor moving between units or a maintenance tech handling drops across a property.
