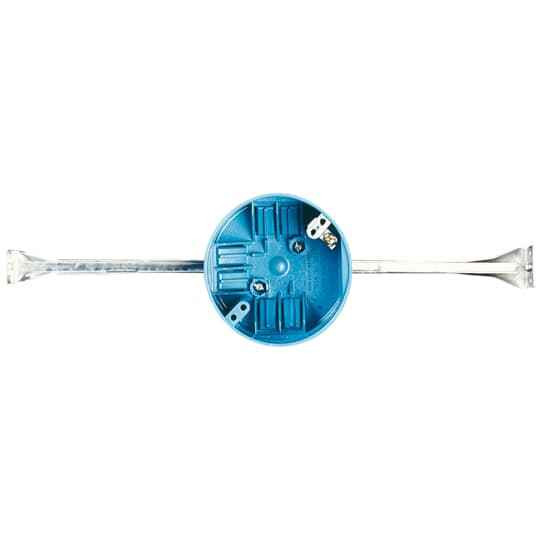

Thomas & Betts B620HG-UPC RND CEIL-BX 20CU DIA4IN PC GRND LUG

Carlon Round Ceiling Box 20 Cubic Inch Polycarbonate with Ground Lug

(No reviews yet) Write a Review

Model: B620HG-UPC
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$83.62
$8.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Thomas & Betts Round Ceiling Box 20 Cubic Inch Polycarbonate with Ground Lug

Professional Electrical Ceiling Box with Grounding Lug

The Thomas & Betts Round Ceiling Box delivers reliable ceiling mounting performance for electrical installations requiring secure fixture support. This polycarbonate ceiling box provides dependable performance designed for electrical contractors, industrial facilities, and commercial installations, offering the trusted performance and quality that professionals expect from America's established electrical infrastructure manufacturer.

Professional Features & Benefits

Polycarbonate Construction

  • Durable Polycarbonate Material - Provides excellent impact resistance and long-term durability for ceiling installations
  • 20 Cubic Inch Capacity - Offers ample wiring space for standard ceiling fixture connections and wire management
  • Integrated Ground Lug - Ensures proper electrical grounding for safe installation and code compliance
  • Round Design Configuration - Optimized for ceiling fixture mounting with secure attachment points

Installation & Mounting

  • Swing Clamp Mounting - Provides secure attachment to ceiling structures with adjustable positioning
  • Professional Ceiling Installation - Designed for reliable fixture support in commercial and residential applications
  • Electrical Code Compliance - Meets UL standards for safe electrical installations

Technical Specifications

Material: Polycarbonate construction, Volume: 20 cubic inches, Product Type: Ceiling Boxes, Product Group: Connectors, Product Subgroup: Lugs, Mounting Type: Swing clamps, Department: Electrical, Standards: UL e11461, Color: Blue

Installation & Usage

  1. Select appropriate ceiling location ensuring adequate structural support for fixture weight
  2. Position ceiling box using swing clamp mounting system for secure attachment
  3. Connect electrical wiring through appropriate entry points maintaining proper wire management
  4. Utilize integrated ground lug for proper electrical grounding connection
  5. Verify all connections are secure and meet local electrical code requirements
  6. Install ceiling fixture or device ensuring proper mounting to box structure

Professional Applications

Ideal for:

  • Ceiling Fixture Installation - Light fixtures, fans, and electrical devices requiring ceiling mounting
  • Commercial Construction - Office buildings, retail spaces, and commercial facility electrical systems
  • Residential Electrical - Home ceiling installations for lighting and electrical fixtures
  • Industrial Facilities - Manufacturing and warehouse ceiling electrical installations
  • Electrical Contractor Applications - Professional installations requiring reliable ceiling box solutions
  • Facility Maintenance - Replacement and upgrade installations in existing electrical systems
  • Electrical Infrastructure - Building electrical systems requiring secure ceiling mounting points
  • Code Compliance Projects - Installations requiring UL-listed electrical components

Polycarbonate Construction Advantage

Thomas & Betts selection of polycarbonate material provides superior impact resistance and durability compared to standard materials, ensuring long-term performance in ceiling installations while maintaining excellent electrical insulation properties for safe electrical applications.

Why Choose Thomas & Betts Quality?

With decades of established experience in electrical infrastructure solutions, Thomas & Betts maintains unwavering commitment to professional quality standards and trusted reliability that electrical contractors and facility managers depend on for critical electrical installations and building infrastructure projects.

Manufacturer Resources

Product Specs

Idea Granular Category Code Igcc :
4448 >> Ceiling box
Number Of Knockouts:
0
Product Group:
Connectors
Product Type:
Ceiling Boxes
Selling Unit Of Measure:
each
Standards:
UL e11461
Volume:
20 in³
Department:
Electrical
Product Subgroup:
Lugs
Product Color:
Blue
Installation Category:
Swing clamps
Product Material:
Polycarbonate

Carlon B620HG-UPC – Frequently Asked Questions

1) Does the Thomas & Betts B620HG-UPC round ceiling box come with a ground lug, or do I add one?
The ground lug is built into the B620HG-UPC. It is a nonmetallic box, so there is no metal shell to bond through; the integral lug is where your equipment grounding conductor lands. That matters because a polycarbonate box gives you no continuity path of its own, and a metal fixture canopy mounted to it still needs its ground carried back to the branch circuit EGC. Wire the incoming ground to the lug and pigtail to the fixture from there.
2) How many conductors can I put in a 20 cubic inch ceiling box?
The box is 20 cubic inches, and NEC box fill is counted in volume per conductor size: 2.00 in3 each for 14 AWG, 2.25 for 12 AWG, 2.50 for 10 AWG. So 20 cubic inches works out to ten 14 AWG conductor allowances or eight at 12 AWG, before you subtract for devices, clamps, and grounds (all grounding conductors together count as one allowance, and a fixture stud or hickey counts as one). A typical switch leg plus a feed-through with a fixture is comfortable here; a four-way junction of 12 AWG home runs is not.
3) What are swing clamps on a ceiling box and can I install one in an existing finished ceiling?
Swing clamps are the retrofit mounting method: the clamps pivot out of the way as you push the box up through a cut hole in the drywall or plaster, then swing around and screw down to trap the box against the back of the finished surface. That is exactly what makes the B620HG-UPC an old-work box. No access above the ceiling and no joist or bar hanger needed. On new construction with the joists open you would normally nail or bracket-mount instead.
4) Can I hang a ceiling fan from a swing clamp nonmetallic ceiling box?
No. A drywall-supported swing clamp box is not a fan-rated outlet box and it is not a fixture-support box for anything heavy. NEC requires paddle fans to be supported by a box or assembly listed and marked for fan support, independently secured to the building structure. Use a fan-rated brace box for that. The B620HG-UPC is for lighting outlets and junction work where the load is carried by the ceiling surface and the clamps, not a rotating load.
5) Will a standard 4 inch round light fixture canopy cover this box?
The box is a round ceiling box with a 4 inch diameter, so standard 4 inch round fixture canopies and round blank covers land on it. Fixture mounting screws pick up the box's own bosses. If your existing fixture was mounted on an octagon box with a crossbar, plan to reuse or replace the crossbar to suit the round pattern.
6) Polycarbonate vs metal ceiling box: which should I use for a commercial lighting retrofit?
Polycarbonate buys you two things a steel box does not: it is an insulator, so there is no shell to bond and no chance of energizing the enclosure, and it takes impact without denting or rusting. What you give up is threaded entries and any structural load capacity. Rule of thumb on a retrofit: nonmetallic where you are working NM cable into a finished ceiling and hanging a light, metallic where you have conduit to land, need EMT continuity as your ground path, or the fixture weight needs real support.
7) Do I get one ceiling box or a carton when I order the B620HG-UPC?
Sold each. One box per unit, so order per opening rather than by carton count. There is one model on the part, B620HG-UPC, and it ships blue.
