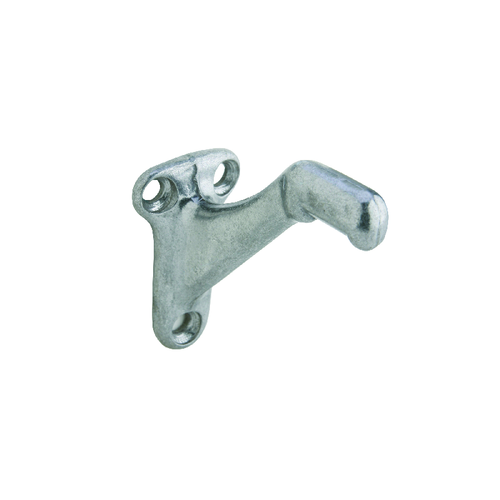

ROCKWOOD 702 Hand Rail Brackets
Material: Cast brass;
Finishes: Available in standard architectural finishes;
Fastner:
Wood rail
5/16 - 18 x 11/2" FH MS, anchor;
3 ea. #12 - 24 x 1" FH MS;
2 ea. #8 x 3/4" OH SMS;
1 ea. back plate;
Metal rail
5/16 - 18 x 11/2" FH MS, anchor;
3 ea. #12 - 24 x 1" FH MS;
2 ea. #8 - 32 x 3/4" OH MS;
1 ea. back plate.
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Other / Miscellaneous Hardware
- Fasteners:
- 3 ea. #12 x 2 FH WS;
- Subcategory:
- Auxiliary Hardware
- Product Subgroup:
- Handrail Brackets
- Product Type:
- Hand Rail Brackets
- Commercial/Residential:
- Commercial
- Product Model:
- 702
- Product Projection:
- 3-1/2"
- Product Category:
- Other / Miscellaneous Hardware
- Department:
- Door Hardware
Rockwood 702 626 – Frequently Asked Questions
1) How far off the wall does the Rockwood 702 handrail bracket hold the rail?
Projection on the 702 is 3-1/2 inches, measured wall face to rail. That is the number that decides whether your knuckles clear the wall and whether the assembly meets the clearance your inspector is looking for on a graspable handrail. If you need the rail tighter to the wall or further off it, the 3-1/2 inch projection is fixed on the 702, so pick a different bracket model rather than shimming it.
2) What finishes does the Rockwood 702 handrail bracket come in?
Five, all standard BHMA architectural finishes: 605 bright brass, 613 satin bronze oil-rubbed, 619 satin nickel, 625 bright chrome and 626 satin chrome. If you are matching brackets to existing door hardware in a building, 626 satin chrome is the usual commercial default and 619 satin nickel the common match for brushed-nickel packages. All five are the same cast brass bracket underneath.
3) Is the Rockwood 702 handrail bracket solid brass or plated pot metal?
Cast brass. That matters in two places: corridors and stairwells in schools, hospitals and hotels where a die-cast bracket eventually cracks at the arm, and coastal or pool environments where a zinc casting under plating blisters. Cast brass also means the finish is applied over brass, so wear at the rail contact point shows brass rather than white metal.
4) Do I need to buy screws separately for the Rockwood 702 handrail bracket?
No, the fastener pack comes with the bracket: the wall anchor screw, three #12-24 x 1 inch flat head machine screws, the two rail screws and the back plate. Rockwood also lists 3 each #12 x 2 inch flat head wood screws for the 702. The only thing you may still need is a wall anchor suited to your substrate if you are going into masonry or hollow block rather than wood.
5) Is the Rockwood 702 a commercial-grade handrail bracket or a residential one?
Commercial. Rockwood specifies the 702 for institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant work as well as higher-end residences. In practice that means it is the bracket you spec for a stairwell or corridor rail that gets daily public traffic, not a decorative grab rail.
6) How many Rockwood 702 brackets do I need for a run of handrail?
Order by your rail layout, not by the bracket. Each 702 is a single-point support with one 5/16-18 wall anchor, so it carries its share of the run between supports; spacing is set by the rail material and your local code, plus a bracket at each end and at any splice. Buy the finish once for the whole run, since all five 702 finishes are the same casting and mixing them across one stair is the usual field mistake.
