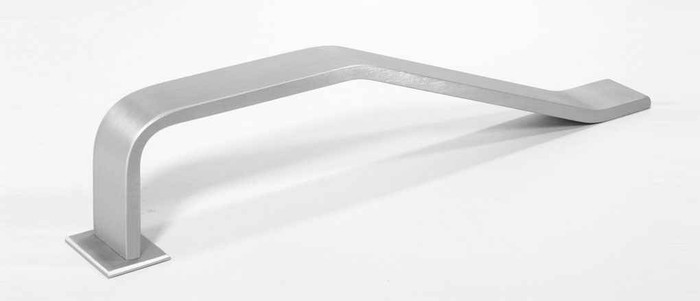

ROCKWOOD R115LPB Trim Protector Bars - Long Lever Handle
Material: Stainless steel;
Finishes: US32D;
Fastner: 1/4 - 20 x 2-1/4" thru bolt, 1/4 - 20 x 2" thru bolt, finish washers
(standard 1-3/4" door*)
Other: Made to order sizes available
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Trim and Latch Protection
- Product Type:
- Trim Protector Bars
- Subcategory:
- Door Plates, Door Edges & Protectors
- Commercial/Residential:
- Commercial
- Handle Type:
- Lever
- Product Model:
- R115LPB
- (CTC) Center-to-Center:
- 14"
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Stainless Steel
- Department:
- Door Hardware
Rockwood ROC-R115LPB-US32D – Frequently Asked Questions
1) What door thickness does the Rockwood R115LPB come prepared for, and what fasteners are supplied?
Fasteners supplied cover a standard 1-3/4 inch door: 1/4-20 x 2-1/4 inch thru bolts, 1/4-20 x 2 inch thru bolts, and finish washers. Thru bolting means the bar clamps through the door leaf rather than relying on sheet metal screws into the face, which is what keeps a protector bar on the door under a shoulder or a cart. Doors thicker or thinner than 1-3/4 inches need different bolt lengths than the ones packed with it.
2) How far apart are the mounting holes on the Rockwood R115LPB protector bar?
Mounting is on 14 inch centers. Measure from the center of one existing bolt hole to the center of the other on the door you are retrofitting; if that number is not 14 inches, the stock bar will not drop into the existing prep and you will be drilling new holes through the leaf. Rockwood does build made to order sizes when the opening does not match.
3) What is a Rockwood R115LPB trim protector bar and what problem does it solve on a lever handle?
The R115LPB is a stainless steel bar that mounts over a long lever handle to shield the trim from impact, carts, and abuse in high traffic openings. It protects the lever and its trim rather than replacing any locking function, so the existing lockset and lever stay in place and keep working. The bar is made for commercial openings, which is where cart strikes and pried levers actually happen.
4) My lever spacing does not match 14 inch centers. Can I get a Rockwood protector bar in a custom size?
Yes, made to order sizes are available on the R115LPB. The stock bar is built to 14 inch center-to-center mounting, so if the trim on your openings sits at a different spread, a made to order length is the way to get it on the door without re-drilling.
5) Do I need to replace my lockset to install a Rockwood R115LPB protector bar?
No. The R115LPB guards existing long lever trim, so the lock, cylinder, and lever stay as they are. What the install does require is thru bolting the door leaf, which means access to both faces and a bolt pattern at 14 inch centers. Budget the job as a door prep, not a lock change.
6) Is the R115LPB for a long lever or a short knob style trim?
Long lever handle. The R115LPB is sized for lever trim, not a knob, and the 14 inch center-to-center mounting reflects that longer span. If the openings you are protecting have knobs or short trim, this bar is the wrong length for them.
7) Will a stainless trim protector bar hold up in a hospital or school corridor?
The bar is solid stainless steel and specified for commercial use. Stainless takes cart and gurney impact and cleans up after repeated wipe downs, which is why it is the usual choice for corridors in institutional buildings, offices, retail, education, detention, sports facilities, and hotels. For a property manager standardizing across a building, one part number in one finish covers every lever opening on the same 14 inch spacing.
