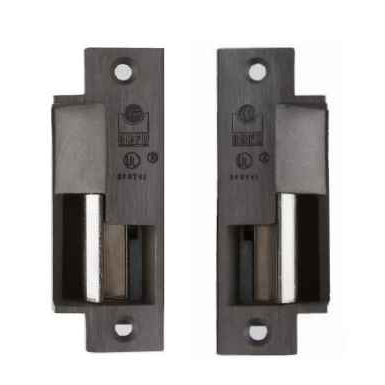

ROFU 3430 Fail Safe Electric Strike, Hollow Metal/Aluminum/Wood Frame

Yes, the 3430 is a handed strike, so you order it left hand or right hand. Determine the hand from the door, not the frame, before you place the order, because a wrong-hand body will not keep the latch.

Fail-safe operation: energize to keep the keeper locked, and the door releases when power drops. That is what you want on a stairwell or egress-path opening tied to a fire alarm relay. If the opening needs to stay secure through a power outage, a fail-secure strike such as the Von Duprin 6210 is the right choice instead.

Keeper depth is 5/8 inch, giving maximum latch protection at 1/8 inch door-to-frame clearance. The keeper opening is 3/4 inch and sits 3/8 inch below the centerline. If your latchbolt projects more than 5/8 inch or the gap is sloppy, the strike will not hold properly.

Yes. The stainless steel corrosion-resistant faceplate is rated for hollow metal, aluminum and wood frames, so the same strike covers a storefront jamb, a hollow metal frame in a corridor, and a wood frame on an office door.

You pick one at order time. The 3430 is offered as a 12 VDC unit or a 24 VDC unit, not a field-selectable dual-voltage strike. Match it to your power supply and access control panel output. If you want one part number that covers both, the Hager 2930 is dual voltage 12/24 VDC.

The ROFU 3430 is a straight fail-safe strike in the 1-1/4 inch x 4-7/8 inch ANSI faceplate. If your access control head end needs to see latch position, the Dortronics 3300 Series includes a latch bolt sensing switch, runs 12/24VDC, and uses a strike plate for the same 4-7/8 in x 1-1/4 in ANSI prep, so the frame cutout logic carries over. The Hager 2945 carries a latchbolt monitor on a rim exit application, and the Camden CX-ED1799L-8 is a Grade 1 dual monitor strike.

No. The ROFU 3430 is specified for cylindrical and mortise locksets with a 5/8 inch maximum latch and a 3/4 inch keeper opening, so it is a frame-mounted latch strike rather than an exit device strike. For a rim exit device, the Hager 2945 is a fire rated rim exit strike, and the SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel. For surface vertical rods, the HES Folger Adam 310-4-2 is sold as a complete electric strike pac for that application.

The ROFU 3430 fits the A115.1 cutout specification with slight jamb modification, so the frame does get prepped. If you cannot cut the existing jamb, the Locknetics NC450 is a no cut electric strike, and Camden's CX-ED1689L-4 is a low profile universal strike supplied with four faceplates to cover varying preps.

Both. The 3430 is built for cylindrical and mortise locksets within the ANSI/BHMA A156.5 1-1/4 x 4-7/8 inch strike prep.

The ROFU 3430 has a stainless steel faceplate suitable for hollow metal, aluminum or wood frames and fits the A115.1 cutout with slight jamb modification. If you are working a narrow aluminum storefront jamb specifically, the Adams Rite 7100 Series uses a flat 1-1/4 inch x 4-7/8 inch faceplate for aluminum jambs, and the Adams Rite 7160 is also built for aluminum jambs with a 1-1/4 inch x 4-7/8 inch faceplate. For hollow metal and wood jambs, Adams Rite's counterpart is the 7170 in the same faceplate size.

The ROFU 3430 is built to ANSI/BHMA A156.5 with a stainless steel corrosion-resistant faceplate. If your spec calls out Grade 1 heavy duty explicitly, the Alarm Controls AES-100 is a Grade 1 heavy duty strike, the Von Duprin 4211 32D and 6210 are Grade 1 heavy duty, and the Von Duprin 6400 32D is a Grade 1 modular heavy duty strike for mortise or cylindrical locks in satin stainless steel. Securitron's MUNL mortise UnLatch is also Grade 1 and fire rated. Most of those are fail-secure, so confirm the release direction your egress plan requires before you swap from the fail-safe 3430.

The ROFU 3430 is ordered as either a 12 VDC or a 24 VDC unit, so the voltage is fixed at the time of order. If your existing transformer output is AC, the Trine 004 strike runs 8-16VAC fail secure with a 6-1/4 inch x 1-3/8 inch faceplate and up to 5/8 inch throw, and the Trine 2001 runs 16-24VAC/DC fail secure with a 5-7/8 inch x 1-1/4 inch faceplate. Both of those are fire rated and fail secure, so the frame prep and the release behavior both differ from the 3430.

The ROFU 3430 is a single handed strike specified RH or LH for a cylindrical or mortise lockset opening. For a double door application, the Rockwood electric strike for double doors uses a 3/4 keeper and is a fire rated Grade 1 unit in the 310-1 Series.

Three: 630 satin stainless steel, 605 bright brass, and 613 oil rubbed bronze. For a building already standardized on 32D/satin hardware, 630 is the match. All three finishes are available in either hand and in either voltage.

It is a commercial-duty electric strike, stainless faceplate, built to the ANSI/BHMA A156.5 strike prep used on commercial openings. Apartment entries, office suites, and interior access controlled doors are the normal use.
