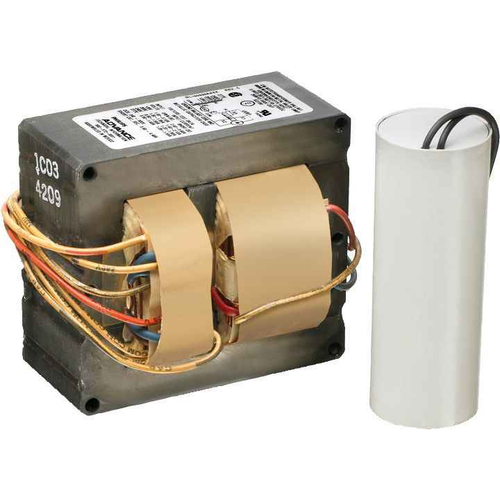

Advance 100W High Pressure Sodium Ballast S54 Core and Coil Quad Kit

Advance 100W High Pressure Sodium Ballast S54 Core and Coil Quad Kit

(No reviews yet) Write a Review

Model: 71A8071001D
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$246.50
$206.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Advance 100W High Pressure Sodium Ballast S54 Core and Coil Quad Kit

Professional HPS lighting ballast with pulse start technology

The Advance 100W High Pressure Sodium Ballast delivers reliable performance for commercial and industrial lighting applications. This core and coil ballast features S54 ANSI code compatibility, pulse start technology, and multi-voltage operation at 120/208/240/277V with 60Hz frequency. Built with dry capacitor technology and 0.9 power factor for efficient operation, this UL and CSA certified ballast provides dependable HPS lamp control in a compact quad kit configuration.

Professional Features & Benefits

  • 100W Power Rating: Optimized for high pressure sodium lamps with consistent light output and energy efficiency
  • Multi-Voltage Operation (120/208/240/277V): Versatile installation compatibility across various electrical systems and applications
  • Core and Coil Construction: Proven magnetic ballast technology delivers reliable performance and long service life
  • S54 ANSI Code: Ensures proper lamp compatibility and optimal lighting performance with standardized specifications
  • Pulse Start Technology: Provides reliable lamp ignition and improved lamp life compared to standard probe start systems
  • 0.9 Power Factor: High efficiency operation reduces energy consumption and electrical system loading
  • UL and CSA Certified: Meets rigorous safety and performance standards for professional lighting installations

Technical Specifications

  • Ansi Code: S54
  • Ballast Type: Core AND COIL
  • Country Of Origin: USA
  • Frequency: 60 HZ
  • Frequency Rating: 60 Hz
  • Lamp Type: HIGH PRESSURE SODIUM
  • Number Of Lamps: 1
  • Power Factor: 0.9
  • Product Height: 2.8100 IN
  • Product Length: 3.9400 IN
  • Product Wattage: 100 W
  • Product Weight: 7.100 Lbs
  • Product Width: 3.6000 IN
  • Standard: ULR;CSA certificate;RoHS Compliant
  • Start Type: PULSE
  • Voltage Rating: 120/208/240/277 V

Professional Applications

  • Commercial warehouse and industrial facility lighting
  • Parking lot and area lighting installations
  • Retail and office building high bay lighting
  • Manufacturing and production facility illumination
  • Security and perimeter lighting systems
  • Municipal and institutional lighting projects

Why Choose Advance Quality?

Advance ballasts deliver proven reliability with UL and CSA certifications, RoHS compliance, and USA manufacturing. The robust core and coil construction ensures long-term performance in demanding commercial and industrial lighting applications, backed by comprehensive safety standards and professional-grade components.

Manufacturer Resources

Product Specs

Ansi Code:
S54
Ballast Type:
Core AND COIL
Country Of Origin:
USA
Frequency:
60 HZ
Frequency Rating:
60 Hz
Lamp Type:
HIGH PRESSURE SODIUM
Number Of Lamps:
1
Power Factor:
0.9
Product Height:
2.8100 IN
Product Length:
3.9400 IN
Product Wattage:
100 W
Product Weight:
7.100 Lbs
Product Width:
3.6000 IN
Standard:
ULR;CSA certificate;RoHS Compliant
Start Type:
PULSE
Voltage Rating:
120/208/240/277 V
Department:
Electrical

Advance 71A8071001D – Frequently Asked Questions

1) Will the Advance 71A8071001D ballast run my 100W HPS lamp, or do I need to check the ANSI code first?
Check the ANSI code on the lamp. This Advance core and coil kit is built for a single 100W high pressure sodium lamp carrying ANSI designation S54. An S54 lamp is what it fires; a 100W metal halide or a 100W HPS with a different ANSI code is not a match, even at the same wattage. The ANSI code is printed on the lamp end and in the lamp spec sheet, and it has to read S54.
2) What actually comes in an HPS core and coil quad kit like this one?
A core and coil kit is the ballast components, not a finished enclosure. The Advance 100W S54 kit supplies the magnetic core and coil transformer with the dry capacitor and the starter needed for pulse start ignition of the HPS lamp. You mount and wire it inside the fixture housing or a separate ballast box, and you supply the lamp, the socket and the enclosure. If you want a boxed, ready-to-hang assembly, a core and coil kit is the wrong form factor.
3) Will this Advance ballast kit fit in my existing fixture housing?
Measure the cavity against 3.94 x 3.60 x 2.81 inches, which is the stated length, width and height of the assembly. It weighs 7.1 pounds, so whatever you mount it to, and any pole or pendant fixture you retrofit, needs to carry that. Shallow decorative housings are the usual problem with a magnetic core and coil; the 2.81 inch dimension is what most often decides it.
4) What does a 0.9 power factor mean for the circuit I am putting these HPS ballasts on?
At a 0.9 power factor the ballast draws close to its real wattage rather than pulling a lot of extra reactive current, so you can load more fixtures per branch circuit than you could with a low power factor magnetic ballast. For a parking lot or warehouse run with a dozen or more 100W HPS heads on one circuit, that is the number your load calculation uses.
5) What is the Advance part number to order for a 100W HPS S54 quad ballast kit?
Advance 71A8071001D. That single model covers the whole 120/208/240/277V range, so there is no separate voltage-specific number to chase when you are standardizing a site.
6) Is pulse start better than probe start for a 100W HPS retrofit?
For high pressure sodium the question is mostly settled for you: HPS lamps need an ignitor to strike, and this Advance kit is a pulse start design that supplies it. Probe start is a metal halide arrangement. If your old ballast was probe start, you were running a different lamp type and the lamp has to change along with the ballast.
