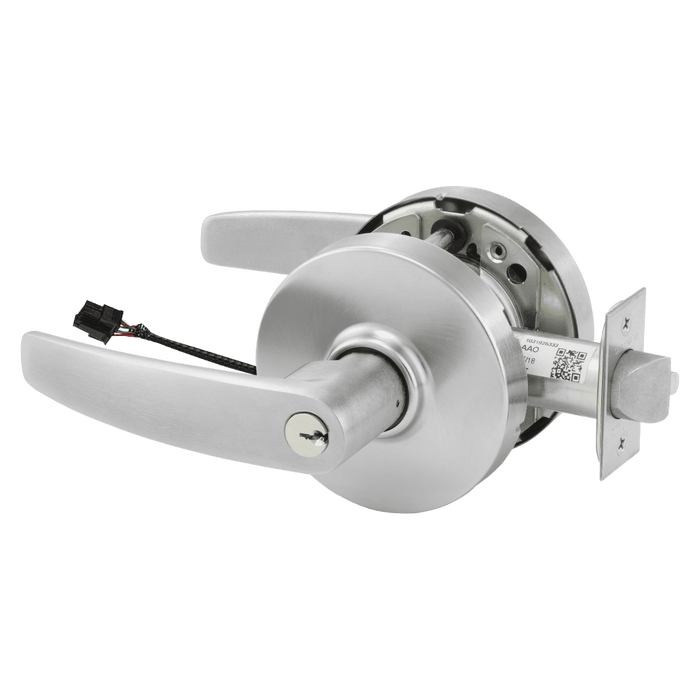

Sargent 30RX10XG7 Electromechanical Cylindrical Lever Lock with Field Selectable Fail Safe/Fail Secure 12/24V DC Operation

Sargent 30RX10XG7 Electromechanical Cylindrical Lever Lock with Field Selectable Fail Safe/Fail Secure 12/24V DC Operation

(No reviews yet) Write a Review

Model: 30RX10XG70LB26DLH
$1,884.38
$1,080.52
Selected Finish is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,884.38
$1,080.52
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X-Line Electromechanical Cylindrical Lever Lock with Dual Voltage 12/24V DC Operation

Professional-Grade Electronic Access Control Solution

The Sargent 10X-Line electromechanical cylindrical lever lock delivers superior security performance with field selectable fail safe/fail secure operation and dual voltage 12/24V DC capability. This Grade 1 lock features L Rose design with Schlage prep compatibility, ASA strike, and integrated request to exit functionality. Engineered to exceed ANSI/BHMA requirements by up to 20 times, this lock provides maximum resistance to vandalism and malicious attacks while maintaining reliable electronic access control.

Professional Features & Benefits

  • Exceptional Durability Testing: Surpasses ANSI/BHMA testing by more than 20 times the standard requirements for unmatched reliability in high-traffic applications.
  • Superior Torque Resistance: Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque, providing 2.6 times ANSI/BHMA A156.2 requirements.
  • Heavy-Duty Pull Resistance: Withstands 1,600 lbs offset lever pull (8 times ANSI/BHMA A156.2 requirements) while continuing to restrict unauthorized entry.
  • Flexible Power Options: Dual 12/24V DC voltage capability with field selectable fail safe/fail secure configuration for various system requirements and security applications.
  • Enhanced Latch Performance: Ensures reliable latch retraction with 100lb preload (2 times ANSI/BHMA A156.2) while maintaining smooth operation in warped doors or doors with latch bind.
  • Impact Resistance: Prohibits entry after more than 100 vertical impacts, exceeding ANSI/BHMA A156.2 requirements by 20 times for vandal-resistant performance.
  • Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core, integrating with multiple security key systems including Degree, Signature, and KESO.
  • Anti-Microbial Option: Optional Microshield® antimicrobial coating available for enhanced hygiene in healthcare and high-touch applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12/24V DC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-secure/fail-safe selection per application requirements.
  6. Restore power and test all functions including normal operation, request to exit functionality, and integration with connected systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Government and Municipal Buildings
  • Industrial Facility Monitoring
  • Multi-Tenant Residential Properties
  • Emergency Exit Compliance

Anti-Microbial Option

Optional Microshield® antimicrobial coating is available for enhanced hygiene performance in healthcare facilities and high-touch commercial applications where infection control is a priority.

Why Choose Sargent Quality?

Sargent 10X-Line cylindrical lever locks deliver professional-grade reliability with rigorous testing that surpasses ANSI/BHMA requirements by more than 20 times. The innovative lockbody design provides maximum resistance to vandalism with 3,100 in-lb torque resistance and 1,600 lbs pull resistance while supporting multiple cylinder formats and security key systems. Engineered for demanding commercial applications where dependable electronic access control performance is essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Product Group:
Electronic Locks
Product Subgroup:
Electrified Cylindrical Locks
Subcategory:
Electrified Cylindrical Locks
Commercial/Residential:
Commercial
Product Type:
Electronic Locks
Duty Level:
Heavy Duty
Electronic:
Yes
Product Category:
Electronic Locks
Department:
Door Hardware
Product Voltage:
12 or 24 VAC/DC
Fire Rating:
3 Hours {A}
Door Thickness Range:
1-3/4" to 2"

Sargent 30RX10XG70LB26DLH – Frequently Asked Questions

1) Will the Sargent 30RX10XG7 electrified lever lock fit a 2 inch thick door?
Yes. The 30RX10XG7 cylindrical lever lock covers a door thickness range of 1-3/4 inches to 2 inches, so it handles standard 1-3/4 inch commercial doors and thicker 2 inch leaves without a special kit. Thinner 1-3/8 inch doors are outside that range, so it is not the lock for older interior wood doors of that thickness.
2) Do I have to choose fail safe or fail secure when I order this Sargent 10X-Line electrified lock?
Fail safe and fail secure are both offered as an ordering choice, and the lock is also field selectable between the two, so the mode can be changed on site during setup rather than being fixed at the factory. Order the configuration you want the openings to ship in, then flip any of them at install if the security plan changes: fail safe unlocks on power loss for egress or evacuation paths, fail secure stays locked on power loss.
3) Does this Sargent lock run on 12 volt or 24 volt power?
Both. The 10X-Line electromechanical cylindrical lock is a dual voltage unit rated for 12 or 24 VAC/DC, so one part number works whether your access control power supply is a 12V or a 24V bus. That matters on a retrofit where you are adding doors to an existing panel and do not want to match voltage per opening.
4) Can I put this electrified cylindrical lock on a 3 hour fire rated door?
Yes, it carries a 3 hour {A} fire rating, which covers stairwell and corridor openings in commercial and institutional buildings up to a 3 hour label. If you specify fail safe on a fire door, confirm the opening's egress and door-holding scheme with your authority having jurisdiction, since a fire door is normally required to be positively latched.
5) Will this Sargent 10X-Line lock drop into an existing Schlage cylindrical prep?
The lock uses an L rose design with Schlage prep compatibility and an ASA strike, so it mounts into a door already bored for a Schlage cylindrical lockset. You still need to run power to the hinge edge, which means an electric hinge or power transfer and a wire path the original mechanical lock did not require.
6) Do I need to know the door handing before ordering this Sargent electromechanical lever lock?
Yes. It is ordered left hand or right hand, so determine handing at the opening before you buy. Stand outside the door, on the side you use a key from: if the hinges are on your left it is a left hand door, hinges on the right is right hand.
7) Does this lock have a request to exit signal for my access control panel?
Yes, request to exit is integrated into the lockset. Turning the inside lever sends the RX signal, which the panel uses to shunt the door contact so legitimate egress does not read as a forced door alarm. That is the main reason this model gets specified over a plain electrified lock on monitored openings.
8) Can I key this Sargent 10X-Line lock into my existing interchangeable core system?
The lockbody accepts all cylinder formats from fixed cylinder through interchangeable core, and works with Sargent's Degree, Signature and KESO key systems. So a facility already on a small format or Sargent IC core program can carry that keyway onto these electrified openings instead of running a second key system for access control doors.
9) What lever styles and finish does this Sargent electrified cylindrical lock come in?
Three lever designs are offered, B, L and P, all in 26D satin chromium plated over nickel. If you are standardizing a building, 26D is the common satin chrome look that matches most existing commercial trim, and you can mix lever shapes across departments while keeping one finish.
10) Is there an antimicrobial version of this Sargent lever lock for patient room doors?
Microshield antimicrobial coating is available as an option on the 10X-Line lever lock, aimed at healthcare and other high-touch openings where infection control is part of the spec. Call it out as an option when you order rather than assuming a standard lock includes it.
11) What documentation is available for wiring and parts on the Sargent 10X-Line electrified bored lock?
Sargent publishes a dedicated installation instruction for the 10X-Line electrified bored lock, a general 10X-Line cylindrical lockset installation instruction, a 10X-Line parts manual for replacement components, and the full line catalog. Pull the electrified bored lock sheet before you rough in power, since that is where the wiring diagram and the fail safe/fail secure field selection procedure live.
