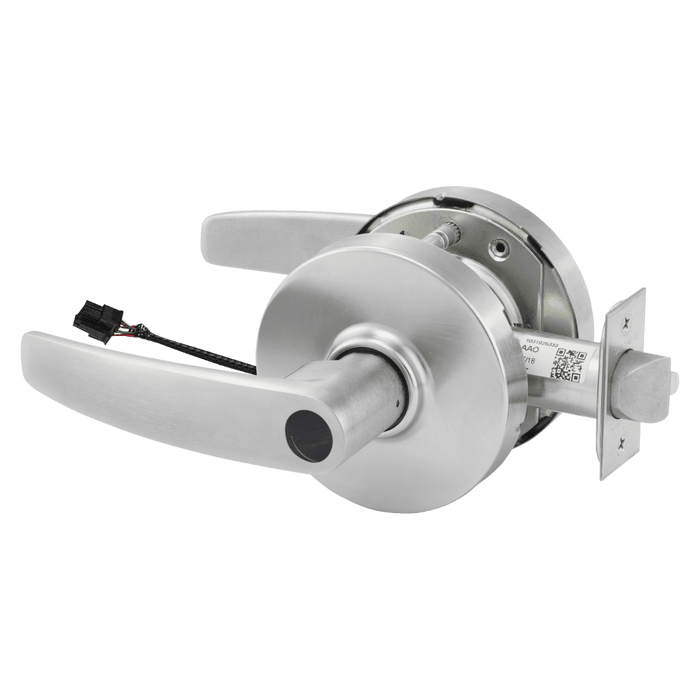

Sargent LC10XG7 Electromechanical Cylindrical Lever Lock with Field Selectable Fail Safe/Fail Secure 12/24VDC Operation

Sargent LC10XG7 Electromechanical Cylindrical Lever Lock with Field Selectable Fail Safe/Fail Secure 12/24VDC Operation

(No reviews yet) Write a Review

Model: LC10XG70LB26D
$1,423.21
$817.83
Selected Lever is
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,423.21
$817.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X-Line Electromechanical Cylindrical Lever Lock with Dual Voltage 12/24VDC Operation

Superior Grade 1 Electromechanical Lock with Advanced Vandal Resistance

The Sargent 10X-Line electromechanical cylindrical lever lock delivers exceptional security performance with field selectable fail safe/fail secure operation and dual voltage 12/24VDC capability. This Grade 1 lock features L rose design with ASA strike and exceeds ANSI/BHMA requirements by up to 20 times in rigorous testing. The innovative lockbody design supports all cylinder formats from fixed to interchangeable core, making it ideal for high-security commercial applications requiring electronic access control integration.

Professional Features & Benefits

  • Flexible Power Options: Field selectable 12VDC or 24VDC operation with fail safe/fail secure configuration for various system requirements and easy integration with existing access control systems.
  • Extreme Vandal Resistance: Withstands over 3,100 in-lb locked lever torque (2.6x ANSI/BHMA requirements) and 1,600 lbs offset lever pull (8x ANSI/BHMA requirements) for maximum security in high-risk environments.
  • Superior Impact Protection: Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA requirements) ensuring long-term security integrity against forced entry attempts.
  • Heavy-Duty Latch Performance: Ensures reliable latch retraction with 100lb preload (2x ANSI/BHMA requirements) while maintaining operation in warped doors or doors with latch bind conditions.
  • Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core, compatible with multiple security key systems including Degree, Signature, and KESO for flexible keying options.
  • Grade 1 Certification: ANSI/BHMA Grade 1 rated construction provides the highest level of commercial security performance and durability standards.
  • Innovative Push/Turn Design: Protected button design prevents damage from door stops and walls while maintaining reliable operation in high-traffic applications.
  • Optional Anti-Microbial Protection: Microshield® antimicrobial coating available for enhanced hygiene in healthcare and food service environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12VDC or 24VDC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including fail-secure/fail-safe configuration per application requirements.
  6. Restore power and test all functions including normal operation, electronic locking/unlocking, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Security Systems
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Government and Municipal Buildings
  • Industrial Facility Monitoring
  • Multi-Tenant Residential Properties
  • Retail Loss Prevention Systems

Anti-Microbial Option

Optional Microshield® antimicrobial coating provides enhanced hygiene protection for healthcare facilities, food service establishments, and other environments where infection control is critical. This specialized coating helps reduce microbial growth on high-touch surfaces.

Why Choose Sargent Quality?

Sargent 10X-Line electromechanical locks deliver professional-grade reliability with rigorous testing that surpasses ANSI/BHMA requirements by more than 20 times in key performance areas. The innovative lockbody construction withstands extreme vandalism attempts with over 3,100 in-lb torque resistance while maintaining smooth operation under high-volume traffic conditions. Engineered for demanding commercial applications where dependable electronic access control and maximum security are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Product Group:
Electronic Locks
Product Subgroup:
Electrified Cylindrical Locks
Subcategory:
Electrified Cylindrical Locks
Commercial/Residential:
Commercial
Product Type:
Electronic Locks
Duty Level:
Heavy Duty
Electronic:
Yes
Product Category:
Electronic Locks
Department:
Door Hardware
Product Voltage:
12 or 24 VAC/DC
Fire Rating:
3 Hours {A}
Door Thickness Range:
1-3/4" to 2"

Sargent LC10XG70LB26D – Frequently Asked Questions

1) Will the Sargent LC10XG7 electrified lever lock fit a 1-3/4 inch commercial door?
Yes. The LC10XG7 cylindrical lever lock is built for doors 1-3/4 inches to 2 inches thick, so a standard 1-3/4 inch commercial door is right in range. If you are working on a 1-3/8 inch interior door, this is not the lock for that opening.
2) What is the difference between the fail safe and fail secure versions of this Sargent 10X-Line electrified lock?
Fail safe unlocks when power is removed, so the door is free to open during a power loss or alarm, which is what you want on egress paths and stair doors governed by life safety. Fail secure stays locked when power drops and is the usual choice for exterior and tenant doors where you cannot let the opening go free. Both are offered on the LC10XG7 as an ordering choice, and the lock is also field selectable between the two modes.
3) Can this Sargent electromechanical cylindrical lock run on 12VDC or does it need 24V?
Either. The lock is field selectable for 12 or 24 volt operation, so one part number drops onto most access control power supplies without a separate voltage-specific model. Confirm your supply's current capacity for the lock before you wire it in.
4) Is the Sargent LC10XG7 approved for a fire rated door opening?
It carries a 3 hour (A label) fire rating, which covers openings up to a 3 hour label. Note that on a fire door you generally cannot use a fail safe electric lock unless the door is otherwise held latched, so the fail secure configuration is the normal specification for labeled openings.
5) Will the 10X-Line lockbody take our existing interchangeable core cylinders?
Yes. The 10X-Line lockbody accepts all cylinder formats, from fixed cylinders to interchangeable core, and works with Sargent's Degree, Signature and KESO key systems. That means you can key it into an existing Sargent masterkey system rather than starting a new one.
6) Is this Sargent lever lock tough enough for a school or dorm door that gets abused?
That is what it is built for. It is ANSI/BHMA Grade 1 and heavy duty rated, and the tested numbers are well past the Grade 1 minimums: over 3,100 in-lb of locked lever torque, 1,600 lbs of offset lever pull, and it still blocks entry after more than 100 vertical impacts. The push/turn button is recessed so door stops and walls do not break it.
7) Which lever styles and finish can I get on the Sargent LC10XG7?
Three lever designs are offered, B, L and P, in 26D satin chromium plated over nickel. Pick the lever that matches the levers already hanging on the rest of your openings so the floor reads consistently, then choose fail safe or fail secure for the electrical behavior.
8) Is there an antimicrobial option for hospital doors on this Sargent lock?
Yes. Microshield antimicrobial coating is available as an option on the 10X-Line, which is why these get specified for patient rooms, clinics and food service areas where the lever is a high-touch surface.
9) What documentation is available for wiring and parts on the Sargent 10X-Line electrified bored lock?
Sargent publishes installation instructions specifically for the 10X-Line electrified bored lock, separate general 10X-Line cylindrical lockset instructions, a 10X-Line parts manual for replacement components, and the full line catalog. Use the electrified bored lock sheet for the wiring and the voltage selection, and the parts manual when you are ordering a replacement latch or rose.
