Sargent C8X 6-Pin Bored Lock C...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$118.00
$110.08

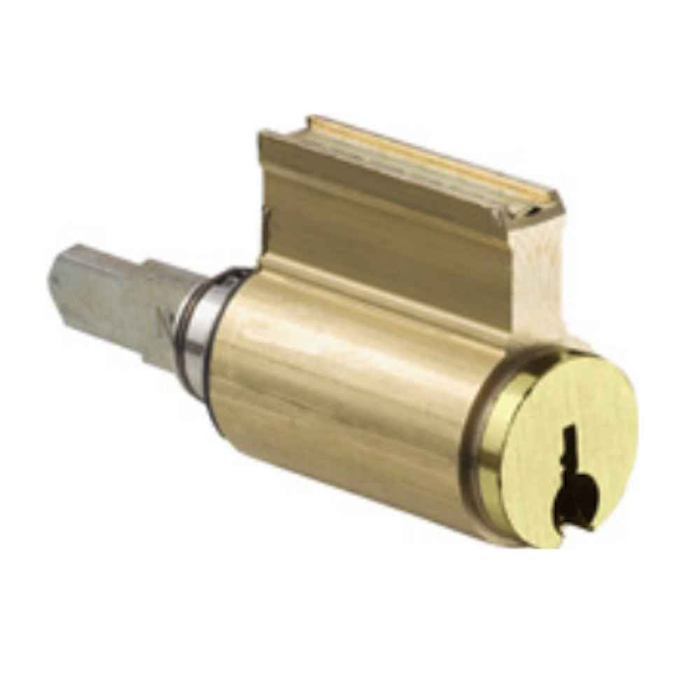

Sargent C8X 6-Pin Bored Lock Cylinders with ANSI/BHMA Grade 1 Certification

Sargent C8X 6-Pin Bored Lock Cylinders with ANSI/BHMA Grade 1 Certification

(No reviews yet) Write a Review

Model: SGT-C8X-1 LA 4
From the Conventional Key System Collection
$118.00
$110.08
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$118.00
$110.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8X Line Series 6-Pin Bored Lock Cylinders with ANSI/BHMA Grade 1 Certification

Professional Grade Cylinder Solution for Commercial Applications

The Sargent 8X Line Series Bored Lock Cylinders deliver professional-grade security with 6-pin construction and ANSI/BHMA A156.5 Grade 1 certification for demanding commercial applications. Each cylinder is supplied 1-bitted unless otherwise specified and includes 2 nickel silver keys for immediate use. Available in multiple finish options including 4, 15, and BSP to match existing hardware installations.

Professional Features & Benefits

  • ANSI/BHMA Grade 1 Certification: A156.5 Grade 1 certified construction ensures compliance with commercial security standards for maximum reliability.
  • 6-Pin Security Configuration: All cylinders feature 6-pin construction for enhanced security and key control in commercial environments.
  • Multiple Finish Options: Available in finishes 4, 15, and BSP to coordinate with existing door hardware and architectural requirements.
  • Flexible Keying Options: Standard 1-bitted supply with KD- option available for cylinders keyed differently or random configurations.
  • Master Key System Compatible: Designed for integration with master key systems using SARGENT Keyed Order Lead Sheets for complex keying requirements.
  • Complete Key Package: Each cylinder supplied with 2 nickel silver keys for immediate installation and operation.
  • Universal Function Compatibility: 8X-1 variation supports all lock functions for versatile commercial applications.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 8X Line Series cylinders deliver professional-grade reliability with ANSI/BHMA A156.5 Grade 1 certification and 6-pin construction for demanding commercial security applications. The comprehensive keying options and multiple finish availability ensure compatibility with existing systems while maintaining the highest security standards. Engineered for demanding commercial applications where dependable performance and key control are essential.

Product Specs

Series:
C8X Series
Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-C8X-1 LA 4 – Frequently Asked Questions

1) Which keyways can I get the Sargent C8X bored lock cylinder in?
The C8X 6-pin bored lock cylinder is offered in nine Sargent conventional keyways: LA (the standard), LB, LC, LE, LF, LG, LJ, LK and LL. If you are adding doors to a building already on a Sargent conventional system, order the keyway that matches the existing keys so the cylinder falls into your master key system rather than standing alone.
2) How does the Sargent C8X cylinder arrive keyed, and how do I get it keyed to my building?
Unless you specify otherwise, each C8X cylinder ships 1-bitted with 2 nickel silver keys. On the order you choose the keying: Standard Keying, KD (keyed different) or KA (keyed alike). For a building on an existing master key system, the cylinders are meant to be ordered against a SARGENT Keyed Order Lead Sheet so the bitting matches your system.
3) Will a Sargent C8X cylinder work in any 8 Line bored lock function?
The 8X-1 variation of the cylinder covers all lock functions in the 8 Line bored lock family, so you don't have to match a different cylinder to storeroom, classroom, entry or office functions. It is a bored (cylindrical) lock cylinder, not a mortise cylinder, so it belongs in the 8 Line bored locks rather than in a mortise lock case or a rim exit device.
4) Is the Sargent C8X cylinder certified for commercial use?
Yes. The C8X cylinder is built to ANSI/BHMA A156.5 Grade 1 and is designated for commercial applications, which is the cylinder standard specifiers call for on schools, healthcare, government and office openings where key control is part of the spec.
5) I'm replacing a worn cylinder on a Sargent 8 Line lever lock. Is this the right part?
It is. The C8X is sold as a replacement cylinder for Sargent 8 Line bored locks, so rekeying or swapping out a damaged cylinder does not mean replacing the whole lockset. Match the keyway to the keys already in use (LA is the Sargent standard) and order KA if you want the new cylinder to run on the same key as the rest of the doors.
6) What finishes does the Sargent C8X cylinder come in for matching existing hardware?
Three: 04 satin brass with clear coat, 15 satin nickel plated with clear coat, and BSP black suede powder coat. All three are available in every one of the nine keyways offered, so you can match the lock trim on the door without giving up the keyway your building runs.
7) Should I order keyed different or keyed alike for a multi-tenant building?
For apartments or multi-tenant suites, order KD so each cylinder has its own key and no tenant opens another unit. Use KA where one key should open a group of doors, like a mechanical room and adjacent storage, or a single tenant's front and rear entry. Either way, each cylinder still ships with 2 nickel silver keys.
8) Is the Sargent C8X a high security or interchangeable core cylinder?
No. The C8X is a conventional 6-pin cylinder, not a patented-key high security cylinder and not a removable or interchangeable core. If your facility needs keys that cannot be duplicated at a hardware store, or wants cores that can be pulled and swapped without a locksmith, you need a different Sargent cylinder family. For standard commercial key control on an existing conventional Sargent system, the C8X is the match.
9) Are installation instructions available for the Sargent 8X Line?
Yes. Sargent publishes 8X Line installation instructions and a separate set for 8X dummy trim, plus the full line catalog covering the series. Use the 8X Line sheet for the lock and cylinder work; the dummy trim sheet applies only to inactive trim, which has no cylinder.
