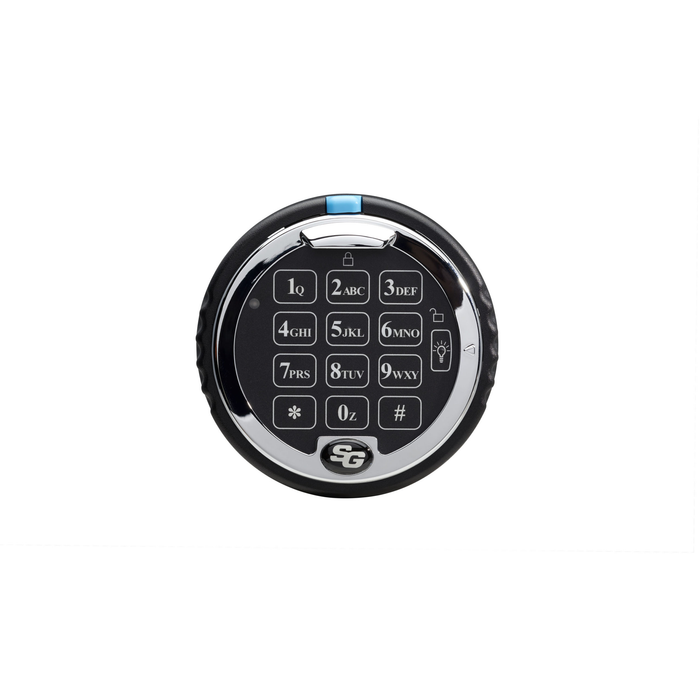

Sargent & Greenleaf Spartan Direct-Drive Safe Lock, Throw Bolt, 2 Users, Rotating Keypad, Bright Chrome

Sargent & Greenleaf Spartan Direct-Drive Safe Lock, Throw Bolt, 2 Users, Rotating Keypad, Bright Chrome

(No reviews yet) Write a Review

Model: 1007-102
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$204.09
$165.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent & Greenleaf Spartan Direct-Drive Safe Lock, Throw Bolt, 2 Users, Rotating Keypad, Bright Chrome

Spartan is an easy-to-use, two-user electronic gun safe lock that is based on the proven security of a rugged, motorized blocking device. We make it simple to upgrade the look, performance, and product life of your home gun safe with no special tools or drilling required. Spartan is tested to the highest EMP impact standard. Regardless of attack or conditions, our EMP-resistant gun safe lock keeps you secure.

Features:

  • Dependable Security: A motor-driven locking mechanism delivers an extra measure of security and longer battery life.
  • Rugged Design: The Spartan lock bolt withstands 225 lbs. of bolt-end pressure for a high level of security in bolt work blocking applications.
  • Best-In-Class Warranty: Sargent and Greenleaf backs Spartan locks with a leading two-year warranty and exceptional service.
  • Lock bolt retraction and extension is controlled by turning of the keypad ring, offering dependable manual control of the locking bolt
  • Exclusive no-twist cable design prevents cable damage during opening
  • Withstands 225 lbs. of bolt end pressure for a high level of security

Specifications:

  • Code Management:
    • One master code, one user code
    • Manager can add, delete, or enable/disable user code
    • Management Reset Code
    • One million codes available
    • Field programmable from keypad
  • Lock Installation:
    • Standard S&G Magic Module footprint
    • Universally handed: left hand, right hand, up, or down mounting
  • Operation:
    • Motor-blocking bolt operation
    • Star - S&G programming
    • Basic - LaGard programming
    • Penalty lockout after five failed attempts
    • Tested up to 10,000 openings on one 9V alkaline battery
    • Low battery signal
    • Bolt extension beeps/LED signals
    • Beeper volume adjustment
  • Keypad Options:
    • Bolt position indicator
    • Available in one-battery keypad, two-battery keypad, quick-mount keypad, non-rotating low profile keypad (Direct Drive available in low profile rotating keypad only)
    • Choose from a variety of finishes - details available online

Documents & Specs



Manufacturer Resources

Product Specs

Catergory:
Electronic Locks
Product Group:
Safe Locks
Product Subgroup:
Safes
Series:
Spartan
Subcategory:
Safe Lock
Product Type:
Electronic Safe Lock
Department:
Safety

Sargent & Greenleaf 1007-102 – Frequently Asked Questions

1) Will the Sargent & Greenleaf Spartan safe lock fit my existing gun safe without drilling?
The Spartan mounts to the standard S&G Magic Module footprint, so it drops into a safe already prepped for that pattern with no special tools and no drilling. That footprint is what most S&G-equipped safes use for the lock body, and the swap is a body-and-keypad change rather than a re-prep of the door.
2) Does the Spartan safe lock have to be mounted in a particular orientation on the safe door?
No orientation restriction. The Spartan is universally handed and mounts left hand, right hand, up, or down, so the same lock works whichever way the bolt work runs on your door. Handing does not need to be specified when ordering.
3) How many people can have their own code on the S&G Spartan lock?
Two: one master code and one user code. The manager holds the master and can add, delete, or enable and disable the user code from the keypad, and there is a Management Reset Code as well. Everything is field programmable at the keypad, with one million possible code combinations. If you need codes for a crew or several family members, the Spartan is not the right lock, it tops out at two.
4) Is the Spartan a swing bolt or a throw bolt safe lock, and what does that mean for my bolt work?
Throw bolt, driven by a motor blocking mechanism. You retract and extend the bolt by turning the keypad ring, so the bolt itself is under manual control once the motor releases the block, and the lock bolt takes 225 lbs of bolt-end pressure in a bolt work blocking application. That makes it a match for a safe where the handle-driven bolt work bears directly on the lock bolt.
5) Which keypad style comes with the Spartan Direct Drive, and can I pick a different one?
Direct Drive is offered in the low profile rotating keypad only. The other Spartan keypad styles (one-battery, two-battery, quick-mount, non-rotating low profile) belong to other versions of the lock. The rotating ring is not cosmetic here, it is how the bolt is thrown, so it is not interchangeable with a non-rotating pad.
6) What battery does the S&G Spartan gun safe lock take and how often will I be changing it?
One 9V alkaline battery, tested up to 10,000 openings on that single cell. The motor-driven mechanism draws less than a solenoid design, which is where the battery life comes from. The keypad gives a low battery signal before you run out, plus beeps and LED signals on bolt extension, and the beeper volume is adjustable.
7) I am used to a LaGard keypad sequence. Can I program the Spartan the way I already know?
Both sequences are supported. Star programming follows the S&G convention, Basic programming follows the LaGard convention, so a locksmith or owner coming off either platform can use the entry and code-change routine they already know rather than relearning one.
8) What happens if someone keeps punching in wrong codes on the Spartan lock?
A penalty lockout kicks in after five failed attempts, so the keypad stops accepting entries and a guesser cannot simply keep trying. Combined with one million available code combinations, that is what makes brute forcing the keypad impractical.
9) Is the Spartan electronic safe lock EMP resistant?
Yes. The Spartan is tested to the highest EMP impact standard, which is the usual worry with any electronic lock replacing a mechanical dial on a gun safe. The concern behind the question, that a pulse leaves you locked out of your own safe, is what that testing addresses.
10) Can I tell whether the Spartan lock bolt is actually retracted before I pull the safe handle?
Yes, the keypad carries a bolt position indicator, and bolt extension is confirmed by beeps and LED signals. That matters on a direct drive lock because you turn the ring yourself to move the bolt, so you want positive confirmation the bolt is clear before forcing the handle.
11) Does opening the safe repeatedly damage the cable on the Spartan rotating keypad?
No. The rotating ring turns to move the bolt, which on a lesser design would wind the keypad cable. The Spartan uses a no-twist cable design specifically to keep the cable from being damaged during opening, which is the failure point people hit on rotating-pad locks.
12) What finish does the Spartan Direct-Drive safe lock keypad come in?
Bright chrome, ordered under part number YBLED60/PCT. If you are matching a safe with polished chrome handle and hinges, this is the one that blends; a satin or black safe will show the contrast.
