Sargent 828 Passage Thumbpiece Exit Device Trim

(No reviews yet) Write a Review

Model: 828 FLL 3
From the PE80 Series Collection
$600.00
$470.89
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$600.00
$470.89
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent PE80 Series 828 Passage Thumbpiece Exit Device Trim

Professional Exit Device Trim Solution

The Sargent PE80 Series 828 Passage Thumbpiece Exit Device Trim provides professional-grade exterior trim functionality for commercial exit device applications. This passage configuration trim is engineered specifically for PE80 Series exit devices, delivering reliable operation and professional appearance for commercial door systems. The thumbpiece design ensures smooth operation while maintaining security and code compliance requirements of modern commercial buildings.

Professional Features & Benefits

  • PE80 Series Compatibility: Specifically designed for integration with Sargent PE80 Series exit devices for seamless installation and operation.
  • Passage Configuration: Thumbpiece design provides exterior access control while maintaining free egress from the interior side for code-compliant operation.
  • Commercial-Grade Construction: Built to withstand the demands of high-traffic commercial applications with durable materials and precision manufacturing.
  • Professional Appearance: Clean, architectural design complements modern commercial door systems and building aesthetics.
  • Code Compliant Operation: Engineered to meet life safety and accessibility requirements for commercial exit device applications.
  • Reliable Performance: Precision-manufactured components ensure consistent operation and long-term reliability in demanding environments.
  • Comprehensive Support: Backed by manufacturer installation templates and technical documentation for professional installation.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent exit device trim products deliver professional-grade reliability with precision manufacturing and commercial-grade construction. The PE80 Series represents proven engineering designed for demanding commercial applications where dependable performance and code compliance are essential. Backed by comprehensive manufacturer support including installation templates and technical documentation for reliable field installation.

Product Specs

Series:
PE80Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Device Trim
Product Type:
Exit Devices - Mortise
Subcategory:
Exit Device Trim
Commercial/Residential:
Commercial
Lock Function:
Passage
Grade:
Grade 1
Model Series:
PE80Series
Product Model:
828
Product Function:
Passage
Product Category:
Exit Devices and Trim
Collection:
PE80 Series
Department:
Door Hardware

Sargent 828 FLL 3 – Frequently Asked Questions

1) What is the Sargent 828 trim and does it lock the door from outside?
The 828 is the outside thumbpiece trim for Sargent PE80 Series exit devices, and its function is passage. Passage means the thumbpiece always retracts the latch from the outside, so there is no key and no locking from the pull side. Anyone outside can enter at any time. If you need the outside side to be lockable or keyed, the 828 is the wrong trim for the opening.
2) Will the Sargent 828 thumbpiece trim work on any exit device, or only Sargent?
Only Sargent PE80 Series exit devices. The 828 is built to that series' trim prep and mounting pattern, so it is not a trim you can hang on a Von Duprin, Falcon, or Adams Rite device. If you are trimming another brand's mortise exit device, order that brand's own trim.
3) Do I have to specify handing when ordering the Sargent 828 trim?
Yes, handing is required. The 828 is ordered RHR or LHR, and a thumbpiece trim is not field reversible the way some device chassis are. Stand outside the door, on the pull side: if the hinges are on your right it is right hand reverse (RHR), hinges on the left is left hand reverse (LHR).
4) Does the Sargent 828 trim come with the exit device, or do I order the device separately?
Separately. The 828 is trim only, the outside thumbpiece assembly. You still need the PE80 Series exit device itself for the push side of the door. Buying trim alone is normal when you are replacing damaged or mismatched outside trim on a device that is otherwise fine.
5) I need the outside to be locked off after hours. Is passage thumbpiece trim the right choice?
No. Passage trim leaves the outside free at all times, so it cannot secure the opening. For a door that has to be locked off outside hours, you want a keyed or classroom function outside trim on the same PE80 device rather than the 828. If the whole device is being replaced anyway, a mortise exit device set up for classroom trim, like the Corbin Russwin ED5600AL, covers that requirement.
6) What is the difference between ordering Sargent 828 thumbpiece trim and buying an exit device like the Von Duprin 9875-3FT?
They are two different line items. The Sargent 828 is passage thumbpiece exit device trim for the PE80 Series - the exterior pull assembly that mounts on the outside face of the door and operates the device latch, ordered by handing (RHR or LHR) and in finishes from 03 Bright Brass, Clear Coated through 32D Satin Stainless Steel and BSP Black Suede Powder Coat. The Von Duprin 9875-3FT is the device itself: a 3 ft smooth case wide stile mortise exit device, Grade 1, non-handed, in the 98 & 99 Series. If the door already has a PE80 Series device and only needs exterior trim, the 828 is the part; if the door needs the push side hardware, that is a device purchase.
7) Which mortise exit device accepts passage lever trim instead of a thumbpiece?
The Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated mortise exit device that is exit only or used with classroom or passage lever trim, for 1-3/4 inch doors in the ED5000 Series wide stile family. That is the lever-operated route to the same passage result. The Sargent 828 gives passage operation through a thumbpiece rather than a lever, and is built for PE80 Series devices. Choose by which exterior actuation the opening calls for and by which device is already on the door - the trim is not interchangeable across brands.
8) Does specifying Sargent 828 trim cover a fire rated opening requirement?
The fire rating on an opening is carried by the exit device and the door assembly, not by the exterior trim. The Sargent 828 is a Grade 1 commercial passage thumbpiece trim for PE80 Series devices. Where the device itself must be fire rated, the Adams Rite 3300 Series is a Grade 1 fire rated wide stile mortise exit device for wood and hollow metal doors, and the Corbin Russwin ED5600AL is a Grade 1 3 hour fire rated mortise exit device. By contrast the Adams Rite 8300 Series and the Von Duprin 8875-3FT and 9875-3FT are listed non fire rated life safety devices. Confirm the device rating first, then match trim to that device family.

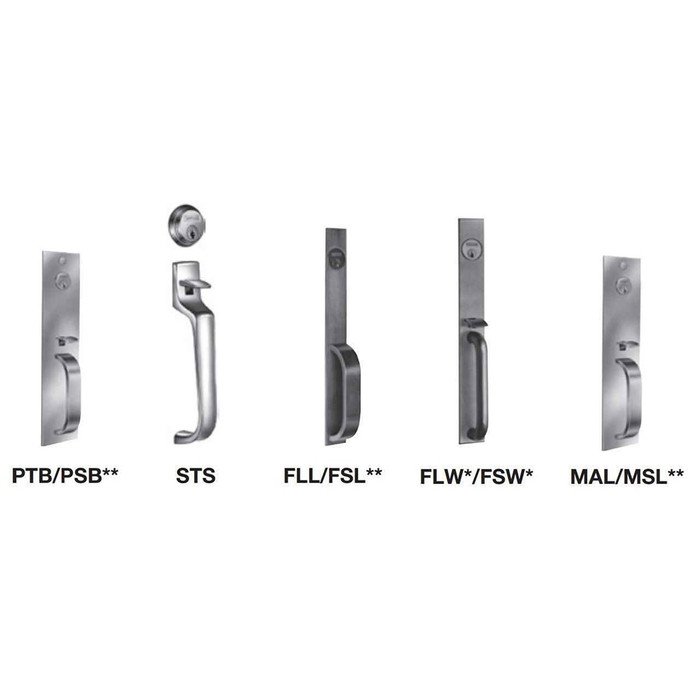

9) What is the difference between the FLL, FLW, MAL, PTB and STS options on Sargent 828 trim?
Those are the trim design (escutcheon and thumbpiece styling) choices on the 828: FLL, FLW, MAL, PTB and STS. All five are the same passage thumbpiece function, so the choice is about matching the look of the other openings in the building rather than about how the door operates. If you are adding a door to an existing Sargent job, pull the trim designation off one of the installed units and order the same one.
10) What finishes does Sargent offer on the 828 exit device trim?
Ten finishes: 03 bright brass clear coated, 04 satin brass clear coated, 09 bright bronze clear coated, 10 satin bronze clear coated, 10B dark oxidized satin bronze oil rubbed, 10BL dark oxidized satin bronze clear coated, 20D dark statuary bronze lacquered, 32 bright stainless steel, 32D satin stainless steel, and BSP black suede powder coat. For matching a building standard, 32D satin stainless is the usual commercial default and 10B is the common dark bronze on exterior entrances.
11) Is the Sargent 828 trim Grade 1 for a high traffic commercial entrance?
Grade 1, and specified for commercial use. That is the heaviest duty grade in the hardware standards and is what most institutional and government specs call for on main entrances, so the 828 will meet a Grade 1 line item on a drawing.
12) Thumbpiece trim or lever trim on an exit device, which should I use?
A thumbpiece like the 828 gives a fixed pull with a thumb lever above it, which takes abuse well on exterior entrances and is harder to hang on or wrench than a lever. Lever trim is what you use when the opening has to meet accessibility requirements for operable hardware, or when the building standard is levers throughout. Cross brand, a device such as the Corbin Russwin ED5600AL is set up to accept passage or classroom lever trim if lever is the direction you need to go.
13) My existing exit device is a mortise type. Is the 828 trim the right family for it?
The 828 is trim for mortise exit devices in the Sargent PE80 line, so the device type matches. The brand and series still have to match too. If the door carries a rim or vertical rod device, or another maker's mortise device such as a Von Duprin 8875 or a Falcon 25-M, the 828 will not mount to it.
14) We are standardizing entrances across a facility. Can the 828 match trim on doors that already have Sargent hardware?
If the other doors carry PE80 Series exit devices, yes. Match three things on the order: the trim design (FLL, FLW, MAL, PTB or STS), the finish code, and the handing of each individual door. Trim design and finish are usually building wide constants; handing changes door to door.
15) If the opening is a narrow stile aluminum door, does thumbpiece trim still apply?
Thumbpiece trim like the Sargent 828 is sized to the PE80 Series device and to the wider door face that device is set up for. On narrow stile aluminum openings the device selection changes first: the Adams Rite 8400 Series is a Grade 1 narrow stile mortise exit device built for aluminum doors, and the Von Duprin 5575-3ft is a Grade 1 narrow stile crossbar mortise lock exit device, field reversible, for 1-3/4 inch doors. Settle the device and stile type for the opening, then take the exterior trim that belongs to that device family.
16) What is the alternative if the door does not need any exterior trim at all?
Exit only devices skip the outside trim entirely - blank exterior, egress from the inside only. The Falcon 25-M-EO is a Grade 1 exit only mortise exit device, wide stile, for 1-3/4 inch doors, the BEST Precision 2301 is an exit only mortise exit device with heavy wrought construction in the 2300 Series, and the Detex 30 Series Advantex is a Grade 1 device only, exit only mortise lock exit device. The Sargent 828 exists for the opposite case: a PE80 Series opening that needs passage operation from the outside through a thumbpiece.
17) Does putting passage trim on the outside affect egress from inside?
No. Egress is controlled entirely by the push pad on the inside device, which always releases the latch. The 828 only handles entry from the pull side, and because it is passage it never locks that side either. Adding or changing outside trim does not change how people get out.
18) Is a crossbar device an equivalent swap for a push pad device when standardizing a building?
They differ in the actuation the user touches. The Von Duprin 8875-3FT is a wide stile crossbar mortise exit device, 36 inch, Grade 1, non-handed, and the Von Duprin 5575-3ft is a narrow stile crossbar version, field reversible. The Von Duprin 9475/9575 Impact Series is a Grade 1 wide stile mortise lock exit device with a recessed push pad, and the 9875-3FT is a smooth case wide stile push style device. Sargent 828 thumbpiece trim addresses only the exterior side of a PE80 Series opening, so the crossbar versus push pad choice is made on the device and does not change how the 828 is ordered - handing and finish.
