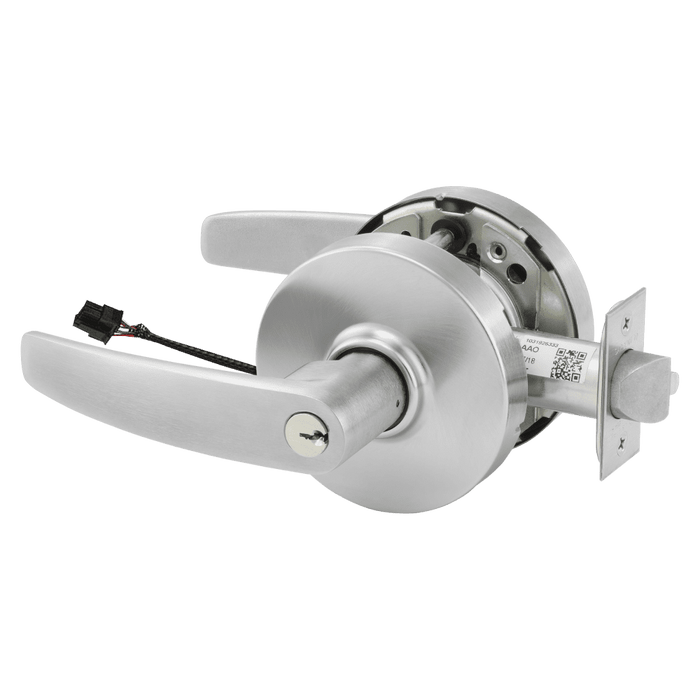

Sargent RX10XG7 Electromechanical Cylindrical Lever Lock with Field Selectable Fail Safe/Fail Secure 12/24VDC Operation

Sargent 10X-Line Grade 1 Electromechanical Cylindrical Lever Lock with Dual Voltage 12/24VDC Operation

Professional Grade 1 Electromechanical Access Control Solution

The Sargent 10X-Line electromechanical cylindrical lever lock delivers superior security performance with field selectable fail safe/fail secure operation and dual voltage 12/24VDC compatibility. This Grade 1 lock features L Rose design with LA keyway configuration, ASA strike, and integrated request to exit functionality. Engineered to exceed ANSI/BHMA requirements by up to 20 times, this lock withstands more than 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull while maintaining reliable operation under extreme conditions.

Professional Features & Benefits

• Exceptional Durability Testing: Withstands more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements) and 1,600 lbs offset lever pull (8x ANSI/BHMA requirements) for superior vandal resistance.
• Field Selectable Operation: 12/24VDC dual voltage compatibility with field selectable fail safe/fail secure configuration allows adaptation to specific security requirements without inventory complications.
• Heavy-Duty Performance: Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind conditions.
• Impact Resistance: Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements) providing exceptional protection against forced entry attempts.
• Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core, compatible with several security key systems including Degree, Signature, and KESO.
• Innovative Push/Turn Design: Push/turn button design prevents damage from door stops and walls while providing reliable interior operation.
• Anti-Microbial Option: Optional Microshield® antimicrobial coating available for healthcare and high-touch applications requiring enhanced hygiene protection.
• Comprehensive Function Range: 26 mechanical functions offered with 14 finish options and multiple lever designs for versatile application requirements.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24VDC voltage and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure/fail-safe selection per application requirements.
6. Restore power and test all functions including normal operation, request to exit functionality, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Government and Municipal Buildings
• Multi-Tenant Residential Properties
• Emergency Exit Compliance

Anti-Microbial Option

Optional Microshield® antimicrobial coating is available for healthcare and high-touch applications requiring enhanced hygiene protection, providing additional safety in environments where cleanliness is critical.

Why Choose Sargent Quality?

Sargent 10X-Line cylindrical lever locks deliver professional-grade reliability with rigorous testing that surpasses ANSI/BHMA requirements by more than 20 times, withstanding over 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull. The innovative lockbody design provides maximum resistance to vandalism and malicious attacks while maintaining compatibility with existing key systems. Engineered for demanding commercial applications where dependable performance and superior security are essential.

Product Documentation & Resources

• [Catalog] SARGENT Full Line Catalog
• [Catalog] SARGENT 10 Line Bored Lock Catalog
• [Installation Guide] 10X Line Cylindrical Lockset Installation Instructions
• [Installation Guide] 10X Line Electrified Bored Lock Installation Instructions
• [Parts Manual] 10X Line Parts Manual
