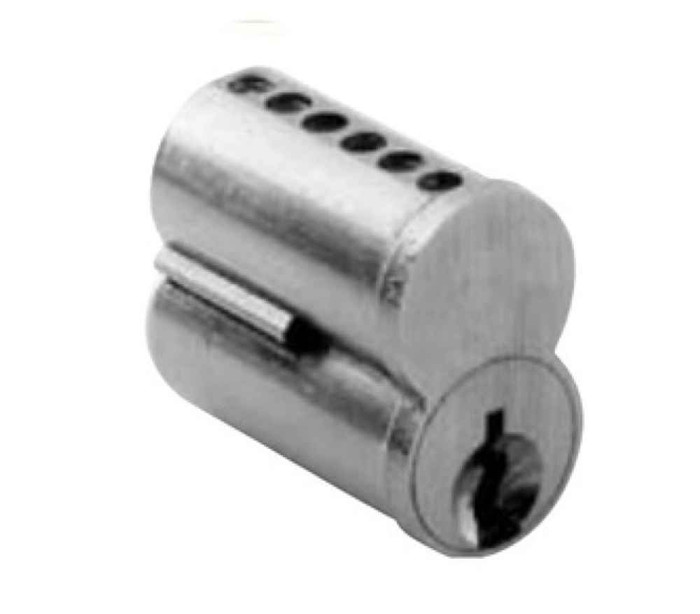

Sargent 117P-7300B Small Format Interchangeable Core Cylinder 7-Pin Master Keyed with Nickel Silver Keys

Sargent 117P-7300B Small Format Interchangeable Core Cylinder 7-Pin Master Keyed with Nickel Silver Keys

(No reviews yet) Write a Review

Model: SGT-117P-7300B 4A 4
From the Signature Key System Collection
$192.79
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$192.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent XC Small Format Interchangeable Core Cylinder 7-Pin Master Keyed with Nickel Silver Keys

Professional Small Format Interchangeable Core Solution

The Sargent XC Small Format Interchangeable Core Cylinder delivers professional master key system capability in a compact 7-pin configuration. This interchangeable core features the distinctive Sargent logo face and comes supplied with two nickel silver keys as standard. Designed exclusively for use in Sargent hardware systems, this core provides reliable keying control for commercial applications requiring master key access.

Professional Features & Benefits

  • 7-Pin Master Key Configuration: Advanced 7-pin tumbler system provides enhanced security and expanded master keying possibilities for complex access control requirements.
  • Small Format Design: Compact interchangeable core format allows for easy rekeying and key system management without hardware removal.
  • Standard Key Package: Supplied with two nickel silver keys as standard for immediate installation and operation.
  • Sargent Logo Face: Distinctive branded face ensures proper identification and confirms genuine Sargent quality construction.
  • Exclusive Sargent Compatibility: Engineered specifically for use in Sargent hardware systems with verified compatibility across the product line.
  • Multiple Finish Options: Available in finishes 4, 15, and BSP to match existing hardware and architectural requirements.
  • Master Key System Integration: Compatible with Control 11X7272 CTL and Master key 11X7282BMK for comprehensive key system management.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Verify compatibility with existing Sargent hardware by consulting individual product catalogs for core availability and specifications.
  2. Remove existing core from lock housing using appropriate control key or removal tool per manufacturer instructions.
  3. Insert new interchangeable core into lock housing ensuring proper alignment and full seating of the core mechanism.
  4. Test core operation with provided keys to verify smooth insertion, rotation, and withdrawal throughout the full operating cycle.
  5. Program master key system hierarchy if integrating with existing key control systems using compatible control and master keys.
  6. Document core installation and key assignments per facility key control procedures. Refer to manufacturer documentation for complete installation and key system setup instructions.

Professional Applications

  • Commercial Office Building Master Key Systems
  • Educational Facility Access Control
  • Healthcare Institution Security Management
  • Government and Municipal Building Key Control
  • Multi-Tenant Residential Properties
  • Industrial Facility Restricted Access Areas
  • Retail Chain Store Key Management

Why Choose Sargent Quality?

Sargent XC interchangeable core cylinders provide professional-grade security with precision-manufactured 7-pin tumbler systems and genuine nickel silver keys. The distinctive Sargent logo face and exclusive hardware compatibility ensure reliable integration with existing Sargent security systems. Engineered for demanding commercial applications where dependable master key control and easy rekeying capability are essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Signature Key System
Series:
7300B Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-117P-7300B 4A 4 – Frequently Asked Questions

1) Will a Sargent 7300B small format interchangeable core work in non-Sargent locks?
No. The 117P-7300B core is built for Sargent hardware only, so it drops into Sargent housings prepped for a small format interchangeable core and nothing else. If your openings run another manufacturer's SFIC prep, this is the wrong core. Before ordering, confirm the Sargent device you are re-coring is an interchangeable core version rather than a conventional cylinder version.
2) What do I have to specify when ordering a Sargent 117P-7300B interchangeable core?
Three things. Keyway, either 4A or 4B. Finish, either 04 satin brass clear coated, 15 satin nickel plated clear coated, or BSP black suede powder coat. And keying, where you pick standard keying, KD keyed different, or KA keyed alike. Every keyway is offered in all three finishes. Get the keyway wrong and the core will not accept the keys already in your system.
3) Do I need a control key to swap out a Sargent interchangeable core?
Yes, and it is not included. The core comes with two nickel silver keys, which are operating keys, not the control key that releases the core from the housing. Sargent lists Control 11X7272 CTL for this key system. Without it you cannot pull the existing core, so order or locate the control key before you schedule the swap.
4) Can I add the Sargent 117P-7300B core to a master key system I already run?
That is what it is built for. It is a 7-pin core in the Sargent Signature Key System, master keyed, and it works with Control 11X7272 CTL and Master key 11X7282BMK. The requirement is that your existing system is Sargent Signature on the 4A or 4B keyway and that your keying schedule is issued to match. Send your key system records with the order so the core is cut into the right position in the hierarchy rather than arriving on a stray bitting.
5) What is the difference between keying a Sargent core KA and KD when I am doing a whole building?
Keyed alike means every core you order on that line operates from the same change key, which is what you want for a run of doors one person needs to open with one key, say a mechanical suite or a tenant's own doors. Keyed different gives each core its own change key, so each tenant or office only opens their own. Both sit under the master key above them, since the 117P-7300B is a 7-pin master keyed core. Pick per group of doors, not per building.
6) Why choose an interchangeable core instead of a standard cylinder for a school or hospital?
Rekeying. With a small format interchangeable core you pull the core with a control key and drop a new one in, so a lost key on a wing of classrooms or patient rooms is a two minute job per door with no lock disassembly and no door off its hinges. A conventional cylinder has to be taken apart and repinned, usually by a locksmith on site. For a facility that turns keys over often, the core format is the reason to spend on it. A conventional cylinder is the simpler choice on a handful of doors that rarely change.
7) Is a 7-pin Sargent core interchangeable with a 6-pin one in the same housing?
Physically the small format housing takes the core, but the keying is the deciding factor: the 117P-7300B is a 7-pin core, and a 7-pin system uses keys cut on seven positions. Mixing pin counts in one system means the master key hierarchy has to be built to carry it. If your building is running 6-pin Sargent cores today, treat the move to 7-pin as a key system change and have the schedule reissued rather than a like for like swap.
8) I am replacing a damaged core on one Sargent door. Do I have to rekey the rest of the building?
No. Order a single 117P-7300B core in the same keyway, 4A or 4B, and have it keyed into your existing Signature system, and the change key and master already in circulation keep working on that door. Nothing else on the building is touched. This is a replacement part, so the housing, lever, and door prep all stay as they are.
9) Which finish do I order to match the Sargent lever trim already on my doors?
Three finishes are offered on the 117P-7300B core: 04 satin brass with a clear coat, 15 satin nickel plated with a clear coat, and BSP black suede powder coat. Match to the lock trim, not the door. 15 is the usual pairing with satin chrome and satin nickel hardware, 04 with brass, and BSP with black hardware. All three are available in both the 4A and 4B keyways.
10) How many keys come with a Sargent 117P-7300B core, and are they brass or nickel?
Two nickel silver keys ship with each core. Nickel silver is the harder key blank material, which matters on a master keyed system where one key sees heavy daily use across many doors. If you need more than two per core, add cut key blanks in the matching 4A or 4B keyway to the order rather than assuming a spare set is in the box.
