SATCO Lighting S11627R1 12W LE...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$36.95

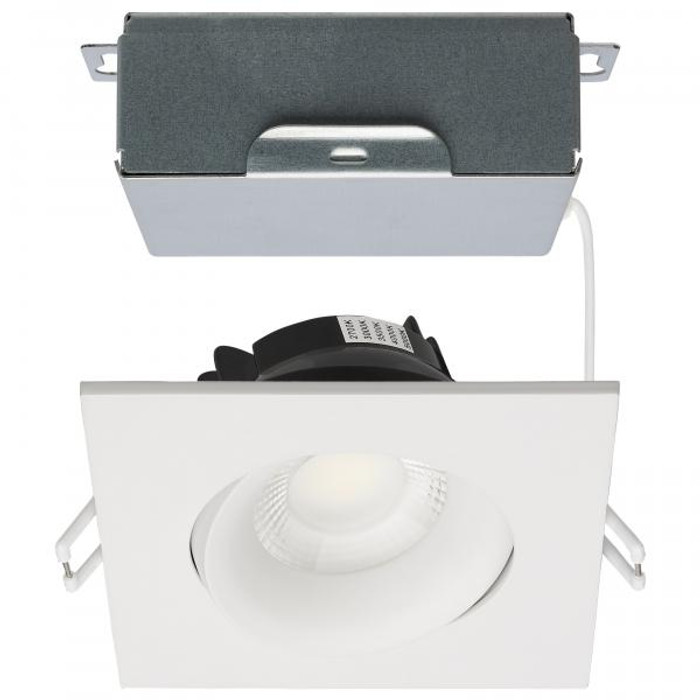

Satco Lighting SAT-S11627R1 12 Watt LED Direct Wire Downlight - Gimbaled - 3.5 Inch - CCT Selectable - Square - Remote Driver - White Finish - 840 Lumens - 120 Volt

SATCO Lighting S11627R1 12W LED Direct Wire Downlight, Gimbaled, 3.5in, CCT Selectable, Square, Remote Driver, 840 Lumens, 120V

(No reviews yet) Write a Review

Model: S11627R1
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$36.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SATCO Lighting S11627R1 12W LED Direct Wire Downlight, Gimbaled, 3.5in, CCT Selectable, Square, Remote Driver, 840 Lumens, 120V

12 Watt LED Direct Wire Downlight - Gimbaled - 3.5 Inch - CCT Selectable - Square - Remote Driver - White Finish - 840 Lumens - 120 Volt

  • Warranty: 5 Year Limited - Fixtures
  • Dimensions: L:4.38" W:4.38" H:2.10"

    • Manufacturer Resources

    Spec Sheet

    Product Specs

    Avg Rated Hours:
    50000
    CA Web Text:
    California T24 Listed
    CCT Selectable:
    Yes
    Dimmable:
    Yes
    FCC Compliant:
    Yes
    Lamp Base:
    Integrated
    Lumens:
    840L
    Operating Frequency:
    60Hz
    Product Type:
    Remote Driver LED Downlight
    RoHS Compliant:
    Yes
    Subcategory:
    Recessed
    Technology:
    LED
    Total Wattage:
    12W
    Warranty:
    5 Year Limited - Fixtures
    Wattage Selectable:
    No
    Product Group:
    Indoor Lighting
    Product Subgroup:
    Retrofit
    Location Rating:
    Wet
    Certification:
    cETLus - Listed
    Base Material:
    Aluminum
    Location Indoor/ Outdoor:
    Indoor;Outdoor
    Instructions:
    https://assets.satco.com/dj18eqo18/image/upload/v1713463030/products/S11627R1/S11627R1_Instructions.pdf
    Specifications:
    https://media.satco.com/specsheets/pdf/S11627R1.pdf
    Product Voltage:
    120V
    Product Length:
    4.38"
    Light Temperature:
    2700K/3000K/3500K/4000K/5000K
    Product Dimension:
    L:4.38" W:4.38" H:2.10"
    Mounting Method:
    Recessed Direct Wire
    Product Shape:
    Square
    Product Height:
    2.1"
    Product Category:
    Fixtures
    Product Width:
    4.38"
    Product Weight:
    1.01 lb
    Product Material:
    Aluminum

    Satco Lighting S11627R1 – Frequently Asked Questions

    1) How do I set the color temperature on the Satco S11627R1, and can I match the 3000K fixtures already in my building?
    Color is selected on the fixture itself, with 2700K, 3000K, 3500K, 4000K and 5000K on the selector. You stock one part number and set it to match whatever is already in the space, which is what makes CCT selectable worth it for a property manager running mixed lighting across floors. Wattage is not selectable, it is fixed at 12W and 840 lumens.
    2) Does the Satco S11627R1 downlight meet California Title 24?
    California T24 Listed, and cETLus Listed, FCC compliant and RoHS compliant. That covers the paperwork on a California residential or commercial permit set where a T24 listed luminaire is required.
    3) Can I aim the Satco S11627R1 at artwork or a wall, or does it only shine straight down?
    It is a gimbaled downlight, so the optic tilts inside the square 4.38 inch trim and can be aimed off vertical for wall wash, artwork, or sloped ceilings. Straight-down fixed downlights cannot do that. Output is 840 lumens from 12 watts.
    4) Is the Satco S11627R1 dimmable, and what voltage does it run on?
    Dimmable, on a 120V 60Hz circuit. Since the driver is remote, the dimmer has to be matched to that driver, not to the light head, so confirm the driver you are pairing it with before you spec the control.
    5) Can I replace the bulb in the Satco S11627R1, or is the whole downlight thrown away when it fails?
    There is no lamp to change. The LED is integrated, rated 50,000 average hours, so maintenance is a fixture swap rather than a relamp. For an MRO or multi-family buyer that is the point of it: no ladder trips for lamp changes over the service life, and the aluminum body handles the heat.
    6) How many Satco S11627R1 downlights can I put on one 120V 20 amp circuit?
    Each head draws 12 watts at 120V, so the light heads themselves are a trivial load. What governs your count is the remote drivers, since each driver has its own rated load and the number of heads it will carry. Size the circuit off the driver schedule, not off the 12W head figure.
    7) What finish does the Satco S11627R1 square gimbal downlight come in?
    White only, one configuration, MPN S11627R1. If you are standardizing trim color across a floor plate there is no black or brushed nickel option in this model to mix up on the order.
